Ableconn IU3-DT132 M.2 NGFF to U.3 Adapter - Turn a M.2 PCIe 4.0 x4 NVMe SSD to a 2.5-inch U.3 SFF-TA-1001 SSD Drive

Ableconn IU3-DT132 M.2 NGFF to U.3 Adapter - Turn a M.2 PCIe 4.0 x4 NVMe SSD to a 2.5-inch U.3 SFF-TA-1001 SSD Drive

  • Product Specifications:

    • Dimensions 4.0 x 2.8 x 0.3 in / 100 x 70 x 7 mm
    • Weight 1.3 ounces / 37 g
    • Compatibility OS independent; No driver installation required
    • Supported System Windows 11/10/8 and later, Windows Server 2012 R2 and later, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support NVMe SSD
    • Certification EE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

NOTE: this product is NOT compatible with SATA. U.3 (SFF-8639 connector) is NOT SATA.

*** SATA Host can NOT work with this PCIe NVMe Based Adapter

*** SATA Based M.2 SSD module can NOT work with this PCIe NVMe Based Adapter





Feature Bullets



  • Turn a M.2 NVMe SSD to a 68-pin SFF-8639 U.3 SFF-TA-1001 PCIe-NVMe Mode SSD. Open frame aluminum housing design providing excellent heat dissipation for M.2 NVMe SSD
  • Compatible with most M.2 NVMe solid state drives
  • Windows 11/10/8 and later, Windows Server 2012 R2 and later; Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support NVMe.
  • Fully RoHS compliant. High quality product. Made in Taiwan.



Product Description

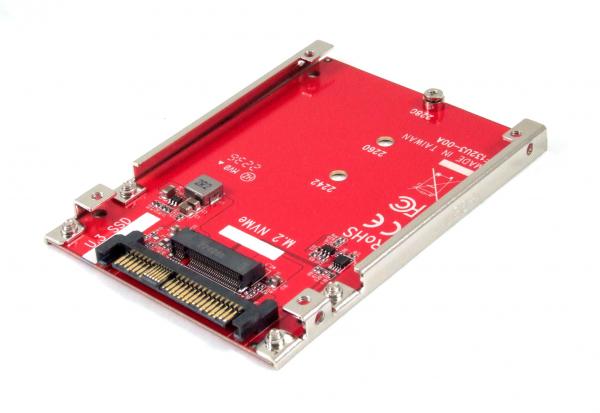

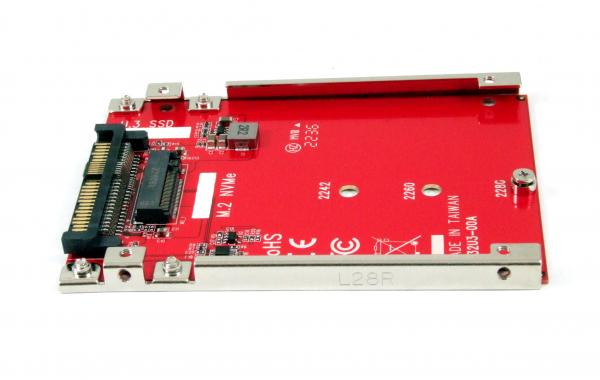

 The Ableconn IU3-DT132 turns a regular M.2 NVMe SSD into a 68-pin 2.5” 7mm U.3 SFF-TA-1001 PCIe-NVMe SSD drive. It provides excellent heat dissipation for M.2 SSD with the open aluminum frame design.


Features



  • Connector:
    •  1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe-NVMe SSD
    •  1x U.3 SFF-TA-1001 interface (SFF-8639, 68 Pin) male (NOT U.2 interface!)



  • Software:
    • No driver installation required
    • Windows 11/10/8 and later, Windows Server 2012 R2 and later, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support NVMe SSD



  • Convert PCIe-NVMe M.2 SSD to U.3 SFF-TA-1001 PCIe-NVMe Mode 2.5” 7 mm SSD
  • Compliant with PCI Express 4.0 x4 Lane "
  • Support M.2 80mm, 60mm PCIe Gen4 x4 NVMe base SSD"
  • 68Pin SFF-8639 NVMe U.3 SFF-TA-1001 PCIe interface, not U.2 interface
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 SSD
  • Support dual-sided SSD module 1.5mm component height on the top and bottom side
  • Include 2.5“ drive metal frames with 8 mounting holes and 4 HDD screws
  • Provide 3.3V/5A high power to M.2 NVMe SSD
  • Dimensions: 4 x 2.8 x 0.3 in / 100 x 70 x 7 mm
  • Fully RoHS compliant
  • Made in Taiwan



Package Contents



  • Ableconn M.2 NVMe SSD to U.3 2.5-Inch SSD Adapter
  • Mounting screw set (1x SSD latch screw, 4x drive mount screws)
