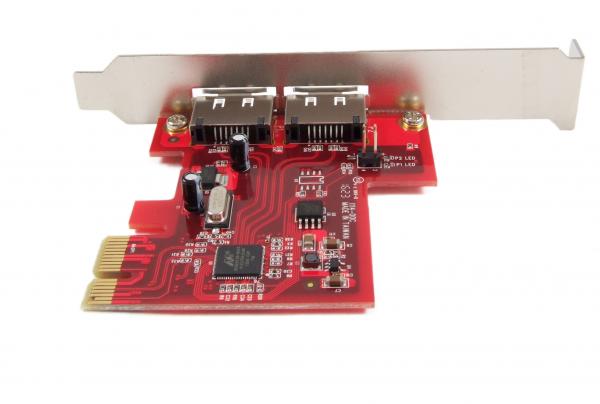

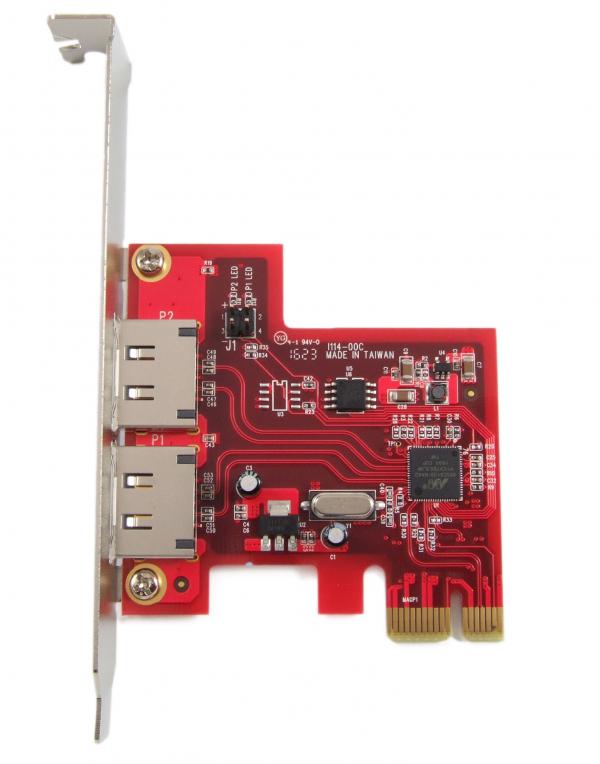

Ableconn PEX-SA114 2 Port eSATA 6G PCI Express Host Adapter Card - AHCI 6Gbps SATA III PCIe 2.0 Expansion Card - Marvell 88SE9128 Chipset

Ableconn PEX-SA114 2 Port eSATA 6G PCI Express Host Adapter Card - AHCI 6Gbps SATA III PCIe 2.0 Expansion Card - Marvell 88SE9128 Chipset

  • Product Specifications:

    • Dimensions 2.7 x 2.8 x 0.7 in / 68 x 72 x 18 mm
    • Weight 1.4 ounces / 40 g
    • Capacity PCIe 2.0 x1 Lane; Up to 6 Gbps (SATA III)
    • Chipset MARVELL 88SE9128C0
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on Windows 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with Marvell 88SE9128. Supports Hardware RAID 0 and 1 modes
  • Support Port Multiplier FIS-based and Command-based switching
  • No driver installation is required on Windows 10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.



Product Description

Add two SATA 6G ports with up to 6 Gps data rate to your computer.



Specification

  • Connector:
  • - 2 x eSATA (7 pin; Data) Plug
  • Chipset: MARVELL 88SE9128C0
  • Software:
    • No driver installation is required on Windows 10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Drivers are available for Windows XP



  • Data transfer rate:
    • Up to 6 GBps



  • 6Gbps eSATA III External 2 Ports
  • Hardware RAID controller to offload host CPU for max performance
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with 5Gbps PCI Express 2.0
  • Fully compliant with Serial ATA specifications?3.0 transfer rate of 6Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports Non-Raid, Hardware RAID 0, 1 for HDD & SSD
  • Supports Non-Raid mode for Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Hotplug, and Native Command Queuing (NCQ)
  • Supports one SATA FIS-based or Command-based Port Multiplier
  • LED Pin headers for LED activity indicators for each port
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • BIOS on board supports Windows booting
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn 2 Port eSATA 6G PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   How can I tell the PEX-SA114 is recognized by the computer?
Answer:
PEX-SA114 is compliant with AHCI and is supported by Windows built-in AHCI driver.
Please check "IDE ATA/ATAPI controllers" of Device Manager. Click Details tab of "Standard SATA AHCI Controller Properties" (see screenshot below)
The Hardware Ids:  PCIVEN_1B4B&DEV_9128
