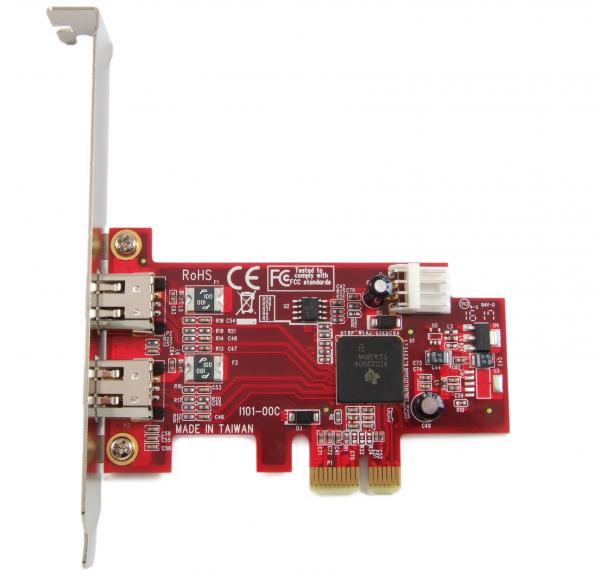

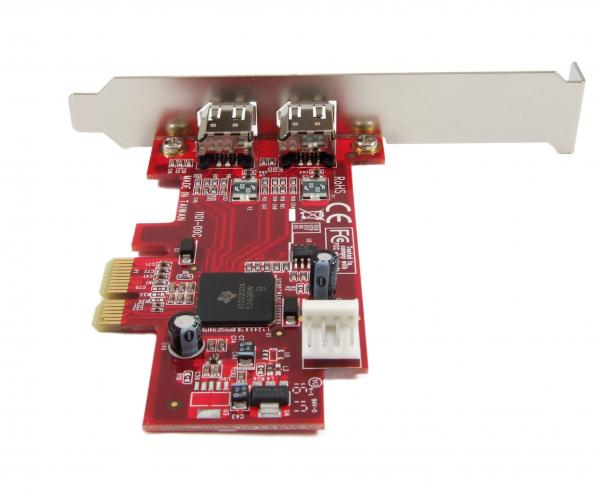

Ableconn PEX-FW101 1394a 2-Port PCI Express (PCIe) Low Profile FirwWire Host Adapter Card - TI XIO2200 Chipset

Ableconn PEX-FW101 1394a 2-Port PCI Express (PCIe) Low Profile FirwWire Host Adapter Card - TI XIO2200 Chipset

  • Product Specifications:

    • Dimensions .6 x 2.4 x 0.7 in / 91 x 56 x 18 mm
    • Weight 1.6 ounces / 44 g
    • Capacity 1394a FireWire
    • Chipset TI XIO2200
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Add two 1394a FireWire ports with up to 400 Mps data rate to your Mac Pro or Windows system.
  • Built with TI XIO2200 chipset. Fast and reliable FireWire expansion.
  • Low Profile PCIe Form Factor. Include both Low Profile and Regular Size PCIe brackets
  • Compliant with Provisions of IEEE 1394a-2000 and 1394-1995 Standard
  • High quality. Fully RoHS compliant. Made in Taiwan.



Product Description

Add two 1394a FireWire ports with up to 400 Mps data rate to your Mac Pro or Windows system.

Specification

  • Connector:
    • 2 x 1394a-2000 (6 pin)
  • Chipset: TI XIO2200
  • Software:
    • No driver installation is required on Windows and Mac systems
  • Data transfer rate:
    • Support 1394 data transfer rate up to 400 Mbps
  • 1-lane 2.5Gbps PCI Express host interface
  • Compliant with PCI Express Specification, revision 1.0a
  • Fully Supports Provisions of IEEE 1394a-2000 and 1394-1995 Standard
  • Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1
  • Two External 6Pin 1394a-2000 Fully Compliant Ports at S400, S200, S100 speed
  • 1394 12V bus power automatically from PCIe bus or PC power supply through Molex 4Pin connector
  • Supports Plug and Play
  • Low Profile PCIe Form Factor

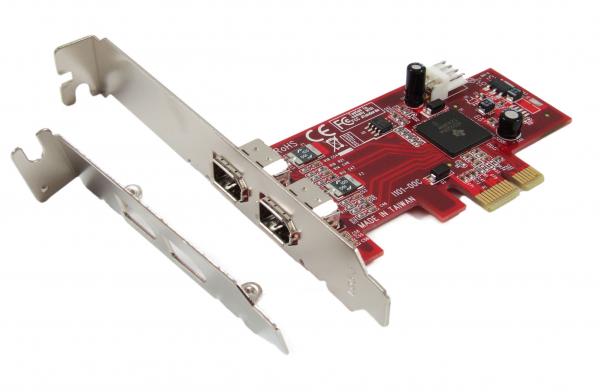

  • Include both Low Profile and Regular Size PCIe brackets
  • Fully RoHS compliant.
  • Made in Taiwan



Package Contents

  • Ableconn 1394a 2-Port PCIe FireWire Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   Will this card work on Windows 10?
Answer:

Yes, it works on Windows 10
