Ableconn ISAT-M2SA M.2 NGFF SATA SSD to 2.5-Inch SATA Adapter with Aluminum Frame Bracket

Ableconn ISAT-M2SA M.2 NGFF SATA SSD to 2.5-Inch SATA Adapter with Aluminum Frame Bracket

  • Product Specifications:

    • Dimensions 3.9 x 2.8 x 0.3 in / 100 x 70 x 7 mm
    • Weight 1.5 ounces / 42 g
    • Capacity Up to 6 GBps (SATA III)
    • Compatibility OS independent; No driver installation required
    • Supported System Windows, Macs, and Linux
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

The adapter can take M.2 SATA SSD in length of 42, 60, and 80 mm.



Benchmark:







Feature Bullets



  • Convert a M.2 SATA SSD into a 2.5" SATA 6G (SATA III) drive. It's the best solution that converts M.2 SATA SSD as normally standard 2.5 inch 7mm height SATA Solid State Drive!
  • Open frame aluminum housing dessign providing excellent heat dissipation for M.2 SATA SSD
  • Compatible with most M.2 SATA solid state drives such as the SAMSUNG 850 EVO M.2
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. High quality product. Made in Taiwan


Product Description


The Ableconn ISAT-M2SA let you convert a M.2 SATA SSD into a standard 2.5" SATA 6G (SATA III) capable drive. It provides excellient heat dissipation for M.2 SATA SSD drive with the open aluminum frame design.



Specification

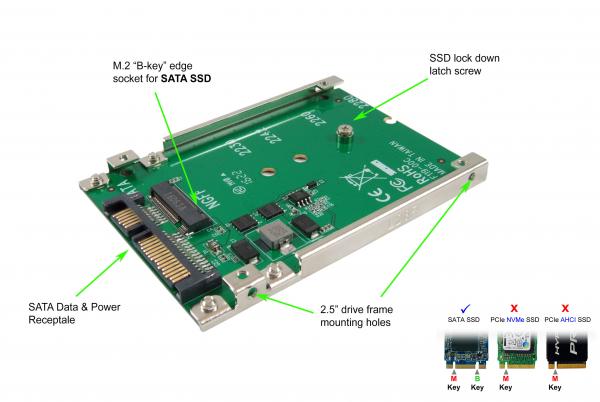

  • Connector:
    • 1x B-key (type 2280-D5-B) M.2 socket for M.2 NGFF SATA SSD
    • 1 x SATA Data & Power (7+15 pins) Receptale
  • Data transfer rate:
    • Up to 6 GBps (SATA III)
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux
  • Convert M.2 NGFF SATA based SSD to standard 2.5" SATA drive Form Factor
  • Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 SSD
  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side
  • 100% Compatible with 2.5" SATA drive mechanical spec
  • 22 pin SATA (Signals and Power) male connector on board
  • M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.
  • Includes 2.5 " drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimension of PCBA with 2.5" frame : 100.45mm x 69.85mm x 7mm
  • SSD & PCBA power from SATA 5V input
  • Provides M.2 SSD Max 3.3V/4A power source
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn ISAT-M2SA M.2 SATA SSD to 2.5in SATA Drive Converter
  • Mounting screw set (1x SSD latch screw, 4x drive mount screws)
