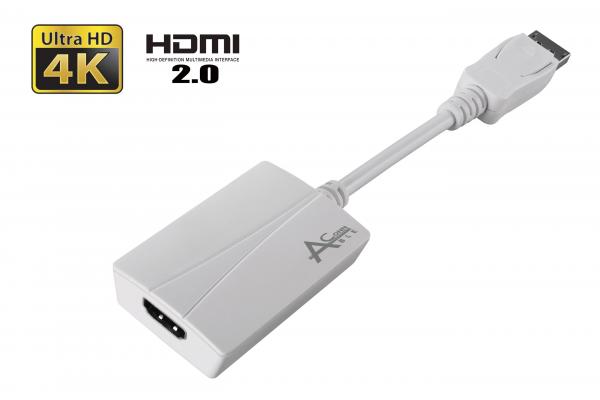

Ableconn DP-HD20AW DisplayPort 1.2 to HDMI 2.0 Active Adapter - DP 1.2 to HDMI 2.0 up to 4K 4096x2160@60Hz

Ableconn DP-HD20AW DisplayPort 1.2 to HDMI 2.0 Active Adapter - DP 1.2 to HDMI 2.0 up to 4K 4096x2160@60Hz

  • Product Specifications:

    • Dimensions 2.6 x 1.6 x 0.6 in / 60 x 39.7 x 16 mm ; cable length 2.4in / 60 mm
    • Capacity HDMI 2.0 up to 6 Gbps (600MHz TMDS Clock)

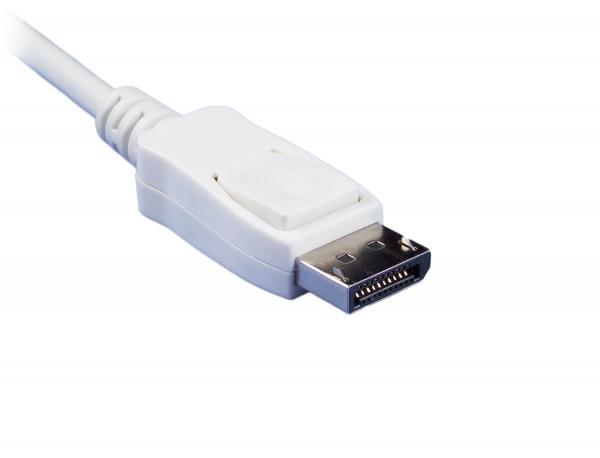

    • Input DisplayPort male
    • Output HDMI female (Type A)
    • Color White
    • Compatibility OS independent; No driver installation required
    • Certification FCC, CE


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • The active adapter connects a DisplayPort equipped Laptop or Desktop to an HDTV, projector, or display with HDMI input and supports up to 4K 4096x2160@60Hz resolution.
  • Built with Parade PS176 chipset that enables active protocol conversion from DisplayPort to HDMI 2.0 and ensures AMD Eyefinity compatible.
  • Support resolutions up to Cinema 4K 4096x2160@60Hz, UHD 3840x2160@60 Hz. Note: system requires DisplayPort 1.2 controller or Thunderbolt 2 controller for 4K resolution.
  • Plug & Play without software driver installation. Low power consumption No external power adapter required.
  • Built with high quality cable and over molded strain relief design to ensure superior flex life, tensile strength, and moisture protection.


Product Description

The Ableconn DP-HD20AW is a high quality active adapter which provides an easy and cost-effective solution for connecting an HDMI display such as monitor, projector, or HDTV to your DisplayPort equipped computers. It supports displays of up to 3840x2160@60 Hz HDTV or 4096x2160@60 Hz PC graphics and is ideal for your office, home entertainment display, conference rooms, and more.


Specifications

  • Input: DisplayPort male
  • Output: HDMI Type-A female
  • Built with Parade PS176 chipset.
  • Active converter, AMD Eyefinity compatible.
  • Audio: 7.1 Surround Sound
  • DisplayPort 1.2 and HDMI 2.0 compliant up to 6 Gbps (600MHz TMDS Clock)
  • Support resolutions up to 4K UHD 3840 x 2160@60Hz 24 bit color
  • Supported Resolutions:
    • PC: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1360x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2048x1152, 2048x1536, 2048x2160, 2560x1080,2560x1440, 2560x1600, 3840x2160@60Hz , 4096x2160@60Hz
    • HDTV: 480i, 576i, 480p, 576p, 1080i, 1080p, 2160p@60Hz
  • Certification: FCC, CE
  • Can only convert signal from DisplayPort to HDMI. This is not a bi-directional adapter.

Note: system requires DisplayPort 1.2 controller or Thunderbolt 2 controller (the latest Mac systems) for 4K resolution display.


Package Contents

  • Ableconn Active DisplayPort to HDMI Adapter

Customer FAQ

Q 1 .   Is the latest firmware available?
Answer:

Yes, the PS176 latest firmware version 0x07_0x26 is available from the link.

Q 2 .   Does it support HDR imaging?
Answer:
No, DP-HD20AW adapter does not support HDR imaging (High Dynamic Range). DisplayPort 1.4 and HDMI 2.0a is the minimum specification for supporting HDR.
Please refer to the following link for HDR with DP 1.4:
