Ableconn USBC-H113 USB-C to HDMI up to 4K UHD with PD Charging Pass-Through Adapter

Ableconn USBC-H113 USB-C to HDMI up to 4K UHD with PD Charging Pass-Through Adapter

  • Product Specification:

    • Dimensions 2.2 x 1.3 x 0.5 in / 55 x 33 x 12.5 mm ; cable length 2.4in / 60 mm
    • Weight 0.8 ounces / 22 g
    • Input USB-C male (DisplayPort Alt Mode for USB Type-C)
    • Output HDMI female (Type A), USB-C power pass-through input female
    • Color White
    • Compatibility OS independent; No driver installation required
    • Supported System MacBook Pro 2016, MacBook Retina12-inch 2015, Chromebook Pixel 2015, Dell XPS with Thunderbolt 3 (late 2015), and laptops, tablets, or PC systems that support DisplayPort Alt Mode video output over USB-C
    • Certification FCC, CE
  • United States

Product Description

Feature Bullets

  • Connect a MacBook Pro 2016, MacBook Retina 12" 2015/2016, Chromebook Pixel 2015, or laptop with USB-C or Thunderbolt 3 port to a HDMI display or projector using "DisplayPort over USB-C" technology with USB-C Power Delivery pass-through charging capability.
  • Comply with VESA the DisplayPort Alt Mode for USB Type-C Standard. CE, FCC certified.
  • Astonishing picture quality with Ultra HD video resolutions up to 4K UHD resolution and High Definition Audio
  • Requires USB-C port that supports "DisplayPort Alt Mode" (Note: Not all USB-C ports support Alt Mode) Compatible with Thunderbolt 3 port. Plug & Play, no software driver installation required. Compatible with Mac OS X, Windows, Chrome OS, Linux systems.
  • Compatible with MacBook Pro 2016, MacBook Retina12-inch 2015, Chromebook Pixel 2015, Dell XPS with Thunderbolt 3 (late 2015), and laptops, tablets, or PC systems that support DisplayPort Alt Mode video output over USB-C.


Product Description

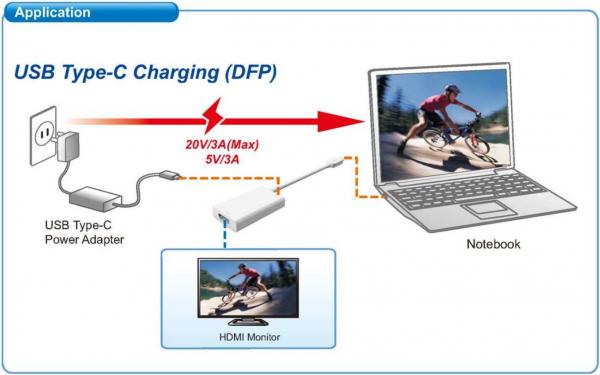

The Ableconn USBC-H113 adapter allows you to connect a 2016 MacBook Pro, MacBook Retina 12" 2015/2016, Chromebook Pixel 2015, or laptop with USB-C to a HDMI display or projector and support up to 4K 3840x2160 resolution with USB-C Power pass-through charging capability.

Specifications

  • Connector:

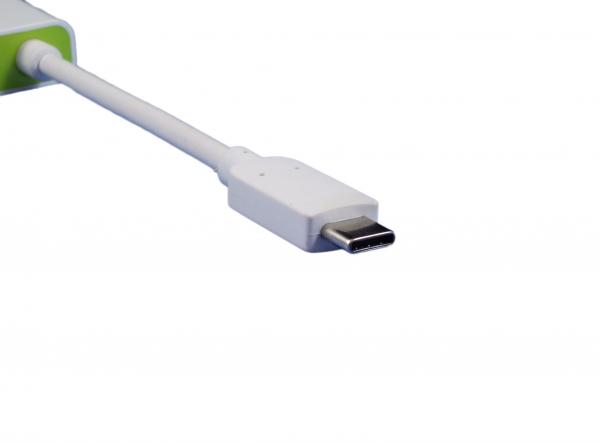

    • 1 x USB-C, male (Upstream)

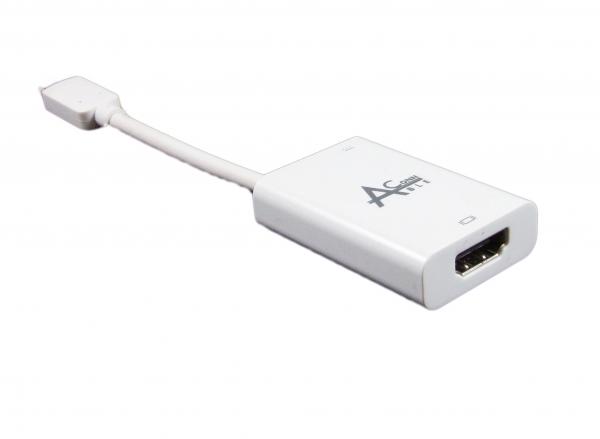

    • 1 x HDMI type A, female (Downstream)

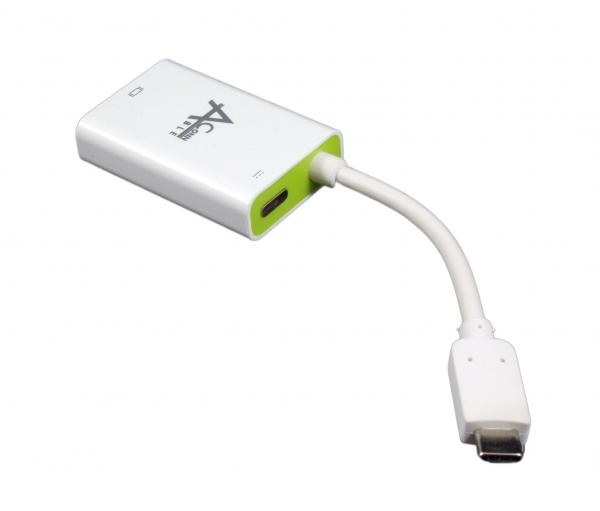

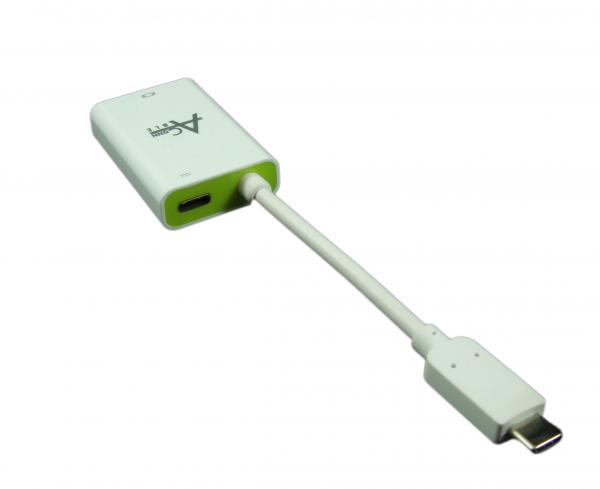

    • 1 x USB-C power pass-through input, female
  • Chipset: VIA VL100, and Parade PS176
  • Compliant with VESA DisplayPort Alt Mode for USB Type-C Standard.
  • Compliant with USB Power Delivery Rev 2.0
  • Compliant with HDMI Specification 2.0
  • Power Modes: USB bus-powered or Self-Powered via USB-C port (USB-C power adapter not included)
  • Support USB-C input power up to 20V/3A
  • Support resolutions up to 4K 3840x2160@60Hz
  • Operation Temperature: 0~40 C degree; Storage Temperature: -20~70 C degree
  • Weight: 0.8 ounce / 22 g
  • Dimension (LWH): 2.2 x 1.3 x 0.5 in / 55 x 33 x 12.5 mm
  • Cable Length: 2.4 in /60 mm
  • Certification: FCC, CE


Compatibility

  • Requirement: USB-C port with DisplayPort Alt Mode video output or Thunderbolt 3 port. Note: Not all USB-C ports support Alt Mode
  • 2016 MacBook Pro, Retina MacBook 12-inch 2015, Chromebook Pixel 2015, Dell XPS with Thunderbolt 3 (late 2015), and laptops, tablets, or PC systems that support DisplayPort Alt Mode video output over USB-C.
    Note:Most current phones and tablets with USB-C ports do NOT support Alt Mode video output. USB-C ports on PCIe USB 3.1 controller card do not support Alt Mode video output.


Package Contents

  • Ableconn USB-C to HDMI with PD Charging Adapter
