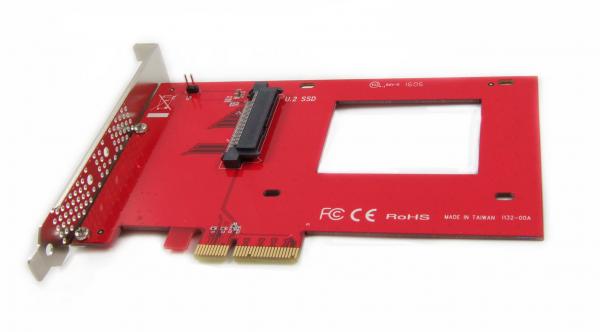

Ableconn PEXU2-132 NVMe 2.5-inch U.2 (SFF-8639) SSD PCIe 3.0 x4 Carrier Adapter Card - Support Intel 750 2.5-inch U.2 SFF SSD

Ableconn PEXU2-132 NVMe 2.5-inch U.2 (SFF-8639) SSD PCIe 3.0 x4 Carrier Adapter Card - Support Intel 750 2.5-inch U.2 SFF SSD

  • Product Specification:

    • Dimensions 6.2 x 3.8 x 0.6 inches / 158 x 96 x 16 mm
    • Weight 2.2 ounces / 64 g
    • Capacity PCIe x4 Lane
    • Supported System No driver installation required. Support Windows 10/8, Server 2012 R2, Linux, etc.
    • Certification CE, FCC, RoHS
  • United States Japan

Product Description

Feature Bullets

  • Mount a NVMe 2.5-inch U.2 Small Form Factor (SFF) onto a PCI Express Add-in card and install on a PCIe x4 slot. No cables are required.
  • The adapter is a PCI Express 3.0 4-lane Host adapter. Supports PCIe 2.0 and PCIe 3.0 motherboard
  • Work with Intel 750 series 2.5-inch U.2 SFF SSD. Note: make sure the PCIe slot on motherboard configured as PCIe 3.0 and x4 mode capable to reach the highest performance.
  • No driver installation is required. Support Windows 10/8, Server 2012 R2, Linux, etc.
  • Fully RoHS compliant. Made in Taiwan.


Product Description
The Ableconn PEXU2-132 allows you to install a 2.5-inch PCIe-NVMe U.2 SSD drive (such as Intel 750 U.2 SFF) on a PCI Express 3.0 x4 card to your PC System without cables. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!

Features

  • Connector:
    • 1x U.2 connector (SFF-8639, 68 Pin) female
  • Software:
    • - No driver installation is required.
    • - Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe



Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941)

Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only



  • System Requirement:
    • - An empty PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot.
  • Turn U.2 2.5-inch small form factor into a PCIe Add-in card
  • Install U.2 2.5-inch PCIe-NVMe SSD on a PCI Epress Add-in Card directly to work with motherboard PCIe x4 bus slot
  • PCI Express 3.0 x4 Lane Host adapter
  • Supports PCIe 3.0 and PCIe 2.0 motherboards
  • Low Profile PCIe bracket on board and Regular size bracket included
  • Transparent to the operating system and no driver required
  • Fully RoHS compliant
  • Made in Taiwan



Package Contents

  • Ableconn PEXU2-132 NVMe 2.5-inch U.2 SSD PCIe 3.0 x4 Carrier Adapter Card
  • 4x drive mounting screws
