Ableconn IUSB2SAOD SATA Slimline Optical Drive (ODD) to USB 2.0 Type-B (F) Mini Vertical Adapter - Convert Slim SATA Optical Drive to USB 2.0 Device

Ableconn IUSB2SAOD SATA Slimline Optical Drive (ODD) to USB 2.0 Type-B (F) Mini Vertical Adapter - Convert Slim SATA Optical Drive to USB 2.0 Device

  • Product Specifications:

    • Dimensions 4 x 0.5 x 1 in / 101.6 x 12.7 x 25.4 mm
    • Weight 0.4 oz / 11.3 g
    • Capacity USB 2.0 up to 480 Mbps
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Convert any Slim Type of SATA ODD to USB2.0 interface for your Rack Mount Server or Raspberry Pi!

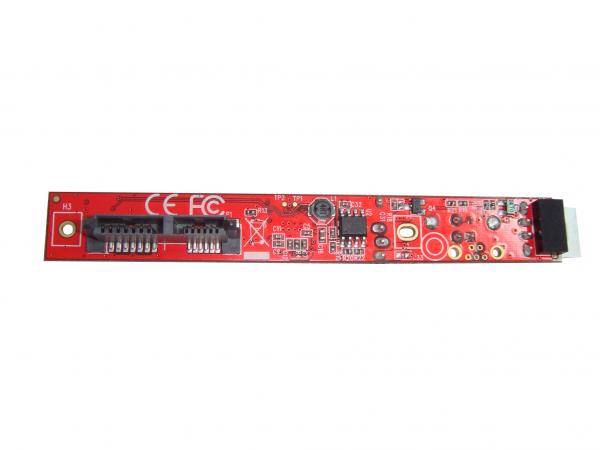

  • Adapter board directly attached and screwed to slim ODD with included Mounting Screws. Ideal for Rack Mount System, Server, Network Attached Storage, Mini ITX, and Rasperry Pi.

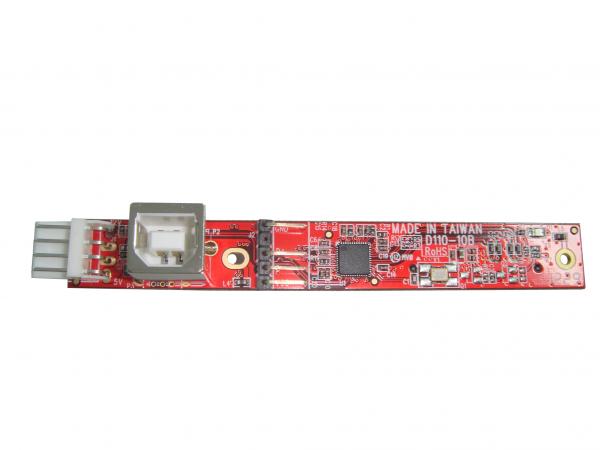

  • Support both USB 2.0 5-Pin Pin Header and USB 2.0 Type-B connector for host interface
  • PCBA and SATA slim drive powered by power supply thru 4-Pin Molex Power connector (12V & 5V).
  • CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.



Product Description
 The Ableconn IUSB2SAOD let you Convert any Slim Type of SATA ODD to USB2.0 interface for your Rack Mount Server!

Specification

  • Support any type of SATA Slim device
  • Adapter board directly attached and screwed to slim ODD with included Mounting Screws
  • Ideal for Rack Mount System, Server, Network Attached Storage and Mini ITX
  • Support both USB 2.0 5-Pin Pin Header and USB 2.0 Type-B connector for host interface
  • USB 2.0 5-Pin Pin Header assignment: 5V, D-, D+, NC, GND
  • PCBA and SATA slim drive powered by power supply thru 4-Pin Molex Power connector (12V & 5V)
  • Power Consumption: 5V / 570mW
  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
  • Compliant with Serial ATA 1.0a specifications
  • Fully RoHS compliant.


Package Contents

  • Ableconn PIUSB2MSA USB to mSATA Converter Board
  • Two (2) mounting screws
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support4 x 0.5 x 1 in / 101.6 x 12.7 x 25.4 mm
