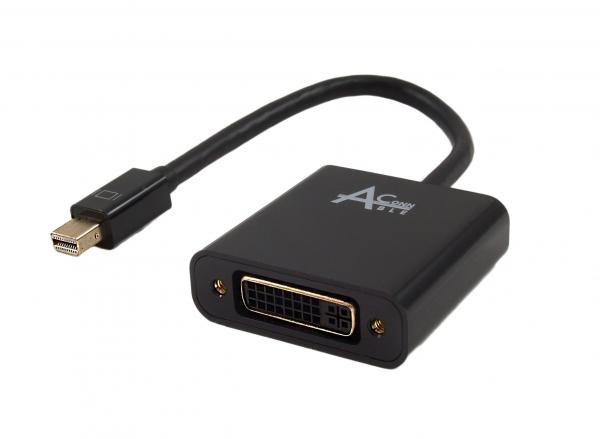

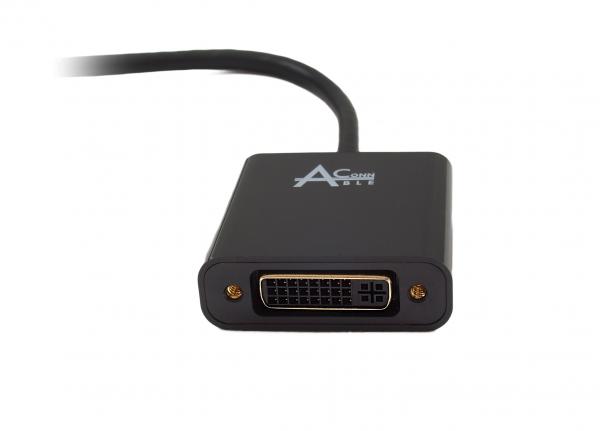

Ableconn MDP2DVI0B Mini DisplayPort (Thunderbolt) to DVI Video Male to Female Adapter (Gold Plated), Black - mDP to DVI Cable Adapter

Ableconn MDP2DVI0B Mini DisplayPort (Thunderbolt) to DVI Video Male to Female Adapter (Gold Plated), Black - mDP to DVI Cable Adapter

  • Product Specifications:

    • Dimensions 1.8 x 1.8 x 0.6 inches / 45 x 45 x 14 mm; With cable total length: 9.75 inches
    • Weight 1.3 ounces / 38 g
    • Input Mini DisplayPort male
    • Output DVI female
    • Color Black
    • Chipset NXP PTN3361B
    • Certification FCC, CE


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Connect a Mini DisplayPort (Thunderbolt Port) equipped Apple Mac, Microsoft Surface Pro/Book, Intel NUC, or Laptop/Desktop PC to a projector or monitor with DVI input.
  • Transimit video signals from computer to display; Support resolutions up to 1920 x 1200 and 1080p (Full HD)
  • Low-profile connector will not block adjacent ports on computer. Built with high quality cable and over molded strain relief design to ensure superior flex life, tensile strength, and moisture protection. Gold-plated connectors resist corrosion, provide durability and improve the signal transmission.
  • Compatible with Mini DisplayPort equipped laptops such as Apple MacBook, MacBook Air, MacBook Pro, Mac Mini, Mac Pro, iMac, Microsoft Surface Pro/Pro 2/Pro 3/Pro 4/Book & Surface 3 (NOT Surface/Surface 2), DELL XPS, HP Envy, Lenovo ThinkPad, Google Chromebook Pixel, and most laptops/ultrabooks, etc.
  • Plug and play - no driver software installation required. CE, FCC certified.


Product Description
The Ableconn MDP2DVI0B is a high quality adapter which provides an easy and cost-effective solution for connecting a DVI monitor or projector to your Mini DisplayPort (Thunderbolt port) equipped Mac or PC.

Specifications

  • Input: Mini DisplayPort (Thunderbolt) Male
  • Output: DVI Female
  • Built with NXP PTN3361B chipset
  • Type 2 Dual-Mode DisplayPort (DP++) cable adapter
  • Connect up to 2 monitors via AMD Eyefinity Multi-Monitor graphics card (one adapter per monitor)
  • Support resolutions up to 1920 x 1200 and 1080p (Full HD)
  • Supported Resolutions: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1440x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 1080p
  • Corrosion-resistant gold-plated connectors for maximum and long-term performance
  • Certification: FCC, CE


Compatibility (Incomplete List)

  • Apple MacBook, MacBook Pro, MacBook Air, iMac, Mac Mini, Mac Pro
  • Microsoft Surface Pro/Pro2/Pro3 & Surface 3/Pro 4/Book (NOT Surface/Surface 2 Windows RT)
  • Google Chromebook Pixel
  • Intel NUC
  • Lenovo ThinkPad X1 Carbon, X230/240s, L430/440, L530/540, T430/440, T440s, T440p, T530/540p, W530/540, Helix
  • Dell XPS 13/14/15/17, Latitude E7240/E7440, Precision M3800
  • Alienware 14/17/18
  • Acer Aspire R7-571/R7-571G/R7-572/R7-572G/S7-392/V5-122P/V5-552G/V5-552P/V5-552PG/V5-572P/V7-481P/V7-482PG/V7-581/V7-582P
  • Asus Zenbook UX303LA/UX303LN
  • HP Envy 14/17
  • Cyberpower Zeusbook Edge X6-100/X6-200
  • Toshiba Satellite Pro S500, Tecra M11/A11/S11


Package Contents

  • Ableconn Mini DisplayPort to DVI Adapter
