Ableconn ISAT-M2SR 2.5" 7mm SATA III to Dual M.2 SATA SSD Adapter with Hardware RAID - Retain 2X M.2 SSD as 7mm 2.5" SATA Drive

Ableconn ISAT-M2SR 2.5" 7mm SATA III to Dual M.2 SATA SSD Adapter with Hardware RAID - Retain 2X M.2 SSD as 7mm 2.5" SATA Drive

  • Product Specifications:

    • Dimensions 4.3 x 2.8 x 0.2 inches / 100 x 70 x 7 mm
    • Weight 1.5 ounces / 42 g
    • Capacity Up to 6 GBps (SATA III)
    • Chipset ASMedia ASM1092R
    • Supported System No driver installation is required on Windows, Mac, and Linux.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Convert 2x M.2 NGFF SATA based SSD to a standard internal 2.5" 7mm SATA drive. It supports H/W RAID 1, SPAN (Big Drive) and PM (2Drives) Modes. Note: SATA Host is required to be Port Multiplier capable for PM Mode.
  • Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80/60/42/30 mm SSD
  • Open frame aluminum housing dessign providing excellent heat dissipation for M.2 SATA SSD
  • No driver installation required. Native support in Windows, Mac and Linux.
  • CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description

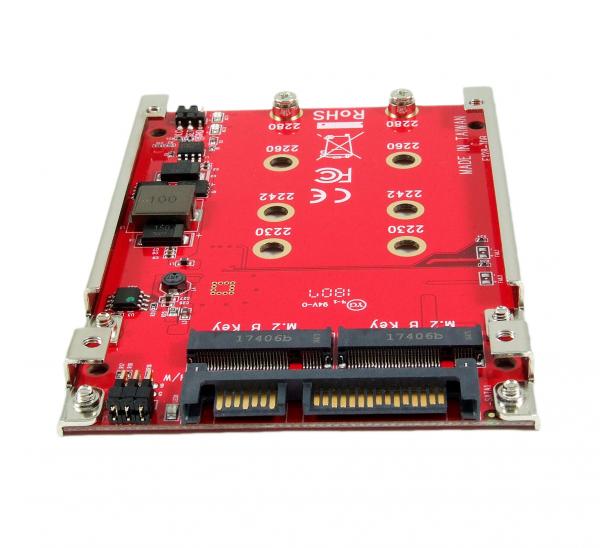

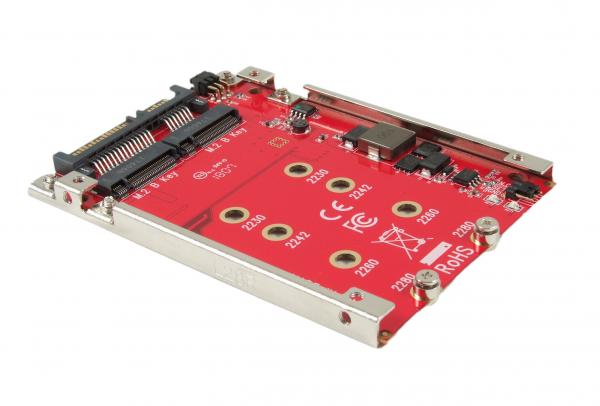

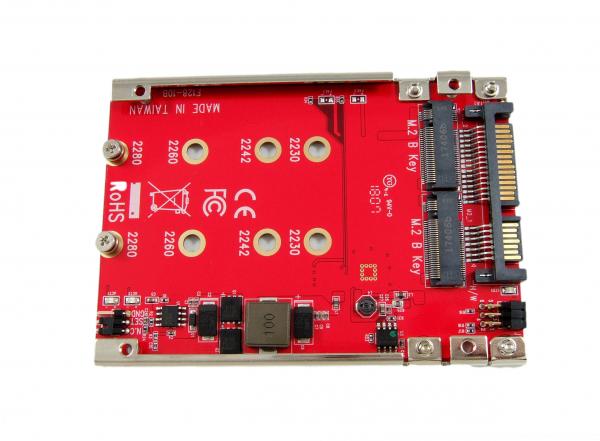

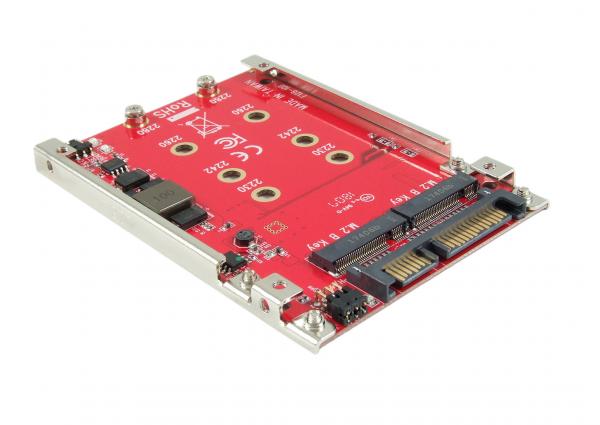

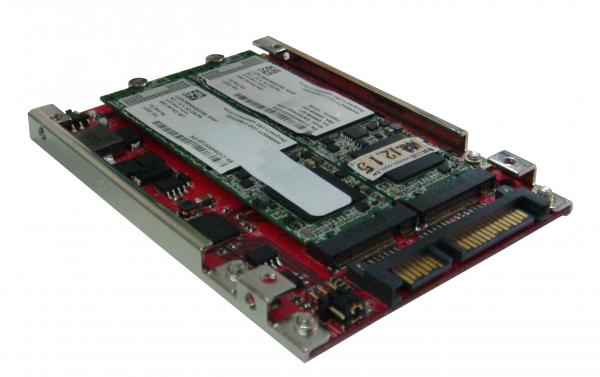

The Ableconn ISAT-M2SR turns two M.2 SATA SSD modules into an 2.5-inch SATA III SSD drive with RAID to increase performance and redundancy. The drive metal frame and mounting holes enable you to install it like a 2.5" internal hard drive. It supports SATA based M.2 NGFF 80/60/42/30 mm SSD.

Specification

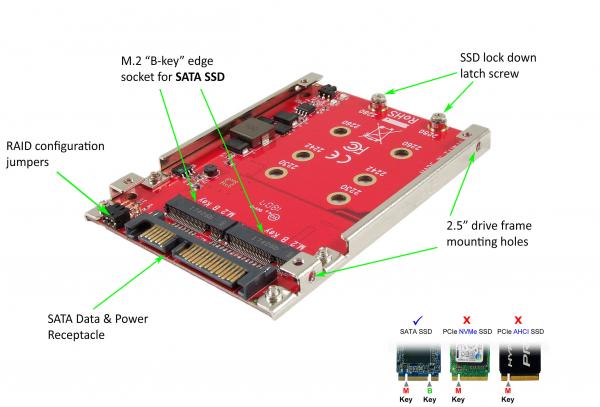

  • Connector:
    • 1 x SATA Data & Power (7+15 pins) Receptale
    • 2 x M.2 NGFF slots (type 2280-D5-B connector on board)



  • Chipset: ASMedia ASM1092R
  • Data transfer rate:
    • Up to 6 GBps (SATA III)

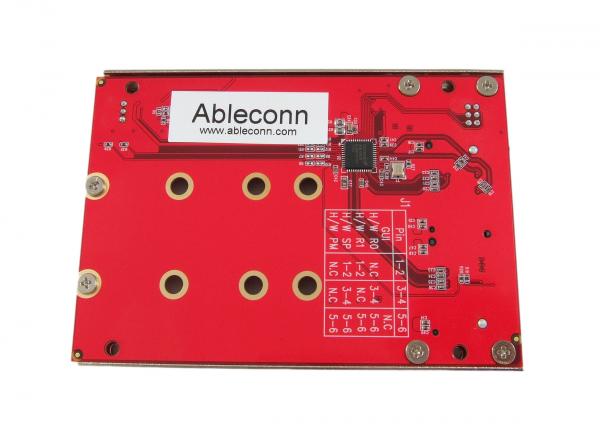

  • Jumper Selection:
    • 1 x jumper for RAID Mode setting
  • Software:
    • OS independent; No driver installation is required on Windows, Mac, and Linux.
    • Provides Windows and Mac GUI to configure RAID modes and monitor RAID status.



  • Convert 2x M.2 NGFF SATA based SSD to a standard 2.5" 7mm SATA drive
  • Supports SATA I, SATA II, SATA III Host port.
  • Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80/60/42/30 mm SSD
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side
  • Supports H/W RAID 0, RAID 1, SPAN (Big Drive) and PM (2Drives) Modes. Note: the SATA Host required to be Port Multiplier capable for PM Mode. The SMART function is not supported.
  • Hardware Jumper and Windows & Mac software GUI configure RAID modes
  • 2x LED indicators for M.2 accessing activity or device failure
  • Includes 7mm height 2.5-inch drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimensions (LxWxH): 4 x 2.8 x 0.2 in / 100 x 70 x 7 mm
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn ISAT-M2SR 2.5-inch SATA Adapter for Dual M.2 SATA SSD with RAID
  • 4x drive mounting screws

Customer FAQ

Q 1 .   Does it support RAID 0?
Answer:
Ableconn ISAT-M2SR does support RAID 0. We do not emphasize RAID 0 because RAID 0 actually reduce the performance due to the overhead and the SATA III bandwidth between host (real-world max throughput 4.8 Gbps or 600 MB/s). We do not recommend running the board as RAID 0, but it should still work properly.

Please make sure that the mode setting is done properly with the following steps:
1. turn off the system, and install the modules.
2. set the jumper to the proper mode.
3. set the J2 to position SET-GND for mode change.
4. turn on the power to the board.
5. wait a few seconds then turn off the power, remove J2 and put the jumper to SET-NC, disabling the mode change.
6. you can now connect to the system and start using the drive. Please check if the volume is correct.


Note: J2 is a RAID setting jumper:
short SET-GND: Unlocked RAID and let you change RAID configuration mode
short SET-NC: Locked RAID. It does not allow you to change RAID configuration mode.
