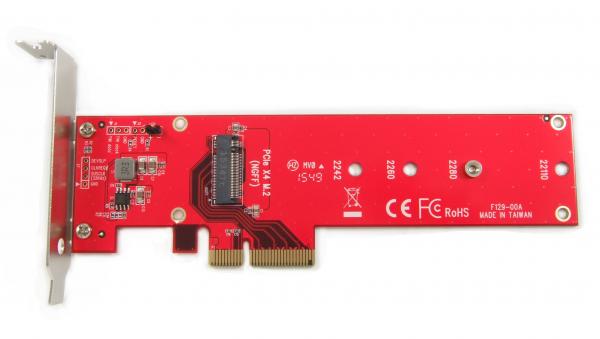

Ableconn PEXM2-110 M.2 NGFF PCIe SSD to PCI Express x4 Host Adapter Card Support NVMe M.2 110m SSD - Support M.2 PCIe NVMe Type 22110, 2280, 2260, 2242

Ableconn PEXM2-110 M.2 NGFF PCIe SSD to PCI Express x4 Host Adapter Card Support NVMe M.2 110m SSD - Support M.2 PCIe NVMe Type 22110, 2280, 2260, 2242

  • Product Specifications:

    • Dimensions 6.6 x 1.8 x 0.3 inches / 170 x 4 x 10 mm
    • Weight 1.4 ounces / 42 g
    • Capacity PCIe 4.0 x4 Lane
    • Supported System No driver required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Note: this adapter is only for 'M' key M.2 PCIe (NVMe or AHCI) SSD. Not compatible with a 'B' key (SATA or PCIe x2) SSD.







The adapter can take M.2 PCIe (AHCI or NVMe) SSD in length of 42, 60, 80, and 110 mm.





Benchmarks:









Feature Bullets

  • Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Host adapter. Supports PCIe 4.0 and PCIe 3.0 motherboard. Support PCIe L1 Power Management Substates with CLKREQ.
  • Supports PCIe Gen4 and Gen3 M.2 NGFF 110mm, 80mm, 60mm, 42mm SSD. Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
  • Note: this adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941/SM951/950 Pro SSDs. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
  • Fully RoHS compliant. Made in Taiwan.



Product Description

The Ableconn PEXM2-110 allow you to install an M.2 NGFF PCIe SSD covering type 2210 through a Low Profile PCIe x4 card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe or PCIe-AHCI M.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!



Features

  • Connector:
    • 1x M-key (type 22110-D5-M) M.2 socket for M.2 NGFF PCIe based SSD
  • Software:
    • No driver installation required.
    • Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI
    • Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD



  • System Requirement:
    • An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.



  • PCI Express 4.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included
  • Compliant with PCI Express 4.0. Supports PCIe 4.0 and PCIe 3.0 motherboards.

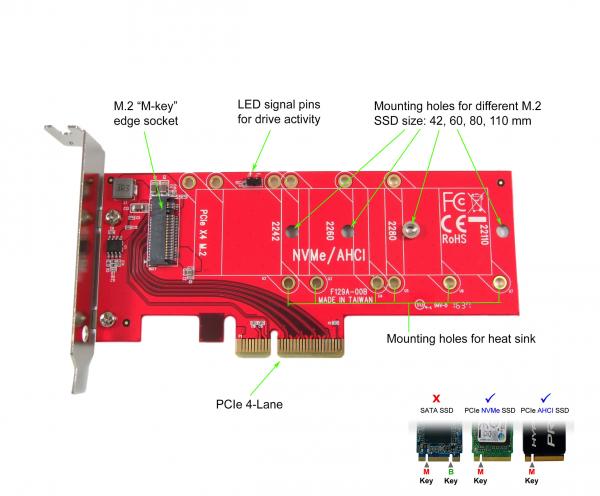

  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 M.2. Supports M.2 NGFF 110mm, 80mm, 60mm, 42mm SSDs.
  • Supports dual-sided M.2 SSD module with 1.5mm component height on the top and bottom side
  • Support PCIe L1 Power Management Substates with CLKREQ.
  • Pin header on board for drive LED connection
  • Supports industrial operating temperature range: -40 - 85 ºC
  • M.2 PCIe SSD gets power from motherboard PCIe bus slot 3.3V; Supports M.2 PCIe SSD High Power 3.3V/5A.
  • Fully RoHS compliant
  • Made in Taiwan
  • Note: SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter


Compatibility (Incomplete List)

  • Samsung XP941, SM951 (AHCI or NVMe), 950 Pro Series SSDs
  • Kingston HyperX Predator M.2
  • Plextor M6e Series M.2 SSD

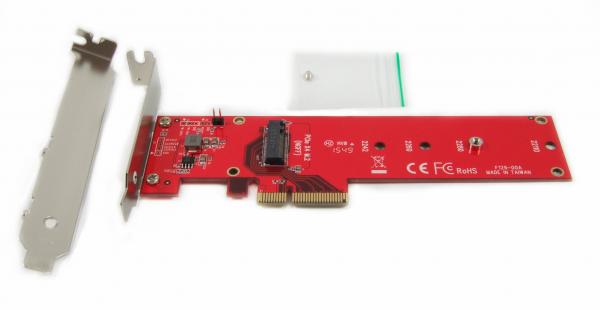

Package Contents

  • Ableconn M.2 PCIe SSD to PCIe x4 Host Adapter Card
  • 1x low profile PCIe bracket
  • 1x mounting screw

Customer FAQ

Q 1 .   I have an AMD mini-itx Gigabyte motherboard (GA-F2A88XN-WIFI). Socket FM2+ with an A10 7800 APU. It supports PCI Express gen 3.0, and the motherboard has a PCIe 16x. Can I boot using this adaptor with a Samsung 950 pro?
Answer: It depends on the motherboard BIOS. It requires a UEFI BIOS that supports boot from NVMe such as 950 Pro SSD.
Q 2 .   I am using a Samsung 950 PRO -Series PCIe NVMe M.2 SSD on Windows 7 - 64bit system. I can’t seem to get it working. Any suggestion?
Answer:

Native drive support for NVMe SSDs is built in on Windows 10 / 8, Windows Server 2012 R2, and later. For Windows 7 and Windows Server 2008 R2, the native driver can be download from NVMe native driver available via Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941). The other option is to install Samsung NVMe Driver driver from the following link: http://www.samsung.com/global/business/semiconductor/minisite/SSD/global/html/support/downloads.html

Q 3 .   Can it be used along with a NVMe SSD for boot drive on Windows 7 64 bit system?
Answer:

The NVMe native driver for Windows 7 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941). You will need to download the Microsoft NVMe native driver to get it to work. As for a boot drive, it depends on your system or motherboard BIOS. If your system BIOS is able to recognize NVMe SSDs, you can make it as a boot drive.  The NVMe native driver is built-in on Windows 10 and 8.
