Ableconn IDE40-SAT SATA Hard Drive or Optical Drive to IDE 40-Pin Mini Vertical Adapter - SATA HDD / SSD / ODD to 40Pin IDE PATA Motherboard Converter

Ableconn IDE40-SAT SATA Hard Drive or Optical Drive to IDE 40-Pin Mini Vertical Adapter - SATA HDD / SSD / ODD to 40Pin IDE PATA Motherboard Converter

  • Product Specifications:

    • Dimensions 3 x 0.9 x 0.8 inches / 76 x 23 x 20 mm
    • Weight 0.5 ounces / 14 g
    • Input SATA Data & Power (7 + 15 pins) (direct attach to SATA drive)
    • Output IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable)
    • Chipset Marvell 88SA8052
    • Compatibility OS independent; No driver installation required
    • Supported System Windows, Macs, and Linux
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Convert any SATA drive into 40-pin IDE interface just like a standard IDE/ATAPI drive. Ideal for computers or embedded systems that are not equipped with SATA controllers.
  • Supports any type of SATA III, SATA II and SATA I Devices such as Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk, etc.
  • Complete hardware solution; no driver installation is required. Compatible with any OS such as: Windows, DOS, Mac, Linux, etc. that support IDE/ATAPI storage devices

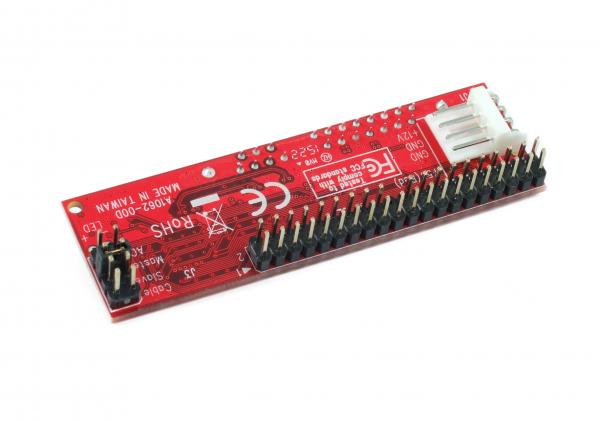

  • Mini vertical board with size only 3" (L) x 0.9" (W) and mount directly to the back of SATA drive.
  • Fully RoHS compliant. Made in Taiwan.



Product Description

The Ableconn IDE40-SAT allows you to install a SATA drive to the motherboard with IDE/ATA connector. It's the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces.

Features

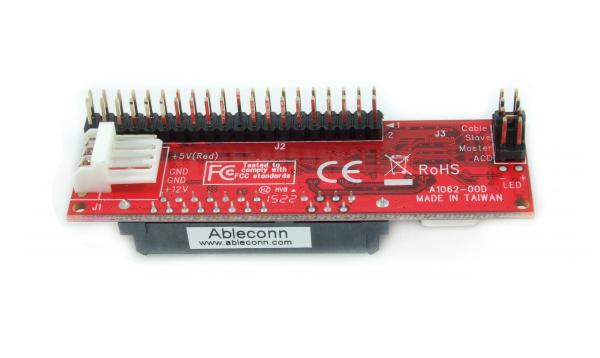

  • Connector:
    • 1 x IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable)
    • 1 x SATA Data & Power (7 + 15 pins) (direct attach to SATA drive)
    • 1 x SP4 (4-pin; floppy style small drive power) Male
  • Chipset: Marvell 88SA8052
  • Data transfer rate:
    • Up to 150 MBps
  • Jumper Selection:
    • 1 x jumper for selection of Master/Slave/Cable Select modes
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux
  • SATA II 3Gbps controller Mini vertical Adapter Board
  • Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk)
  • Convert a SATA Drive like a standard IDE/ATAPI Drive
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
  • Compliant with Serial ATA 2.6
  • Bootable
  • Jumper setting support IDE Master, Slave and Cable Select Modes
  • Tag Command Queuing (Max 32 entries)
  • ATA/ATAPI PIO mode data transfer
  • ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
  • ATA/ATAPI-7 Streaming feature set
  • Fully RoHS compliant
  • Made in Taiwan

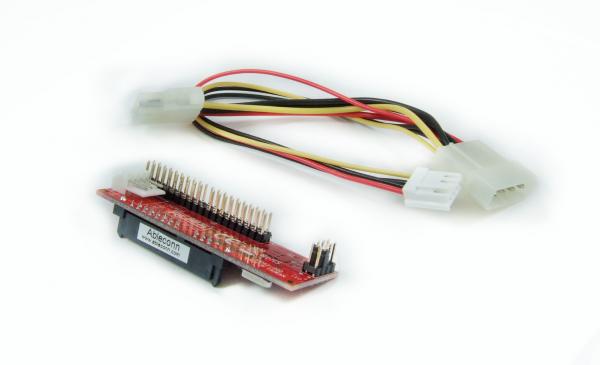

Package Contents

  • Ableconn IDE40-SAT IDE to SATA Hard Drive or Optical Drive Mini Adapter
  • 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
