Ableconn SAT-IDE40 IDE Device to SATA Motherboard Mini Vertical Adapter - IDE PATA to SATA Motherboard Converter

Ableconn SAT-IDE40 IDE Device to SATA Motherboard Mini Vertical Adapter - IDE PATA to SATA Motherboard Converter

  • Product Specifications:

    • Dimensions 2.2 x 0.9 x 0.8 inches / 57 x 23 x 21 mm
    • Weight 0.4 ounces / 12 g
    • Input IDE (40-pin, PATA) Female (direct attach to IDE drive)
    • Output SATA (7-pin, Data) (to be connected with a SATA cable to motherboard)
    • Chipset Silicon Image SiI3811
    • Compatibility OS independent; No driver installation required
    • Supported System Windows, Macs, and Linux
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Convert an IDE/ATAPI drive into Serial ATA interface just like a SATA drive. It converts any kind of IDE devices to work with SATA I, SATAII or SATA III Host Controller. Ideal for keeping existing IDE/ATAPI devices for newer systems with Serial ATA interface.

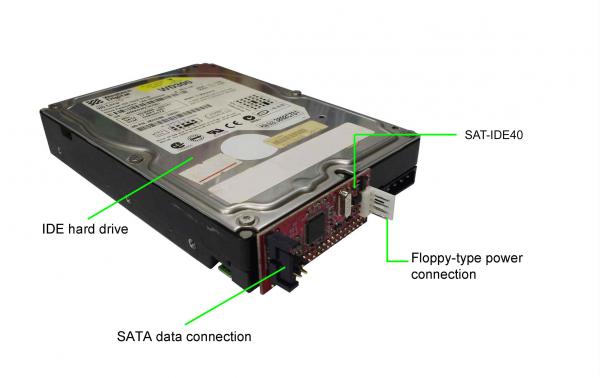

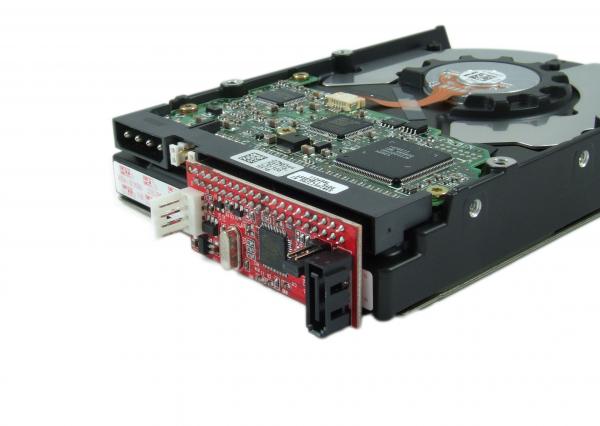

  • Mini vertical board with size only 2.2" (L) x 0.9" (W) and mount directly to the back of IDE hard drive or ATAPI devices.
  • Supports and attaches any type of ATAPI, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage device (DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk, ....)
  • Complete hardware solution; no driver installation is required. Compatible with any OS such as: Windows, DOS, Mac, Linux, etc. that support Serial ATA storage devices
  • Fully RoHS compliant. Made in Taiwan.



Product Description

The Ableconn SAT-IDE40 allows you to install an existing IDE drive to the newer SATA host controller. It's the easiest and cost effective solution to keep existing IDE/ATAPI devices to work with newer motherboards or systems without legacy IDE interface.

Features

  • Connector:
    • 1 x IDE (40-pin, PATA) Female (direct attach to IDE drive)
    • 1 x SATA (7-pin, Data) (to be connected with a SATA cable to motherboard)
    • 1 x SP4 (4-pin; small drive power) Male

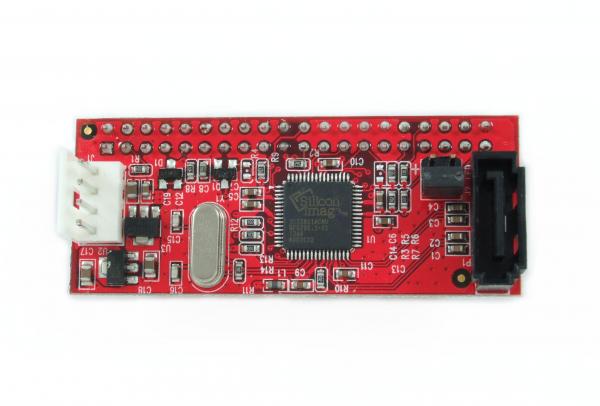

  • Chipset: Silicon Image SiI3811
  • Data transfer rate:
    • Up to 133MBps
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux
  • Supports and attaches any type of ATAPI, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage device (DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk, ....)
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
  • Mini vertical Board
  • Compliant with Serial ATA 1.0a specifications
  • SATA transfer rate 1.5Gbps
  • Supports Spread Spectrum in receiver
  • Compliant with ATA specifications
  • Compatible with Ultra ATA 133
  • Automatically decode the ATAPI command to know the UDMA direction.
  • Bootable. Plug and Play and Hot swappable. The device can be removed and added without system shutdown or reboot.
  • Fully RoHS compliant
  • Made in Taiwan

Package Contents

  • Ableconn SAT-IDE40 IDE Device to SATA Adapter
  • 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
