Ableconn PEXM2-SSD M.2 NGFF PCIe SSD to PCI Express x4 Host Adapter Card - Support M.2 PCIe Type 2280, 2260, 2242

Ableconn PEXM2-SSD M.2 NGFF PCIe SSD to PCI Express x4 Host Adapter Card - Support M.2 PCIe Type 2280, 2260, 2242

  • Product Specification:

    • Dimensions 4.3 x 2.0 x 0.2 inches / 105 x 50 x 5 mm
    • Weight 1.3 ounces / 36 g
    • Capacity PCIe 4.0 x4 Lane
    • Compatibility M.2 type 2280, 2260 and 2242 SSD
    • Supported System No driver required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI
    • Certification CE, FCC, RoHS
  • United States Japan

Product Description

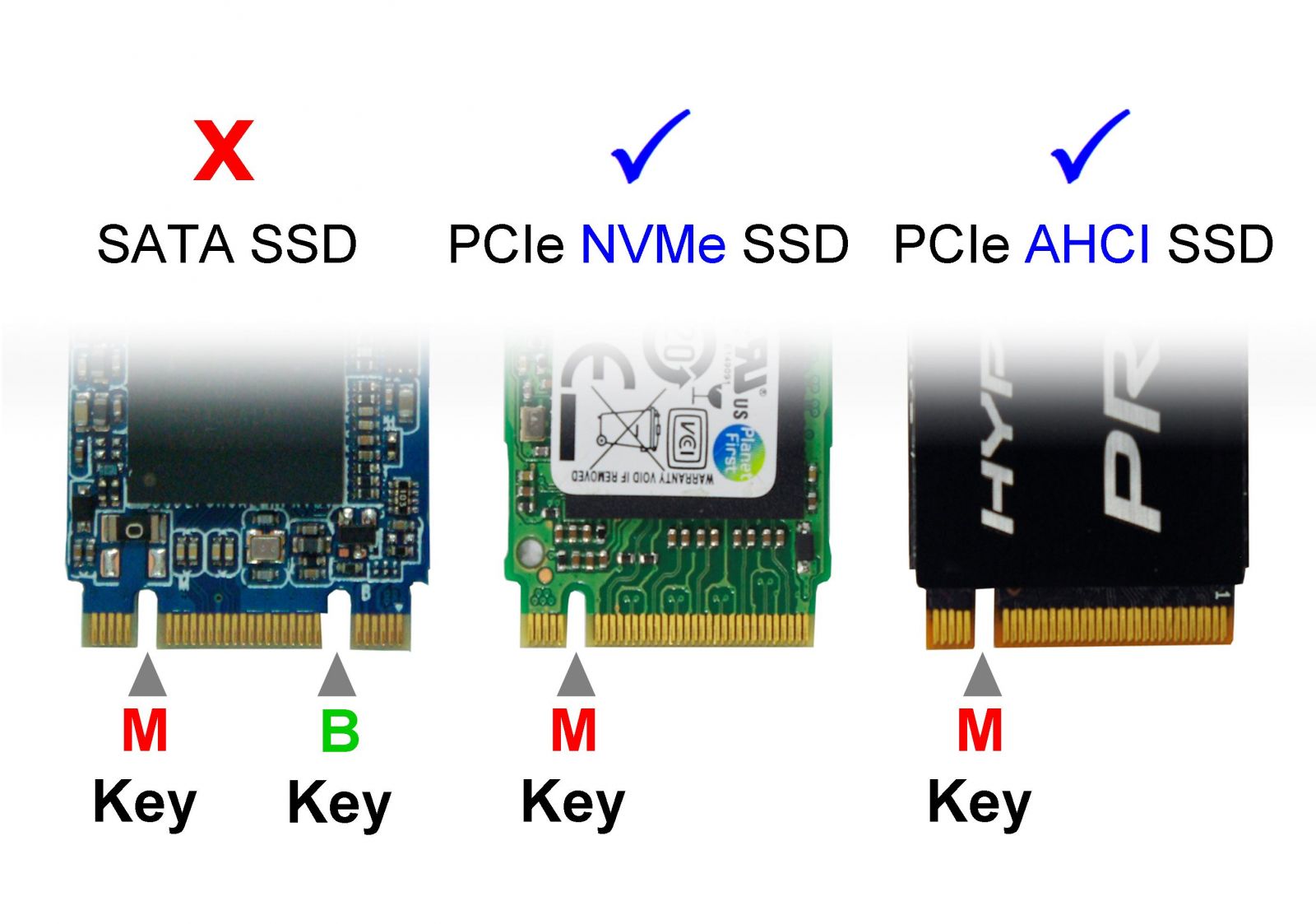

Note: this adapter is only for 'M' key M.2 PCIe (NVMe or AHCI) SSD. Not compatible with a 'B' key (SATA or PCIe x2) SSD.



The adapter can take M.2 PCIe (AHCI or NVMe) SSD in length of 42, 60 and 80 mm.





Product Review:  http://modsynergy.com/review327.html


Feature Bullets

  • Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Host adapter. Supports PCIe 4.0, and PCIe 3.0 motherboards. Support PCIe L1 Power Management Substates with CLKREQ.

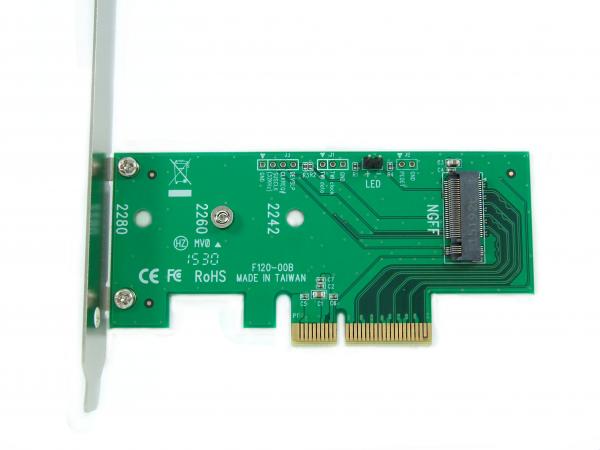

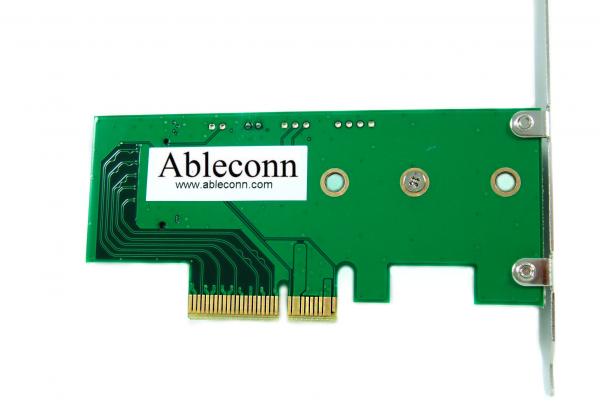

  • Supports PCIe Gen4 and PCIe Gen3 M.2 NGFF 80mm, 60mm, 42mm SSD. Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD
  • Note: this adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941/SM951/950 Pro SSDs. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
  • Fully RoHS compliant. Made in Taiwan.


Product Description

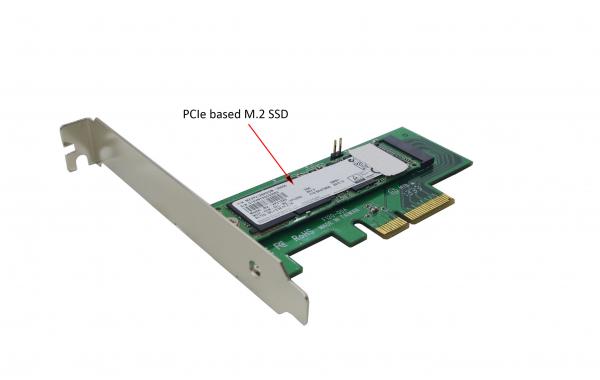

The Ableconn PEXM2-SSD allow you to install an M.2 NGFF PCIe SSD through a Low Profile PCIe 4.0 x4 card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe or PCIe-AHCI M.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!



Features

  • Connector:
    • 1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe based SSD
  • Software:
    • No driver installation required.
    • Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI

Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only

  • System Requirement:
    • An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.
  • Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included.
  • Support PCIe L1 Power Management Substates with CLKREQ.
  • Compliant with PCI Express 4.0. Supports PCIe 4.0 and PCIe 3.0 motherboards.
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M.2. Supports M.2 NGFF 80mm, 60mm, 42mm SSDs.
  • Supports dual-sided M.2 SSD module with 1.5mm component height on the top and bottom side
  • Pin header on board for drive LED connection
  • Supports industrial operating temperature range: -40 - 85 ºC
  • M.2 PCIe SSD gets power from motherboard PCIe bus slot 3.3V
  • Fully RoHS compliant
  • Made in Taiwan

Note: SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter


Compatibility (Incomplete List)

  • Samsung XP941, SM951 (AHCI or NVMe), 950 Pro Series SSDs
  • Kingston HyperX Predator M.2
  • Plextor M6e Series M.2 SSD

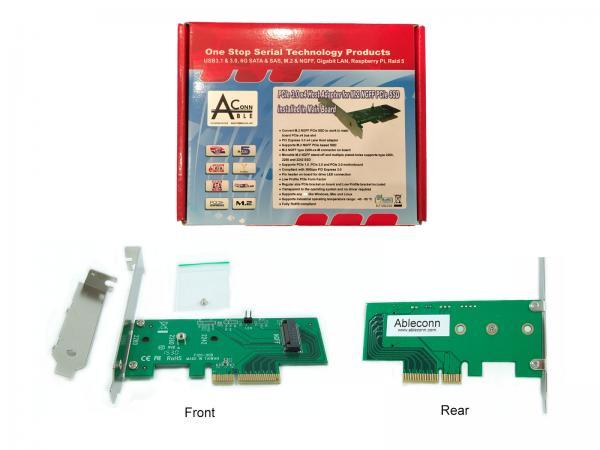

Package Contents

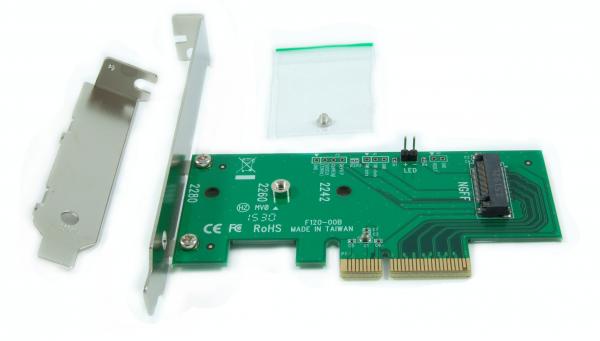

  • Ableconn M.2 PCIe SSD to PCIe x4 Host Adapter Card
  • 1x low profile PCIe bracket
  • 1x mounting screw

































Customer FAQ

Q 1 .   Is the PEXM2-SSD compatible with the Samsung 850 EVO M.2?
Answer: No. PEXM2-SSD doesn’t support SATA Based M.2 SSD module such as Samesung 840/850 EVO M.2.
Q 2 .   I am using a Samsung 950 PRO -Series PCIe NVMe M.2 SSD on Windows 7 - 64bit system. I can’t seem to get it working. Any suggestion?
Answer: Microsoft added native support for NVMe to Windows 8.1, Windows Server 2012 R2, and later. Native drivers for Windows 7 and Windows Server 2008 R2 have been added in updates: http://support.microsoft.com/kb/2990941/en-us The other option is to install Samsung NVMe Driver driver from the following link: http://www.samsung.com/global/business/semiconductor/minisite/SSD/global/html/support/downloads.html
Q 3 .   Will this product use all 4 pci-e lanes or is it just wired to use 2 lanes?
Answer: PEXM2-SSD use all 4 PCIe lanes.
Q 4 .   Can it be used along with a NVMe SSD for boot drive on Windows 7 64 bit system?
Answer:

The NVMe native driver for Windows 7 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941). You will need to download the Microsoft NVMe native driver to get it to work. As for a boot drive, it depends on your system or motherboard BIOS. If your system BIOS is able to recognize NVMe SSDs, you can make it as a boot drive.  The NVMe native driver is built-in on Windows 10 and 8.
