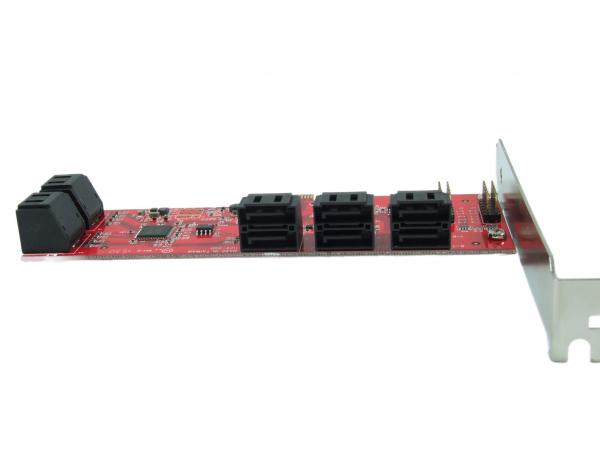

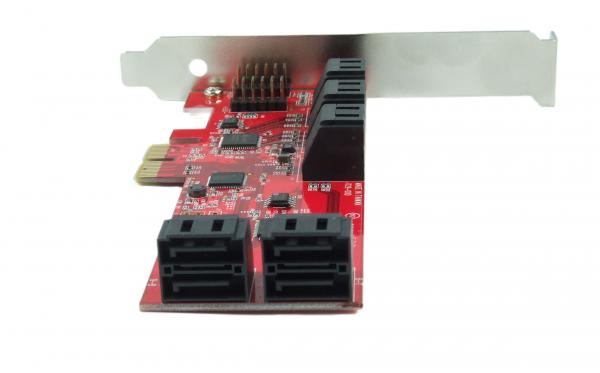

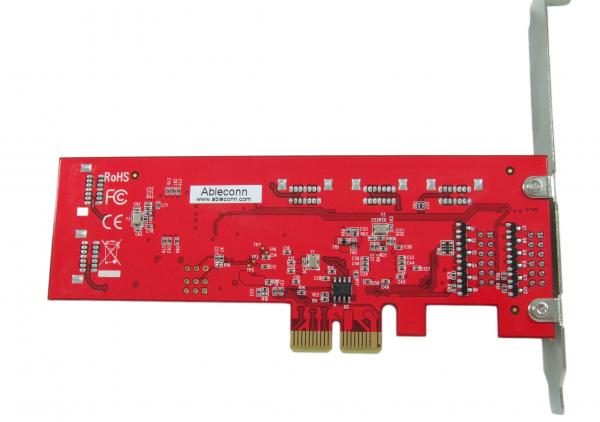

Ableconn PEX10-SAT 10 Port SATA 6G PCI Express Host Adapter Card - AHCI 6 Gbps SATA III Low Profile PCIe 2.0 Expansion Card

Ableconn PEX10-SAT 10 Port SATA 6G PCI Express Host Adapter Card - AHCI 6 Gbps SATA III Low Profile PCIe 2.0 Expansion Card

  • Product Specifications:

    • Dimensions 5.5 x 2.2 x 0.7 inches / 140 x 55 x 18 mm
    • Weight 2 ounces / 58 g
    • Capacity PCIe 2.0 x2 Lane; 6Gbps SATA III
    • Chipset ASMedia ASM1062 + 2x JMicron JMB575
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Adds 10 SATA 6G ports through a Low Profile PCIe 2.0 x2 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.
  • PCIe 2.0 x2 Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included. Compliant with PCI Express v2.0 and backward compatible with PCI Express 1.x
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive. Support Native Command Queuing (NCQ), Hot plug and Hot swap SATA ports
  • No driver installation is required. The AHCI drivers are natively built-in on Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
  • Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description
The Ableconn PEX10-SAT adds 10 SATA 6G ports through a Low Profile PCIe 2.0 card to your PC System. It's an ideal solution for surveillance users to install up to 10 SATA drives and/or ODD drives in one low profile PCIe card without driver installation required.

Specification

  • Connector:
    • 10 x SATA (7-pin, DATA) Female
  • Chipset: ASMedia ASM1062 + 2x JMicron JMB575
  • Data transfer rate:
    • Up to 6 GBps
  • Software:
    • No driver installation required. The AHCI drivers are natively built-in on most Operating Systems
    • Support Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
  • 6Gbps SATA III Internal 10 Ports PCIe Gen2 2-lane Host Adapter
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with 10Gbps x2 PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.0
  • Pin headers on board for activity indication on each channel
  • Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
  • Supports ATA and ATAPI commands
  • Supports SATA Hotplug, and Native Command Queuing (NCQ)
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included

Note: does NOT support SATA Port Multiplier

  • BIOS on board supports Windows and Linux OS booting
  • Fully RoHS compliant
  • Made in Taiwan

Note: the product is not positioned for performance storage such as solid state drives. It's ideal for applications that need a lot of drives, or a huge capacity such as surveillance system, etc.


Package Contents

  • Ableconn PEX10-SAT 10-Port SATA 6G PCIe Card
  • 1x low profile PCIe bracket

Customer FAQ

Q 1 .   Are the 10 ports achieved by using port multiplication on the card
Answer: PEX10-SAT is built with ASMedia ASM1062 + 2x JMicron JMB575 chipsets. Yes, we configure the JMB575 as 1 to 5- ports Serial ATA III Port Multiplier to achieve 10 ports.
Q 2 .   I'm trying to set up software RAID on Windows 10. I know that the Ableconn card is not a RAID card, but it should still be suitable for a software RAID, right? Any support that you can provide is greatly appreciated!
Answer: PEX10-SAT is not a RAID card so there is no BIOS level RAID configuration for it. Your motherboard BIOS only recognizes the SATA controllers (hardware RAID or firmware RAID) it supports (controllers within the Intel or AMD chipsets). When booting into Windows 10, Windows Storage Spaces allow you to do software RAID.
Q 3 .   How do I get into the card's BIOS or settings?
Answer: PEX10-SAT is not a RAID card so there is no BIOS level RAID configuration for it.
Q 4 .   What is the drive order (or port sequence) after populated by BIOS?
Answer: PEX10-SAT is implemented with two 1-to-5 PMs (Port Multiplier). There are two ports, #3 and #7 of port 0 - 9, out of sequence. The drive order assignment is determined by BIOS. For example, on one of our motherboards, the BIOS first scans two PMs, and two SATA ports on motherboard, and then the rest of ports behind PMs. The drive order is populated as 4-5-6-"0"-7-8-9-"1"-A-B mapped to port 0-9 labeled on PEX10-SAT. (drive 2-3 are assigned to the two SATA ports on motherboard)
Q 5 .   Does this card support 8TB hard drives?
Answer:

Yes, PEX10-SAT works with 8TB drives.
