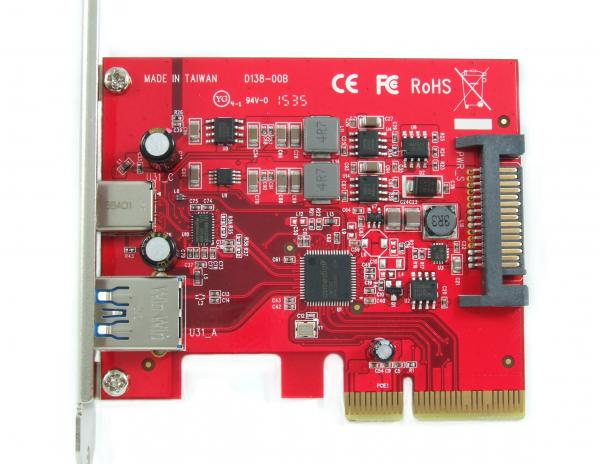

Ableconn PU31-1A1C USB 3.1 Gen 2 (10 Gbps) Type-C & Type-A PCI Express (PCIe) x4 Host Adapter Card - Dual USB3.1 10Gbps With One USB-C and One USB-A

Ableconn PU31-1A1C USB 3.1 Gen 2 (10 Gbps) Type-C & Type-A PCI Express (PCIe) x4 Host Adapter Card - Dual USB3.1 10Gbps With One USB-C and One USB-A

  • Product Specification:

    • Dimensions 1.9 x 1.6 x 0.5 inches / 48.3 x 40.6 x 12.7 mm
    • Weight 1.7 ounces / 48 g
    • Capacity Up to 10 Gbps
    • Chipset ASMedia ASM1142
    • Supported System No driver installation required on MacOS 10.8 to 10.10, and 10.12 and later; Windows 10/8, Server 2012 and later; Linux 2.6.31 and later
    • Certification CE, FCC, RoHS
  • United States Japan

Product Description

Windnows:

Windows 10/8/Server 2012 and later:  No driver installation is required

Windows 7/Vista, and Windows Server 2008/2003:

ASMedia ASMUSBHost_V116591WHQL.zip (v1.16.59.1)



Mac:

MacOS 10.8 to 10.10, and 10.12 and later (MacOS 10.11 in-box driver does support ASMedia USB 3.1)











Feature Bullets

  • One USB 3.1 Type-A (USB-A) and one Type-C (USB-C) downstream connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0.
  • Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
  • Include power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on Type C port and 5V/2A on Type A port.
  • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
  • Built with ASMedia ASM1142. Fully RoHS compliant. Made in Taiwan. Note: The card does not support DP Alt Mode or USB Power Delivery.


Product Description

Add one Type-C and one Type-A SuperSpeedPlus USB 3.1 Gen 2 ports with up to 10Gbps data rate to your system.


Specification

  • Connector:
    • 1x Type-A + 1x Type-C USB 3.1 female
    • 1 x 15-pin SATA power connector (optional connection)



  • Chipset: ASMedia ASM1142
  • Software:
    • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later, Linux 2.6.31 and later.
    • The ASMedia driver for 32/64 bit Windows 7/Vista, and Server 2008/2003 is available from our website.



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps
  • Power:
    • Support up to 3A/5V on USB-C and 2A/5V on USB-A downstream ports.
    • The 15-pin SATA power connection is optional. Each USB port can provide up to 3A/5V or 2A/5V power. If full loaded, it requires at least 25W (3A*5V + 2A*5V) power. The power supply from PCIe bus to a 4-lane/low profile card is 25W (max) per PCI Express specification.



  • Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on USB-C port and 5V/2A on USB-A port.
  • Low Profile PCIe Form Factor board
  • Supports PCIe 1.0, 2.0, or PCIe 3.0 motherboard
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.0.
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.
  • Include both Low Profile and Regular Size PCIe brackets
  • Fully RoHS compliant

Note: The card does not support DP Alt Mode or USB Power Delivery.


Package Contents

  • Ableconn PU31-1A1C USB 3.1 2-Port PCIe x4 Host Adapter Card
  • 1x low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   Is this compatible with a Mac? OSX 10.11 (El Capitan)
Answer:

It doesn’t work with Mac OS X 10.11 (El Capitan) because OS X 10.11 built-in driver does not support XHCI 1.1.

Q 2 .   Support for ASUS MB169C+?
Answer:

No. PU31-1A1C does NOT support DP Alt Mode on USB-C port.

Q 3 .   Is this compatible with Mac OSX 10.12 Sierra?
Answer:

Yes, the adapter works with Mac OS X 10.12, and previous versions from 10.9 to 10.10. It does NOT work with OS X 10.11 because the built-in drivers exclude support for XHCI 1.1.

Q 4 .   What is the SATA power connector for? Does it require to be connected?
Answer:

The 15-pin SATA power connection is optional. It depends on the USB devices/applications whether to get the SATA power connected to PC power supply. For PU31-1A1C, the USB-A port can provide up to 5V/2A power and USB-C port  provides up to 5V/3A power. If full load each USB port, it requires at least 10W (5V*2A) + 15W (5V*3A) = 25W power. Per PCI Express specification, the power supplied from PCIe bus to a 4-lane/low profile card is 25W (max). Therefore, it should be enough for the two USB ports.
