Ableconn PIUSB004U USB to 4-Port USB Downstream Stackable Expansion Board for Raspberry Pi

Ableconn PIUSB004U USB to 4-Port USB Downstream Stackable Expansion Board for Raspberry Pi

  • Product Specifications:

    • Dimensions 2.6 x 2.2 x 0.7 inches / 66 x 55 x 18 mm
    • Weight 0.9 ounces / 26 g
    • Chipset Renesas D720114
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets
  • Add Four Type-A USB ports to your Raspberry Pi via an USB upstream connection.
  • Optional 2-pin power wafer input for power hungery devices. Options of upstream connection via either an USB micro-B connector or an USB 5-Pin Pin Header.
  • Options of downstram connection via either four (4) USB Type-A connectors or two USB 2x5Pin Pin Header

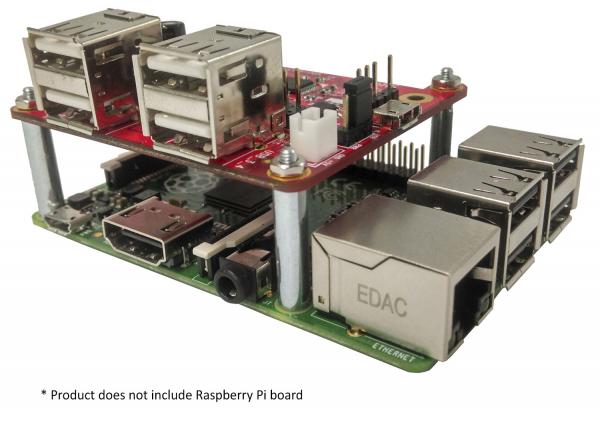

  • Includes Multi-Pi mounting accessory of standoff, nuts, and screws
  • CE, FCC, and Fully RoHS compliant. Made in Taiwan.

Product Description

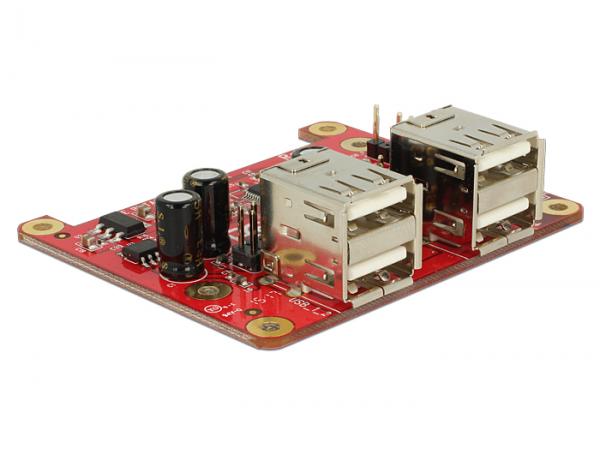

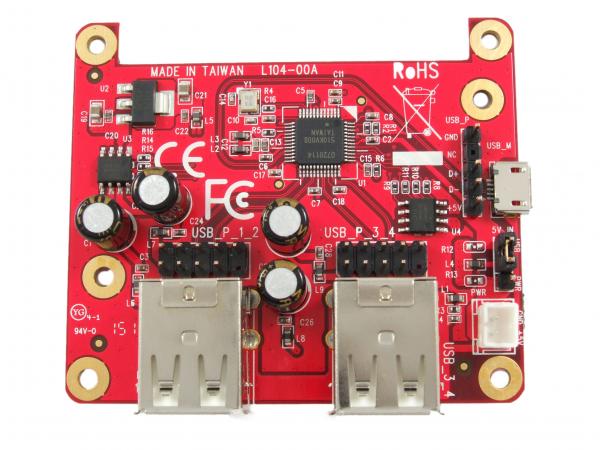

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PIUSB004U adds four USB ports (either USB Type-A female or USB 9-pin pin header) via the USB Micro-B port or the on-bard USB pin header.

Specification
  • Connector:
    • 1 x USB 2.0 Micro-B female
    • 1 x USB 5-pin pin header (Pin Header assignment: 5V, D-, D+, NC, GND)
    • 1 x 2-pin power wafer connector (optional external 5V input power)
    • 4 x USB 2.0 Type-A female
    • 2 x USB 2.0 9-pin pin header
    • 1 x serial RS232 9-pin pin header (a connecting cable with DB9 male is included)
  • Chipset: Renesas D720114
  • Data transfer rate:
    • USB 2.0 up to 480 Mbps
  • Jumper Selection:
    • 1 x jumper for setting the power supply via USB (default mode) or 2-pin power wafer connector
  • Compliant with USB 2.0, OHCI 1.0a, and EHCI 0.95
  • Dimensions (LxWxH): 2.6 x 2.2 x 0.7 in / 66 x 55 x 18 mm
  • CE, FCC, and Fully RoHS compliant.
  • Made in Taiwan

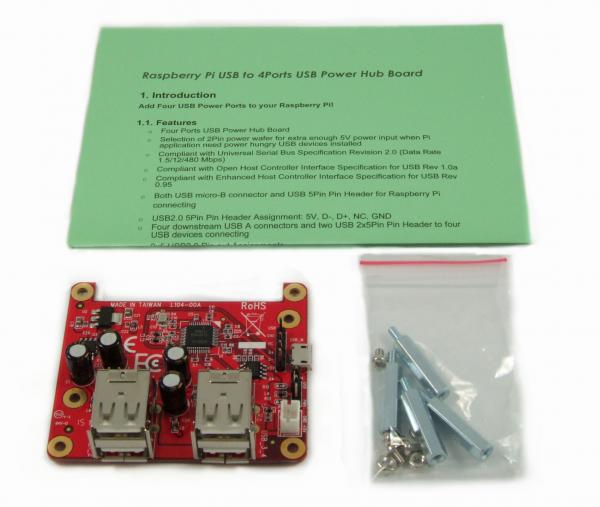

Package Contents
  • Ableconn PIUSB004U USB to 4-Port USB Expansion Board
  • Multi-Pi mounting accessory: 4 x standoff, 4 x nut, and 4 x screw

Warranty
  • Limited One-Year Warranty and Lifetime Product Support
