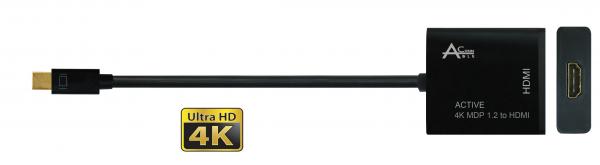

Ableconn MDPHD4KAA Active Mini DisplayPort (Thunderbolt 2) to HDMI Adapter for Displays up to 4K Ultra HD 3840x2160@30Hz (Gold Plated) - Active Mini DP 1.2 to HDMI 4K UHD - Eyefinity Compatible

Ableconn MDPHD4KAA Active Mini DisplayPort (Thunderbolt 2) to HDMI Adapter for Displays up to 4K Ultra HD 3840x2160@30Hz (Gold Plated) - Active Mini DP 1.2 to HDMI 4K UHD - Eyefinity Compatible

  • Product Specification:

    • Dimensions 2 x 1.8 x 0.6 inches / 50 x 45 x 14 mm
    • Weight 1.1 oz / 32 g
    • Input Mini DisplayPort (Thunderbolt) male
    • Output HDMI Type-A female
    • Color Black
    • Chipset Parade PS171 chipset
    • Certification CE, FCC
  • Buy at Amazon

Product Description

Question: The adapter doesn't work with my Macbook Air 2014 for 4K display. It only puts out 1080p?

Answer: The Thunderbolt of MacBook Air 2014 is not "Thunderbolt 2" according to Apple support.

https://support.apple.com/en-us/HT204154

---------------------------------------------------------------------

5. Which Macs have Thunderbolt 2 ports?

The following models are Thunderbolt 2 capable:

MacBook Air (13-inch, Early 2015)

iMac (Retina 5K, 27-inch, Late 2014)

Mac mini (Late 2014)

MacBook Pro (Retina, 13-inch, Late 2013) and later

MacBook Pro (Retina, 15-inch, Late 2013) and later

Mac Pro (Late 2013)

------------------------------------------------------------------------

Thunderbolt 1st version is DP 1.1 compliant. The root cause could be on system port.



Question: The adapter video is excellent on my 4K display, but the audio is dropping? I'm using a Surface Pro 3.

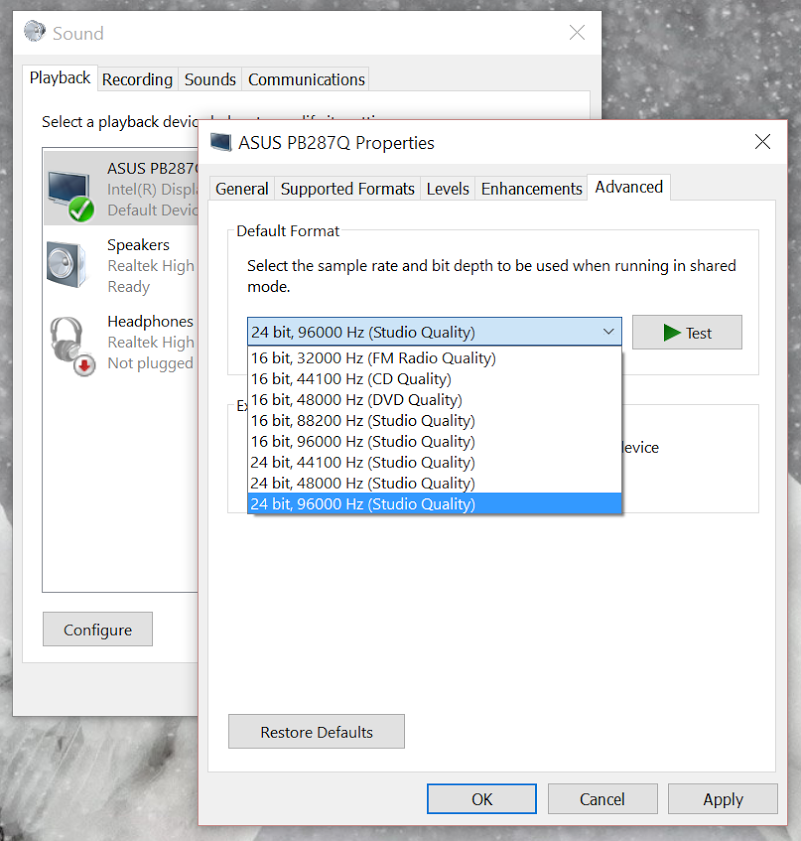

Answer:  Please check different sample rates/bits by click "Properties"->"Advanced" of the Playback Devices of Sound (Control Panel->All Control Panel Items->Sound)?













Feature Bullets
  • The active adapter connects a Mini DisplayPort (Thunderbolt Port) equipped Apple Mac, Microsoft Surface Pro, Intel NUC, or Laptop/Desktop PC to HDTVs, projectors, displays with HDMI input and support up to 4K resolution.
  • Built with Parade PS171 chipset that enables active protocol conversion from DisplayPort to HDMI and ensure AMD Eyefinity compatible.
  • Support resolutions up to 4K Ultra HD (or UHD) 3840x2160@30Hz (2160p) resolution and full HD 1080p HDTV, and stereoscopic 3D.
  • Plug & Play without software driver installation. Low power consumption No external power adapter required. Built with high quality cable and over molded strain relief design to ensure superior flex life, tensile strength, and moisture protection.
  • Compatible with Mini DisplayPort equipped laptops such as Apple MacBook, MacBook Air, MacBook Pro, Mac Mini, Mac Pro, iMac, Microsoft Surface Pro/Pro 2/Pro 3, DELL XPS, HP Envy, Lenovo ThinkPad, Google Chromebook Pixel, and most laptops/ultrabooks, etc.

Product Description

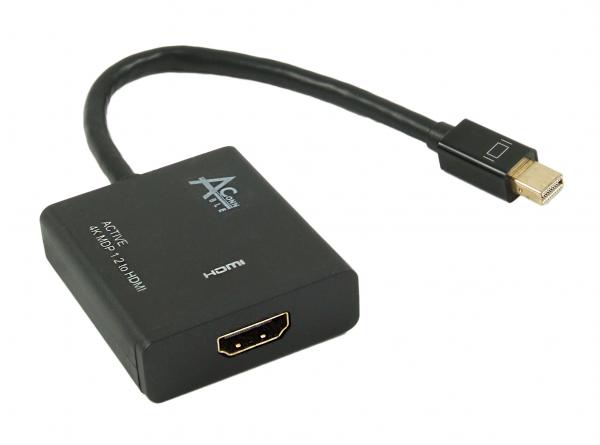

The Ableconn MDPHD4KAA is a high quality active adapter which provides an easy and cost-effective solution for connecting an HDMI display such as monitor, projector, or HDTV to your Mini DisplayPort (Thunderbolt port) equipped Mac or PC. It supports displays of up to 3840x2160@30 Hz HDTV or 4096x2160@24 Hz PC graphics and is ideal for your office, home entertainment display, conference rooms, and more.

Specifications

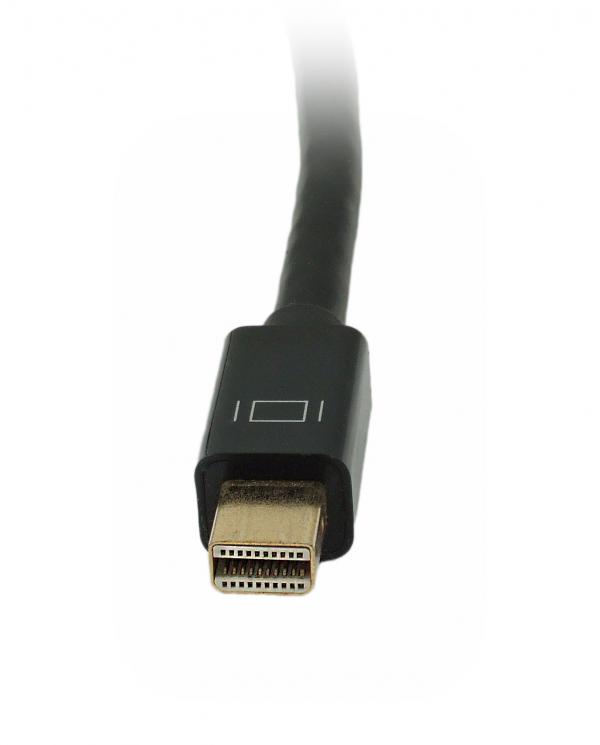

  • Input: Mini DisplayPort (Thunderbolt) male

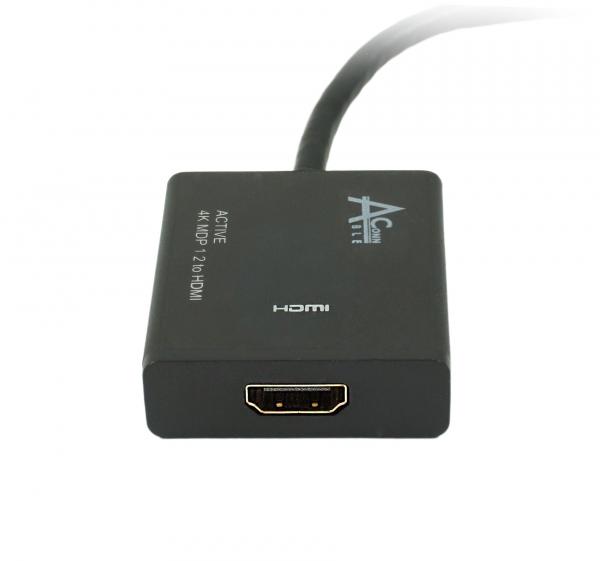

  • Output: HDMI Type-A female
  • Built with Parade PS171 chipset.
  • Active converter, AMD Eyefinity compatible.
  • Audio: 7.1 Surround Sound
  • DisplayPort 1.2 and HDMI 1.4 compliant up to 3.0Gbps (300MHz TMDS Clock)
  • Support resolutions up to 4K UHD 3840 x 2160@30Hz 24 bit color and Stereoscopic 3D 1080p@120Hz
  • Supported Resolutions:
    • PC: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1360x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 2048x1152, 2048x1536, 2048x2160, 2560x1080, 2560x1440, 2560x1600, 3840x2160@30Hz , 4096x2160@24Hz
    • HDTV: 480i, 576i, 480p, 576p, 1080i, 1080p, 2160p@30Hz
  • Certification: FCC, CE

Note: Mini DisplayPort is only availabe on newer models of Mac. Macs made before 2010 are NOT able to provide audio signals through the Mini DisplayPort.



Compatibility

  • Apple MacBook, MacBook Pro, MacBook Air, iMac, Mac Mini, Mac Pro; Microsoft Sureface Pro/Pro 2/Pro 3, DELL XPS, HP Envy, Lenovo ThinkPad, Google Chromebook Pixel, and most laptops with Mini DisplayPort interface.

Package Contents
  • Ableconn Active Mini DisplayPort to HDMI Adapter

Warranty
  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   The adapter doesn't work with my Macbook Pro mid 2012 for 4K display. It only puts out 1080p, please help...
Answer:

Thunderbolt of MacBook Air 2014 is not "Thunderbolt 2" according to Apple support:

https://support.apple.com/en-us/HT204154

---------------------------------------------------------------------

5. Which Macs have Thunderbolt 2 ports?

The following models are Thunderbolt 2 capable:

MacBook Air (13-inch, Early 2015)

iMac (Retina 5K, 27-inch, Late 2014)

Mac mini (Late 2014)

MacBook Pro (Retina, 13-inch, Late 2013) and later

MacBook Pro (Retina, 15-inch, Late 2013) and later

Mac Pro (Late 2013)

------------------------------------------------------------------------

Thunderbolt 1st version is DP 1.1 compliant. The root cause could be on system port.

Q 2 .   The adapter video is fine but the audio is dropping?
Answer:

Please check different sample rates/bits by click "Properties"->"Advanced" of the Playback Devices of Sound (Control Panel->All Control Panel Items->Sound)?
