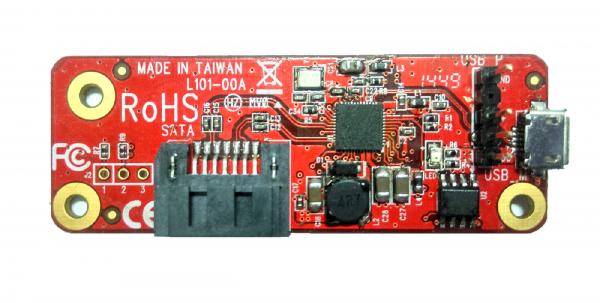

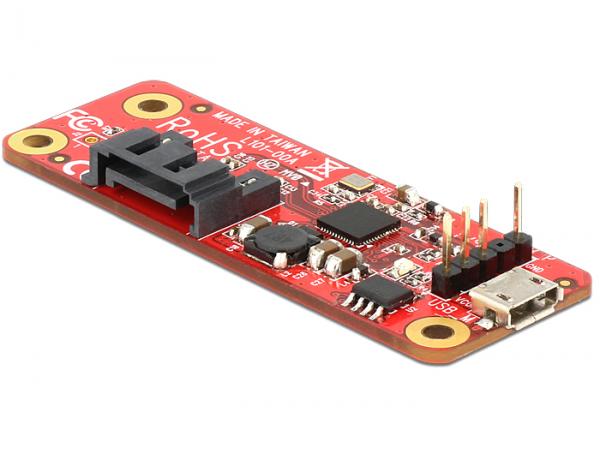

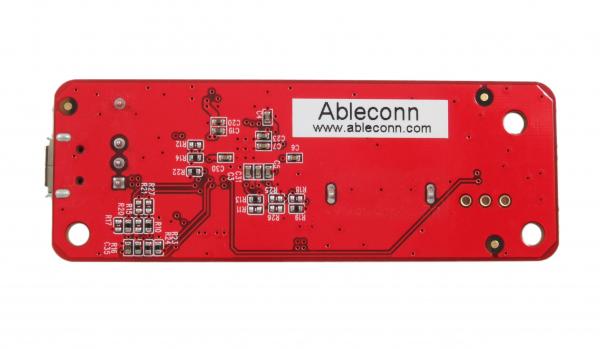

Ableconn PIUSB2SAT USB to SATA Converter Expansion Board for Raspberry Pi

Ableconn PIUSB2SAT USB to SATA Converter Expansion Board for Raspberry Pi

  • Product Specification:

    • Dimensions 2.6 x 0.4 x 0.9 inches / 66 x 10 x 22.9 mm
    • Weight 0.3 oz / 8.5 g
    • Capacity USB 2.0 up to 480 Mbps
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets
  • Connect Raspberry Pi USB to SATA device
  • Supports any type of SATA Device (SSD, DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk), SATA III, SATA II and SATA I drives.
  • Compliant with USB 2.0 Specfication, OHCI Specification for USB Rev 1.0a, EHCI Specification Rev. 0.95. Compliant with Serial ATA Specification Revision 2.6. Supports Serial ATA transfer rate of 6.0 Gbps.
  • Support both USB micro-B connector and USB 5-Pin Pin header on board for Pi connection
  • CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description
The Ableconn PIUSB2SAT let you easily install and utilize any type of SATA device to your Raspberry Pi!

Specification
  • Connect Raspberry Pi USB to SATA device
  • Supports any type of SATA Device (SSD, DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk)
  • Supports SATA III, SATA II and SATA I drive
  • Compliant with Serial ATA Specification Revision 2.6
  • Supports Serial ATA transfer rate of 6.0 Gbps
  • Supports ATA/ATAPI Packet Command Set
  • Supports ATA/ATAPI LBA 48 Addressing mode
  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
  • Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

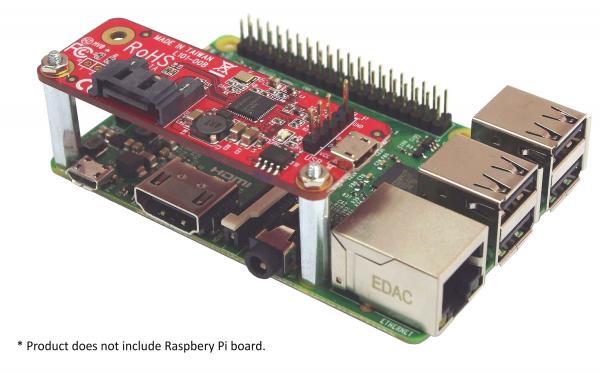

  • Support both USB micro-B connector and USB 5-Pin Pin header on board for Pi connection
  • Fully RoHS compliant.

Package Contents
  • Ableconn PIUSB2SAT USB to SATA Converter Board
  • Quick Installation Guide

Warranty
  • Limited One-Year Warranty and Lifetime Product Support
