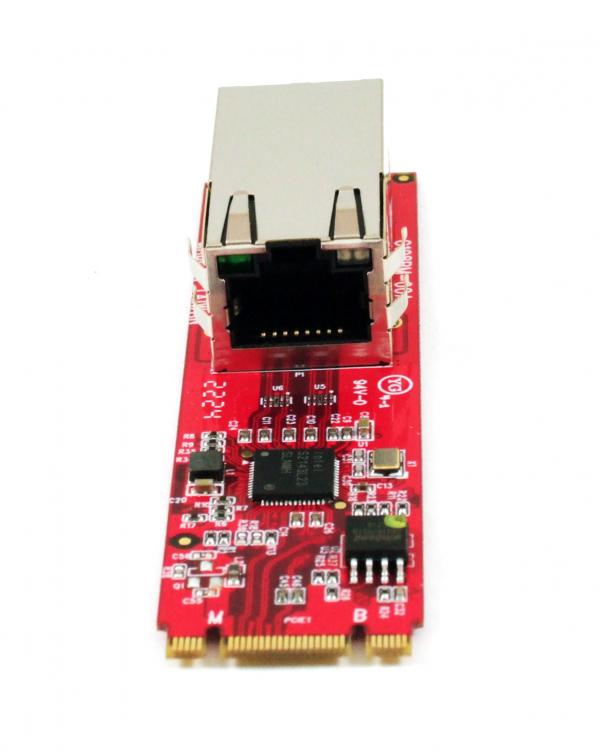

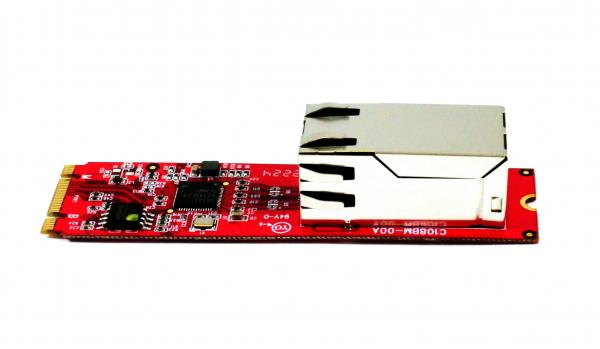

Ableconn M2NW108BM 2.5 GbE Base-T M.2 B-M Key Ethernet Module (Right Angle RJ-45) - Intel I225 Ethernet Controller

Ableconn M2NW108BM 2.5 GbE Base-T M.2 B-M Key Ethernet Module (Right Angle RJ-45) - Intel I225 Ethernet Controller

  • Product Specifications:

    • Dimensions 3.2 x 0.9 x 0.7 inches / 80 x 22 x 19 mm
    • Weight 0.5 ounces / 13.6 g
    • Capacity 2.5 Gigabit Ethernet
    • Chipset Intel I225-V Ethernet Controller
    • Supported System Drivers built in on MacOS 10.16.5 and later; Linux Kernel 5.8 and beyond, Linux RHEL 8.1, 8.4, SLES 12, FREE BSD. Intel Windows Drivers
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  •     Compact M.2 PCIe 2.5 GbE Ethernet module with RJ-45 connector on board.
  •     M.2 NGFF type 2280-D5-B-M Dual B-M Key notch 75Pin 85mm 2.5 GbE Ethernet module.
  •     Powered by Intel I225 Ethernet controller
  •     Drivers available for 32/64 bit Windows. The drivers are built in on MacOS 10.16.5 and later; Linux Kernel 5.8 and later.
  •     Fully RoHS compliant. Made in Taiwan.



Product Description


The Ableconn M2NW108BM allows you to add a PCIe x1 High-Speed 2500 / 1000 /100 /10 Mbps BASE-T RJ-45 Ethernet Gigabit LAN through your IPC M.2 B Key or M Key slot.


Features

  • Connector:
    •  1x type 2280-D5-B-M Dual B-M Key notch M.2 75-pin 80nm Male
    •  1x RJ-45 Female



  • Controller: Intel I225-V Ethernet Controller



  • Software:
    •  Drivers built in on MacOS 10.16.5 and later; Linux Kernel 5.8 and beyond, Linux RHEL 8.1, 8.4, SLES 12, FREE BSD
    •  Intel Windows Drivers.



  • Work with main board M.2 B Key Socket and M.2 M Key Socket
  • Fully compliant with 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
  • Compliant with PCI Express Gen 2 version 3.1
  • RJ-45 Port offer high speed transmission over CAT 5 UTP cable
  • 2 LEDs indicate for various network activities (2500 and LNK/ACT)
  • IEEE 802.3u auto-negotiation conformance
  • Carrier extension support (half duplex)
  • Half duplex operation at 10BASE-Te and 100BASE-TX
  • Automatic polarity correction; Network proxy/ARP offload; PXE Support
  • Error Correcting Memory (ECC) in packet buffers
  • UDP and TCP Transmit Segmentation Offload (TSO)
  • SCTP receive and transmit integrity offload
  • Queues: 4 Tx and 4 Rx queues
  • Jumbo Frame sizes 9K bytes
  • Dimensions: 3.2 x 0.9 x 0.7 in / 80 x 22 x 19 mm
  • Weight: 0.5 oz / 14 g
  • Fully RoHS compliant
  • Made in Taiwan




Package Contents



  • Ableconn M2NW108BM M.2 2.5 GbE BASE-T Ethernet Module
