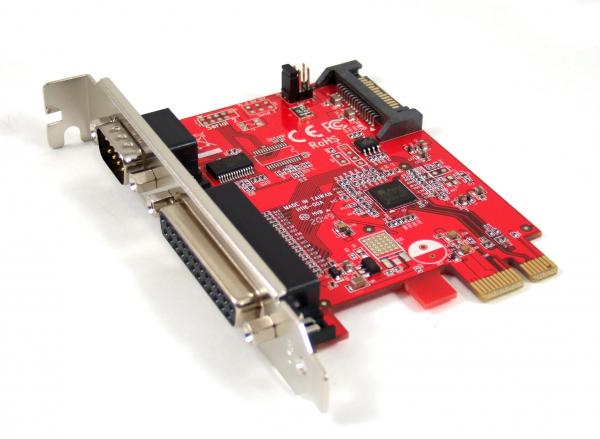

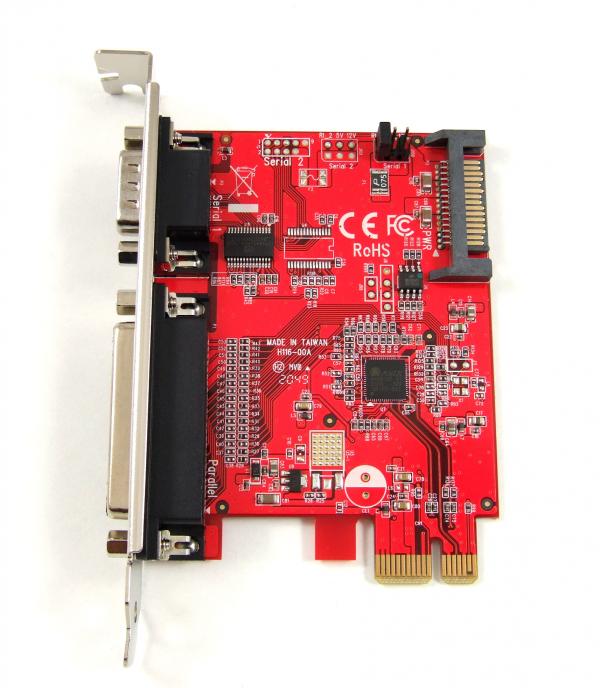

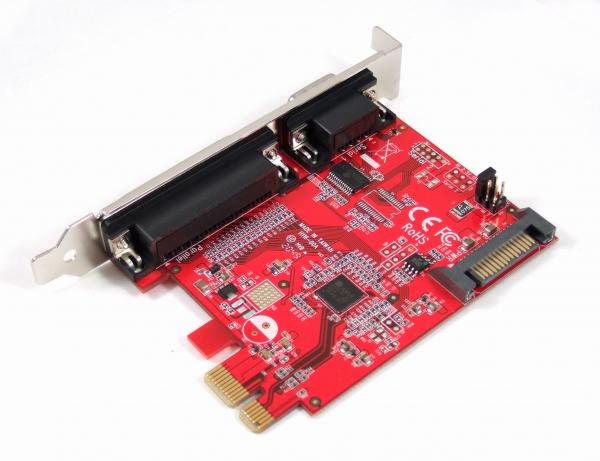

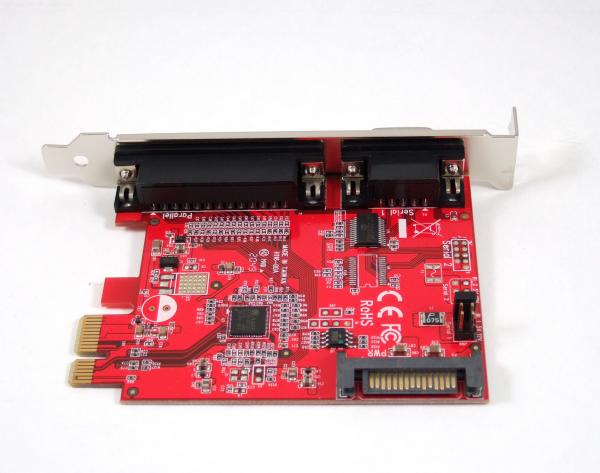

Ableconn PEX-IO116 PCI Express Combo Adapter Card with 1x RS232 Serial Port and 1x IEEE 1284 Parallel Port (ASIX AX99100 Controller) - PCIe to Serial DB9 and Parallel DB25

Ableconn PEX-IO116 PCI Express Combo Adapter Card with 1x RS232 Serial Port and 1x IEEE 1284 Parallel Port (ASIX AX99100 Controller) - PCIe to Serial DB9 and Parallel DB25

  • Product Specifications:

    • Dimensions 3.7 x 3.1 x 0.9 inches / 95 x 78 x 20 mm
    • Weight 2.2 ounces / 62 g
    • Capacity PCIe 1x Lane; RS232 speeds up to 921.6Kbps; Parallel Port speeds up to 1.5MB/s (or 2.5Mbps)
    • Chipset ASIX AX99100
    • Supported System Support Windows 7 and later; Windows Server 2003 and later; and Linux 2.6 and later versions.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • One lane PCIe x1 card with 1x RS232 Serial Port and 1x DB25 Parallel (IEEE 1284) Port
  • Built with ASIX AX99100 Controller. Serial Port: 16C950 UART with 256 byte FIFO buffer, supports RS232 speeds up to 921.6Kbps. Parallel Port: IEEE 1284 Compliant with SPP/Byte/ECP modes, supports Speeds up to 1.5MB/s (or 2.5Mbps).
  • Jumper Selection for RI/5V/12V in Pin9 of DB9M Serial Port (5V & 12V power via 15Pin power connector from power supply) for POS device use. The combo card is an ideal solution for connecting many applications scuh as POS, bank teller systems, ATM, kiosks,
  • Support Windows 7 and later; Windows Server 2003 and later; and Linux 2.6 and later versions.
  • High Quality. Fully RoHS compliant. Made in Taiwan.


Product Description



Add one DB9M serial port RS232 and one DB25 Parallel port to your PCIe Computer. It is an ideal solution for connecting many applications scuh as POS, bank teller systems, ATM, kiosks, and automated machines for cash drawers, receip printers, card swipers/readers, scales, scanners, printers, medical equipment, etc.


Features

  • Connector:
    • 1x DB9 RS232 serial (male)
    • 1x DB25 parallel (female)
    • 1 x 15-pin SATA power (optional power input to add power to the pin 9 of the DB9M serial port when using 5V or 12V mode)
    • PCI Express x1 Male



  • Controller: ASIX AX99100



  • Software:
    • Drivers support for Windows 7 and later; Windows Server 2003 and later; and Linux 2.6.X and later versions.



  • One DB9 male RS232 16C950 High performance UART channel
  • 256-byte deep FIFO per transmitter and receiver
  • One lane PCI Express x1 host interface. Compliant with PCI Express 2.0
  • Compliant with PCI Power Management 1.2
  • Superset and backward compatible to 16C550, 16C650, 16C750 and 16C850
  • Jumper Selection for RI / 5V / 12V in Pin9 of DB9M Serial Port (5V & 12V power via 15Pin power connector from power supply) for POS device use
  • RS232 Supports data transfer rate up to 1 Mbps
  • One DB25 female Parallel Port "
  • IEEE1284 Compliant SPP/Byte/ECP parallel port "
  • Fast data rates up to 1.5 Mbytes/s (parallel port)
  • Operating Temperature : -40 ~ +85 °C
  • Storage Temperature : -40 ~ +85 °C
  • Operating Humidity : 20％ to 80％
  • Storage Humidity : 15% to 90％
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PCIe 1S1P Combo Card
