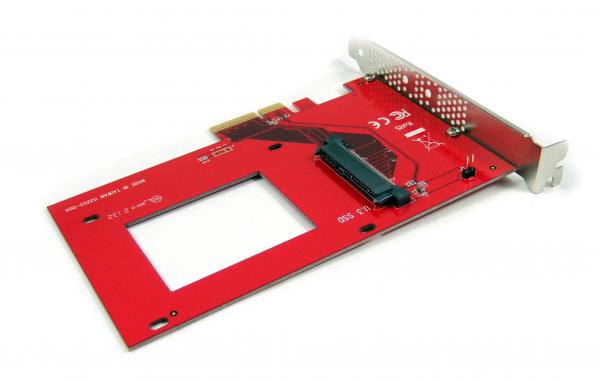

Ableconn PEXU3-132 2.5-inch U.3 SSD PCIe 4.0 x4 SFF-TA-1001 Carrier Adapter Card

Ableconn PEXU3-132 2.5-inch U.3 SSD PCIe 4.0 x4 SFF-TA-1001 Carrier Adapter Card

  • Product Specifications:

    • Dimensions 6.2 x 3.8 x 0.6 inches / 158 x 96 x 16 mm
    • Weight 2.1 ounces / 60 g
    • Capacity PCIe 4.0 x4 Lanes
    • Supported System No driver installation required. Support Windows 11/10/8, Server 2012 R2, Linux, etc.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • Mount a 2.5-inch U.3 SSD onto a PCI Express Add-in card and install on a PCIe x4 slot. No cables are required.
  • The adapter is a PCI Express 4.0 4-lane Host adapter. Supports PCIe 4.0 and PCIe 3.0 motherboard.
  • The SFF-TA-1001 SFF-8639 interface socket is for U.3 SSD. Note: the product does not support U.2 SSD
  • No driver installation is required. Windows 11/10/8, Windows Server 2012 R2 and later; Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support U.3 SSD.
  • Fully RoHS compliant. Made in Taiwan.


Product Description



The PEXU3-132 allows you to install an Extremely High Performance Enterprise-Class 2.5” U.3 SSD on SFF-TA-1001 slot PCIe Card for Enthusiast Gaming and Workstation Markets!


Features

  • Connector:
    • 1x SFF-TA-1001 SFF-8639 (68 Pin female) interface slot for 2.5-in U.3 SSD



  • Software:
    • No driver installation is required.
    • Windows 11/10/8, Windows Server 2012 R2 and later; Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support U.3 SSD.
    • Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD



  • System Requirement:
    • An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.



  • Install U.3 2.5-inch SSD on a PCI Epress Add-in Card directly and work with motherboard PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Host adapter
  • Compliant with PCI Express 4.0. Supports PCIe 4.0 and PCIe 3.0 motherboards.
  • Transparent to the operating system and no driver required
  • Operating Temperature : 0 ~ 60 °C
  • Storage Temperature : -40 ~ +85 °C
  • Operating Humidity : 20％ to 80％
  • Storage Humidity : 15% to 90％
  • Fully RoHS compliant
  • Made in Taiwan

Note: SFF-TA-1001 SFF-8639 interface socket is for U.3 SSD. It does not support U.2 SSD.


Package Contents

  • Ableconn 2.5-inch U.3 SSD PCIe x4 Carrier Adapter Card
  • 4x drive mounting screws



Warranty

  • Limited One-Year Warranty and Lifetime Product Support
