Feature Bullets
-

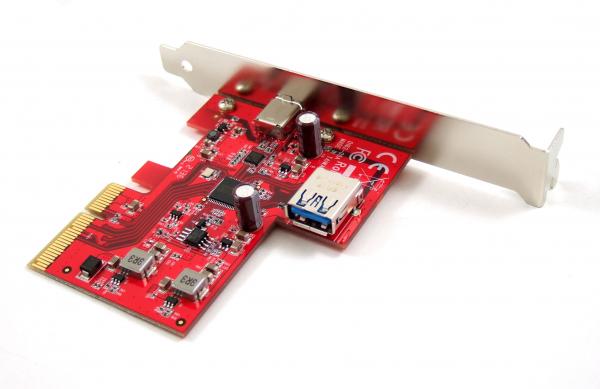

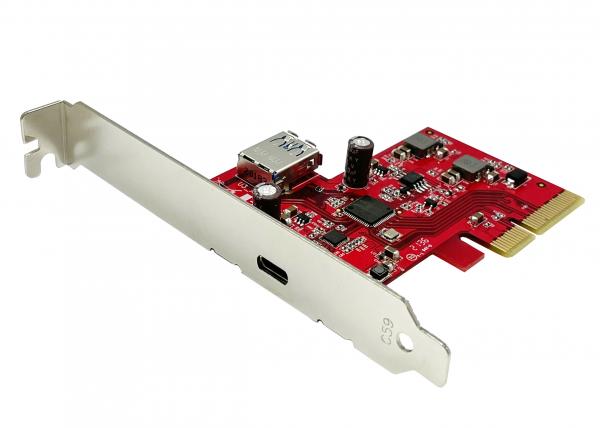

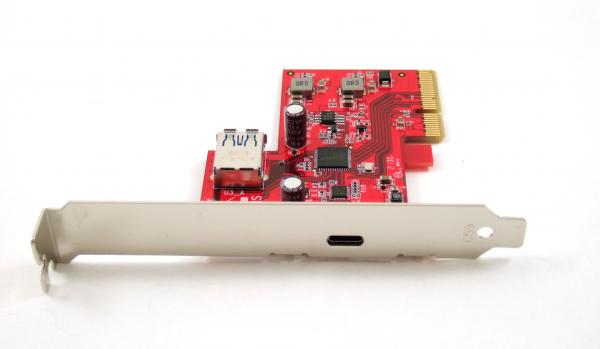

Add one external USB-C and one internal USB Type-A ports to your system. Up to 10Gbps data transfer speed, twice as fast as USB 3.0.
-
Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
-
Overcurrent Protection. Support up to 3A/5V on USB-C, 2A/5V on USB-A downstream ports.
-
No driver installation is required on MacOS 10.8 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.2), Win11/10/8, Server 2012 and later; Linux 2.6.31 and later.
-
Built with ASMedia ASM3142. Fully RoHS compliant. Made in Taiwan. Note: The card does not support DP Alt Mode or USB Power Delivery.
Product Description
Add one External USB-C and one Internal USB-A ports with up to 10Gbps data rate to your system.
Features
-
Connector:
-
1x Type-A Internal + 1x Type-C External USB 3.2 female
-
PCI Epress x4 Male
-
Controller: ASMedia ASM3142
-
Software:
-
No driver installation is required on MacOS 10.8 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.2), Windows 11/10/8, Server 2012 and later, Linux 2.6.31 and later.
-
The ASMedia driver for 32/64 bit Windows 7/Vista, and Server 2008/2003 is available from our website.
-
Data transfer rate:
-
USB 3.2 Gen2 up to 10 Gbps
-
Power:
-
Support up to 3A/5V on USB-C and 2A/5V on USB-A downstream ports.
-
Each USB port can provide up to 3A/5V or 2A/5V power. If full loaded, it requires at least 25W (3A*5V + 2A*5V) power. The power supply from PCIe bus to a 4-lane/low profile card is 25W (max) per PCI Express specification.
-
Overcurrent Protection.
-
System Requirement:
-
An empty PCIe 3.0 x4, x8, or x16 slot for USB3.2 Gen2 10Gbps full performance
-
USB3.2 10Gbps PCIe x4 Lane Host Adapter Card powered by ASM3142 with PCIe Gen3 x2 Lane performance
-
Supports PCIe 1.0, 2.0, or PCIe 3.0 motherboard
-
Compliant with PCI Express Specification 3.0
-
Compliant with USB 3.2 Spec. Rev. 1.0, Intel xHCI Spec. 1.1
-
Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
-
Support USB3.2, USB3.1, USB3.0, USB2.0, and USB1.1 devices.
-
Low Profile PCIe Form Factor board
-
Regular size PCIe bracket on board and Low Profile PCIe Bracket included
-
Operating temperature range: 0 - 85 °C
-
Storage temperature range: -25 - 85 °C
-
Fully RoHS compliant
-
Made in Taiwan
Note: The card does not support DP Alt Mode or USB Power Delivery.
Package Contents
-
Ableconn USB 3.1 2-Port PCIe x4 Card
-
One low profile PCIe bracket
