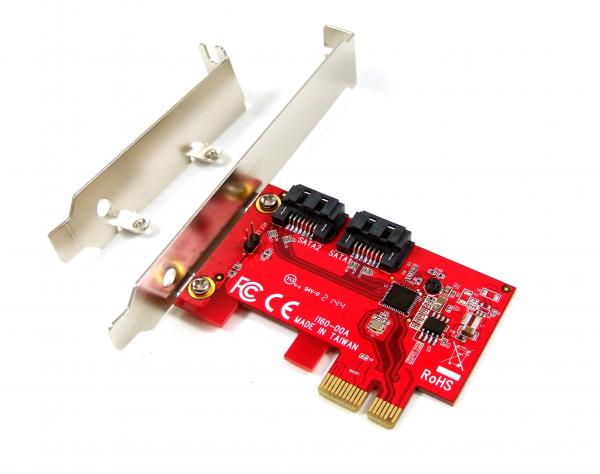

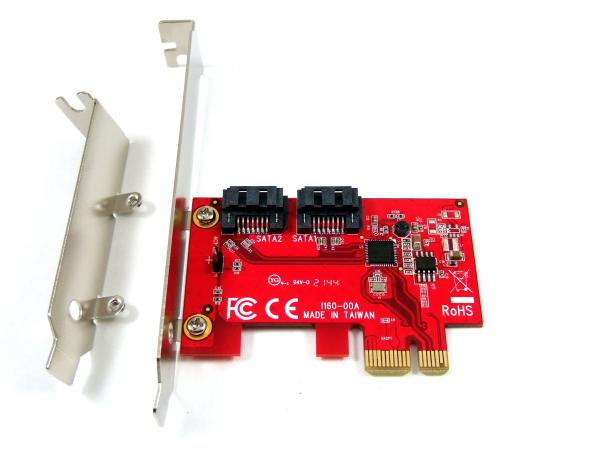

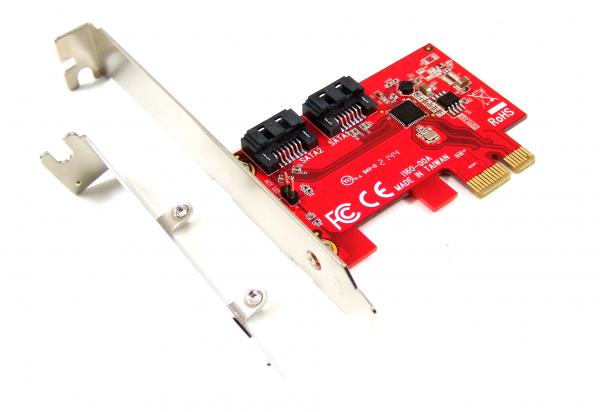

Ableconn PEX-SA160 PCIe x1 SATA III 6Gbps AHCI 2-Port Low Profile Host Adapter Card (ASMedia ASM1061 Controller)

Ableconn PEX-SA160 PCIe x1 SATA III 6Gbps AHCI 2-Port Low Profile Host Adapter Card (ASMedia ASM1061 Controller)

  • Product Specifications:

    • Dimensions 3 x 2.1 x 0.7 inches / 76 x 52 x 18 mm
    • Weight 1.1 ounces / 28 g
    • Capacity PCIe 2.0 x1 Lanes; 6Gbps SATA III
    • Chipset ASMedia ASM1061
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on most Operating Systems.
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with ASMedia ASM1061 controller
  • Legacy ROM on board that supports Legacy BIOS mainboard Booting for Windows and Linux. The product does not support booting for UEFI mainboards.
  • No driver installation is required on Windows 11/10/8/7/Vista, Server 2016/2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.


Product Description

Add two SATA 6G ports with up to 6 Gbps data rate to your computer.


Features

  • Connector:
    • 2 x SATA (7 pin; DATA) Plug
    • PCI Express x1 Male



  • Controller: ASMedia ASM1061



  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2016/2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Legacy ROM on board that supports Legacy BIOS mainboard Booting for Windows and Linux. The product does not support booting for UEFI mainboards.



  • Data transfer rate:
    • Up to 6 Gbps



  • System Requirement:
    • An empty PCIe x1, x4, x8, or x16 slot.



  • Easy installation 6Gbps SATA III PCIe Gen2 x1 Host Adapter
  • Compliant with PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.0
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Hot-plug, and Native Command Queuing (NCQ)
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Pin headers on board for Device LED connection
  • On board legacy ROM code supports Legacy BIOS mainboard with Windows & Linux boot, but UEFI mainboard non-boot
  • Operating temperature range: 0 - 85 ºC
  • Power Consumption: 1.0 Watt
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents



  • 2-Port SATA 6G AHCI PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
