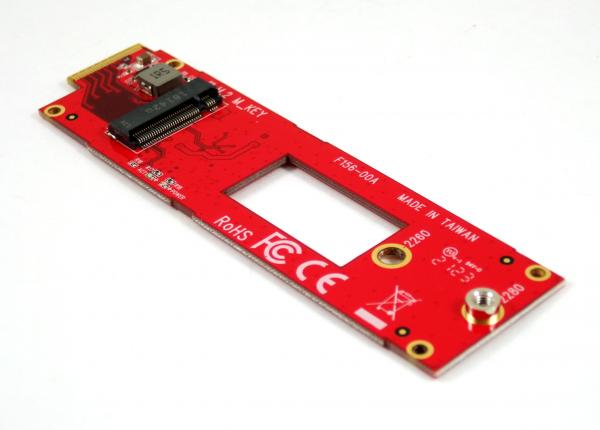

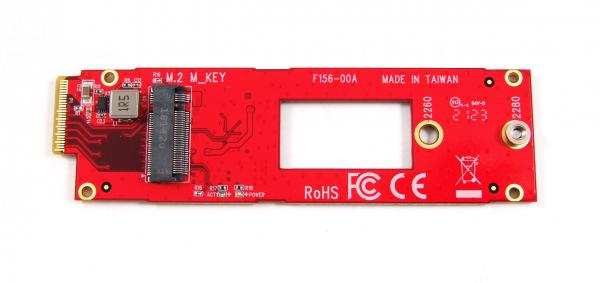

Ableconn E1S-DT156 NVMe M.2 SSD to NVMe EDSFF E1.S SSD Adapter

Feature Bullets

Convert a PCIe-NVMe M.2 SSD to an EDSFF E1.S SSD
M.2 NGFF type 2280-D5-M M Key socket on board. Compliant with PCI Express 4.0 x4 Lane.
Supports PCIe Gen4 and Gen3 x4 Lane M.2 80mm, 60mm NVMe SSD
No driver installation is required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe.
Fully RoHS compliant. Made in Taiwan.

The Ableconn E1S-DT156 allows you to convert a M.2 NVMe SSD to an EDSFF E1.S NVMe SSD.

Software:
- No driver installation is required.
- Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe
- Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD

Convert PCIe-NVMe M.2 SSD to EDSFF E1.S SSD
Compliant with PCI Express 4.0 x4 Lane
M.2 NGFF type 2280-D5-M M Key socket on board
Supports PCIe Gen4 and Gen3 x4 Lane M.2 80mm, 60mm NVMe SSD
Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 SSD
Supports dual-sided SSD module 1.5mm component height on the top and bottom side
Temperature: Operating 0 - 85 ºC; Non-Operating -25 - 85 ºC
Humidity: Operating 20% - 80%; Non-Operating 15% - 90%
Fully RoHS compliant
Made in Taiwan
