PEXE1S159 PCIe 4.0 x4 Host Adapter for EDSFF E1.S NVMe SSD - NVMe E1.S SSD PCIe Carrier Adapter

PEXE1S159 PCIe 4.0 x4 Host Adapter for EDSFF E1.S NVMe SSD - NVMe E1.S SSD PCIe Carrier Adapter

  • Product Specifications:

    • Dimensions 5.8 x 2.4 x 0.3 inches / 149 x 61 x 10 mm
    • Weight 1.3 ounces / 37 g
    • Capacity PCIe 4.0 x4 Lanes
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • PCIe x4 Lane card for EDSFF E1.S 10mm NVMe SSD to work in a main board PCIe x4 bus slot
  • Compliant with PCI Express 4.0.
  • Low profile PCIe form factor card; Regular size PCIe bracket on board and a low Profile bracket included
  • No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs.
  • Fully RoHS compliant. Made in Taiwan.



Product Description

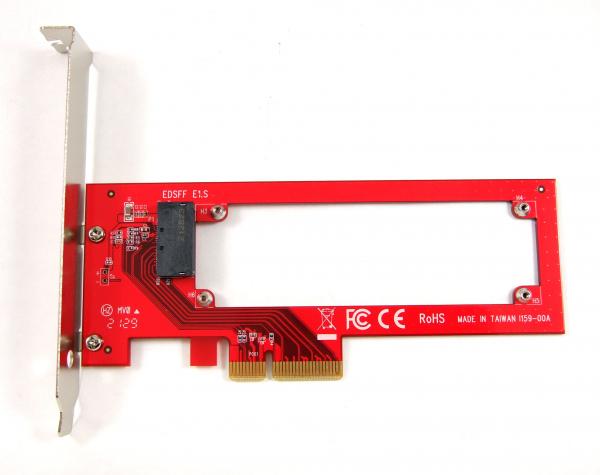

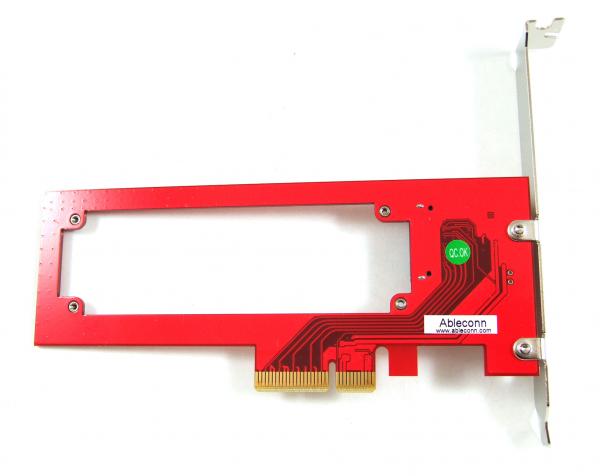

The PEXE1S159 allows you to install an EDSFF E1.S NVMe SSD through a Low Profile PCIe 4.0 x4 card to your PC System.


Features

  • Connector:
    • 1x EDSFF E1.S 110mm socket on board for E1.S NVMe SSD
  • Software:
    • No driver installation required.
    • Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support PCIe-NVMe SSD
    • Mac Pro 2009, 2010 and 2012 models installed with High Sierra macOS 10.13 and later versions support PCIe-NVMe SSD



  • System Requirement:
    • An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.



  • PCIe 4.0 x4 NVMe EDSFF E1.S 110mm SSD work in main board PCIe x4 bus slot
  • PCI Express 4.0 x4 Lane Carrier adapter
  • Compliant with PCI Express 4.0
  • Low profile PCIe form factor board with Regular size bracket. A low profile bracket is included.
  • Support PCIe L1 Power Management Substates with CLKREQ
  • Supports operating temperature range: -40 - 80 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn EDSFF E1.S NVMe SSD PCIe 4.0 x4 Adapter Card
  • 1x low profile PCIe bracket
  • 1x mounting screw


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
