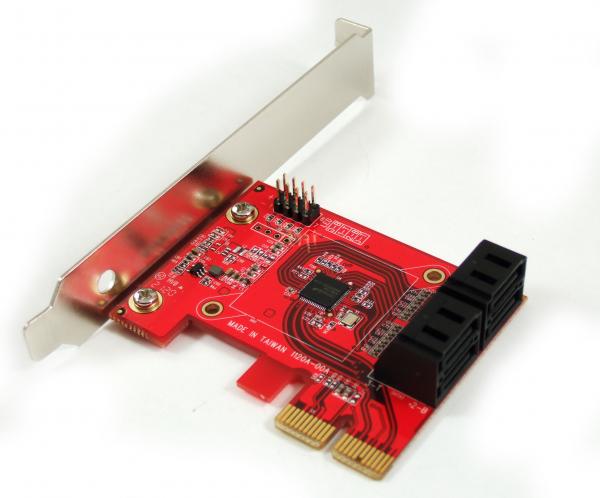

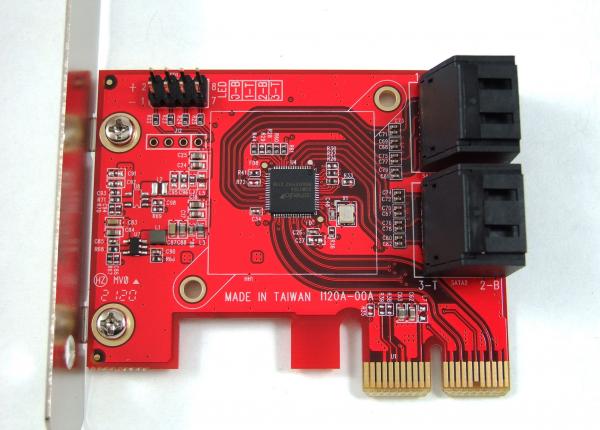

PEX-SA120 4-Port SATA 6G PCI Express x2 Host Adapter Card - AHCI 6Gbps SATA III Port-Multiplier PCIe 3.0 2-Lane Low Profile Controller Card (ASMedia ASM1164)

PEX-SA120 4-Port SATA 6G PCI Express x2 Host Adapter Card - AHCI 6Gbps SATA III Port-Multiplier PCIe 3.0 2-Lane Low Profile Controller Card (ASMedia ASM1164)

  • Product Specifications:

    • Dimensions 2.8 x 2.4 x 0.7 inches / 72 x 55 x 18 mm
    • Weight 1.3 ounces / 36 g
    • Capacity PCIe 3.0 x2 Lanes; 6Gbps SATA III
    • Chipset ASMedia ASM1164
    • Compatibility No driver installation is required on Windows 11/10/8/7/Vista, Server 2008 and later, Linux, Mac 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • 4 SATA III ports with transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • PCIe x2 Lanes board with combo UEFI and Legacy Boot ROM enable the support of both UEFI and Legacy BIOS motherboards.
  • Support SATA Command-based Port Multiplier switching and up to 20 SATA drives via six 5-port PM connections.
  • No driver installation is required on Windows 11/10/8/7/Vista, Server 2008 and later; Linux; Mac OS 10.x and later.
  • Fully RoHS compliant. Made in Taiwan.




Product Description


Add four SATA 6G ports with up to 6 Gbps data rates to your UEFI or Legacy computer.


Features



  • Connector:
    • 4x SATA (7 pin; DATA) Plug
    • PCI Express x2 Male
  • Chipset: ASMedia ASM1164



  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2008 and later; Linux; Mac 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Boot ROM on board support OS Booting for Windows and Linux
    • Combo UEFI & Legacy (CSM) Boot ROM supports both UEFI and Legacy BIOS mode



  • Data transfer rate:
    • Up to 6 Gbps



  • Number of Ports That Support Port Multiplier: 4
  • Number of Drives Supported Through Port Multiplier: 1 to 5



  • System Requirement:
    • An empty PCIe x2, x4, x8, or x16 slot.



  • Supports PCIe 3.0 and PCIe 2.0 motherboards
  • Compliant with PCI Express 3.0
  • Fully compliant with Serial ATA 3.2 and AHCI rev 1.4
  • Supports SATA Port Multiplier, HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Command-based Port Multiplier and up to 30 SATA drives via 6x 5-port PMs
  • Supports SATA Hot-plug, and Native Command Queuing (NCQ)
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Pin headers on board for Device LED connection
  • Temperature: Operating 0 - 85 ºC; Non-Operating -25 - 85 ºC
  • Humidity: Operating 20% - 80%; Non-Operating 15% - 90%
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • 4-Port SATA 6G AHCI PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide
