PEX-OL153 PCIe OCuLink SFF-8612 Adapter Card - PCI Express 4.0 4-Lane Card

PEX-OL153 PCIe OCuLink SFF-8612 Adapter Card - PCI Express 4.0 4-Lane Card

  • Product Specifications:

    • Dimensions 3.2 x 1.8 x 0.3 inches / 80 x 45 x 6 mm
    • Weight 1 ounces / 28 g
    • Capacity PCIe 4.0 x4 Lane
    • Compatibility Intel 750 series U.2 2.5-inch SSDs and other U.2 SSDs
    • Supported System No driver installation required. Support Windows 10/8, Server 2012 R2 and later, Linux, etc.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets


  • Connect the 2.5-inch U.2 (SFF-8639) PCIe-NVMe SSD to a PCIe x4 slot in a system via a SFF-8639 to OCuLink SFF-8612 cable
  • The adapter is a PCI Express 4.0 4-lane Host adapter for low profile or standard height systems. Support PCIe 4.0 and PCIe 3.0 motherboards.
  • Work with 2.5-inch U.2 SFF SSD. Such as Intel 750 series.
  • No driver installation is required. Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe
  • Fully RoHS compliant. Made in Taiwan.



Product Description



The Ableconn PEX-OL153 allows you to install a PCIe-NVMe U.2 2.5-inch SSD drive (such as Intel 750 U.2 SSD) through a Low Profile PCIe x4 card to your computer. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!


Features

  • Connector:

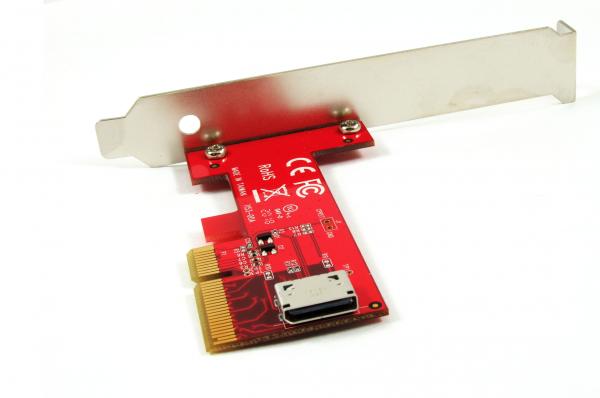

    • 1x OCuLink SFF-8612 Female



  • Software:
    • No driver installation is required.
    • Windows 10/8, Windows Server 2012 R2 and later, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe
    • Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD
  • System Requirement:
    • An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.



  • PCI Express 4.0 x4 Lane Host adapter
  • Compliant with PCI Express 4.0. Supports PCIe 4.0 and PCIe 3.0 motherboards.
  • Low Profile PCIe Form Factor

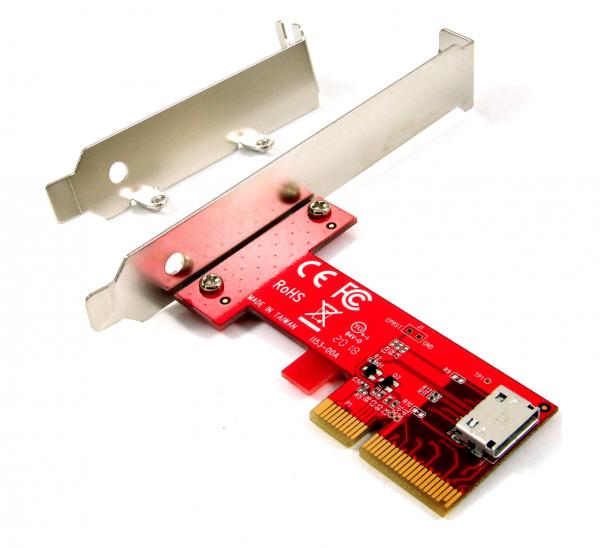

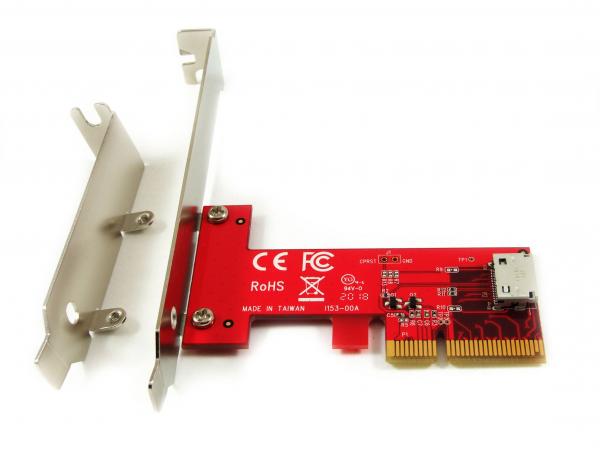

  • Low Profile PCIe bracket on board and Regular size bracket included
  • Transparent to the operating system and no driver required
  • Operating temperature range: -40°C - 85°C
  • Storage temperature range: -40°C - 85°C
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PCIe OCuLink SFF-8612 Adapter Card
  • 1x Regular profile PCIe bracket


Warranty



  • Limited One-Year Warranty and Lifetime Product Support
