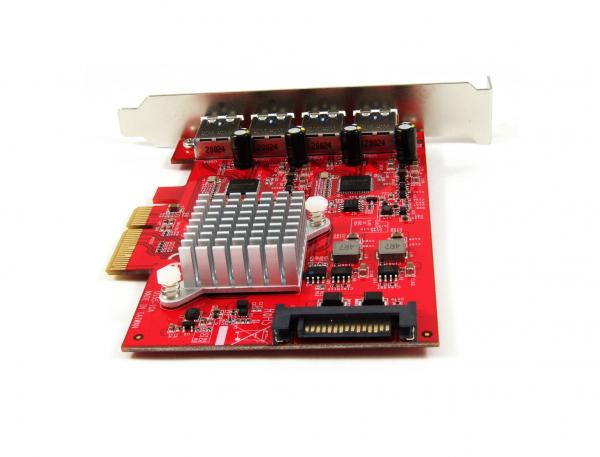

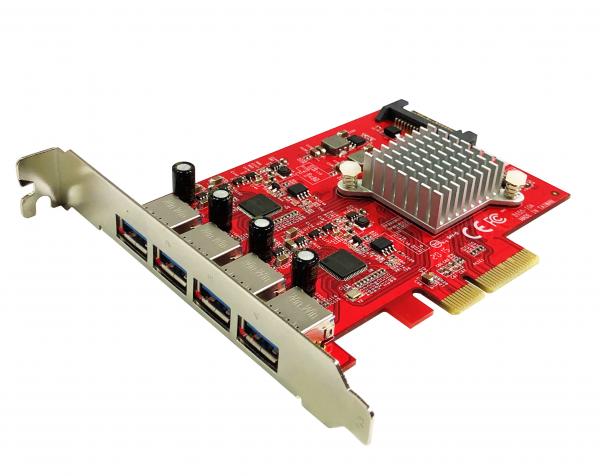

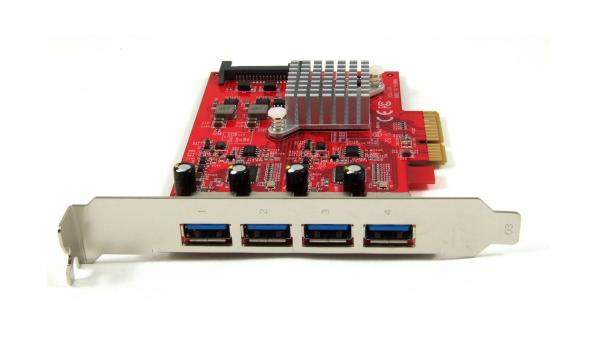

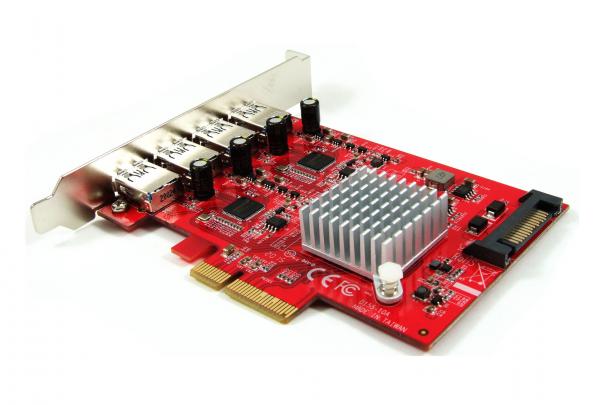

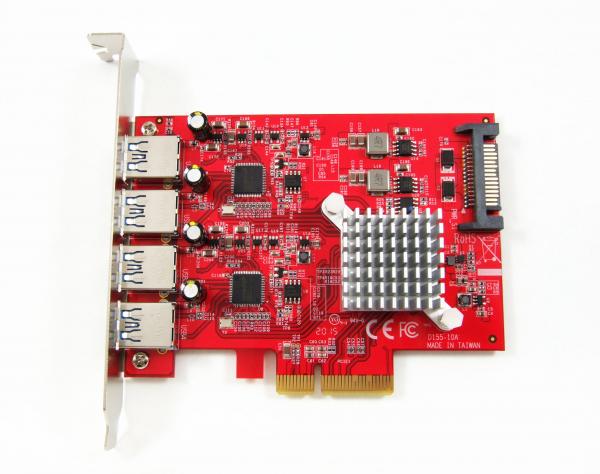

PEX-UB155 USB 3.2 Gen2 (10 Gbps) 4-Port PCIe 3.0 Card - PCI Express Gen3 x4 Lane Host Adapter Card (Dual ASMedia ASM3142 Controllers)

PEX-UB155 USB 3.2 Gen2 (10 Gbps) 4-Port PCIe 3.0 Card - PCI Express Gen3 x4 Lane Host Adapter Card (Dual ASMedia ASM3142 Controllers)

  • Product Specifications:

    • Dimensions 4.5 x 3.5 x 0.6 inches / 113 x 88 x 15 mm
    • Weight 2.8 ounces / 80 g
    • Capacity Up to 10 Gbps
    • Chipset 2x ASMedia ASM3142
    • Supported System No driver installation required on MacOS 10.8 to 10.10, and 10.12 and later; Windows 10/8, Server 2012 and later; Linux 2.6.31 and later
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets



  • Four Dedicated USB 10Gbps Ports: Add four (4x) 10Gbps USB-A ports to your system. Powered by dual ASMedia ASM3142 controllers to provide dedicated 10Gbps USB 3.2 transfer bandwidth for each port through PCIe 3.0 x4 host interface.
  • High Powered Ports: Support up to 2A/5V (10W) power on each USB-A port, total up to 8A/5V power. The USB card includes an optional SATA power connector to connect to your system power supply.
  • Over Current Protection: Independent Power Distribution Switch on each port to provide overcurrent, power glitches, and thermal shutdown production.
  • No driver installation is required onMacOS 10.8 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later.
  • Fully RoHS compliant. Made in Taiwan.



Product Description



Add Four USB 3.2 Gen2 ports with up to 10Gbps data rate to your system.


Features

  • Connector:
    • 4x Type-A USB 3.2 female
    • 1 x 15-pin SATA power connector (optional connection)
    • PCI Express x4 Male



  • Controller: 2x ASMedia ASM3142
  • Software:
    • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later, Linux 2.6.31 and later. The OS native built-in drivers feature UASP.
  • Data transfer rate:
    • USB 3.2 Gen2 up to 10 Gbps



  • Power:
    • Support up to 2A/5V on each USB-A downstream port.
    • Overcurrent Protection. Independent Power Distribution Switch on each port to provide overcurrent, power glitches, and thermal shutdown production.
    • The 15-pin SATA power connection is optional.



  • When optional 15Pin SATA power installed, the 4x USB ports are powered from system power supply instead of from motherboard PCIe bus. The power supply from PCIe bus to a 4-lane/low profile card is 25W (max) per PCI Express specification.
  • PCIe Gen3 x4 Lane Host Adapter Card
  • 4-Port 10Gbps USB 3.2 Gen2 PCIe 3.0 x4 Lane Host Adapter Card powered by two ASMedia ASM3142 controllers
  • Each USB-A port individual 10Gbps speed and 5V2A bus power, total 5V8A
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.1.
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.
  • Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB 3.1 full performance
  • Operating temperature range: 0 - 85 °C
  • Storage temperature range: -25 - 85 °C
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn USB 3.2 4-Port PCIe x4 Card
  • One low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
