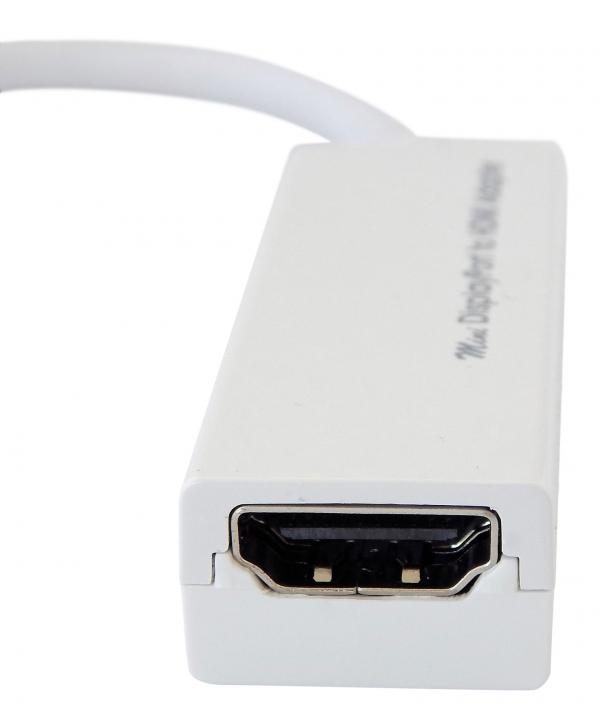

Ableconn MDP2HDMIW Mini DisplayPort (Thunderbolt Port) to HDMI Male to Female Adapter, White

Ableconn MDP2HDMIW Mini DisplayPort (Thunderbolt Port) to HDMI Male to Female Adapter, White

  • Product Specification:

    • Dimensions 8.7 x 0.5 x 0.8 inches / 220 x 127 x 206 mm
    • Weight 1.12 ounces / 31.7 g
    • Input Mini DisplayPort male
    • Output HDMI Type-A female
    • Chipset Parade PS8121E chipset
    • Certification FCC, CE
  • Buy at Amazon

Product Description

Feature Bullets

  • Connect an HDMI display to a Mini DisplayPort (or Thunderbolt Port) equipped PC or MAC.
  • Built with Parade PS8121E chipset. High quality, durable, and compact design. CE, FCC certified. EMI compliant.
  • Support resolutions up to 1920x1200 and full HD 1080p HDTV, and stereo audio.
  • Plug & Play without software driver installation. Low power consumption No external power adapter required.
  • Compatible with Mini DisplayPort equipped laptops such as Apple MacBook, MacBook Air, MacBook Pro, Mac Mini, Mac Pro, iMac, Microsoft Surface Pro/Pro 2/Pro 3, DELL XPS, HP Envy, Lenovo ThinkPad, Google Chromebook Pixel, and most laptops/ultrabooks, etc.



Product Description

The Ableconn MDP2HDMIW provides a easy and cost-effective solution for connecting an HDMI display such as monitor, projector, or HDTV to your Mini DisplayPort (or Thunderbolt port) equipped Mac or PC.
Simply connect the Mini DisplayPort  male end of the adapter into the Mini DisplayPort (or Thunderbolt Port) of Mac or PC and the HDMI  female end of the adapter to your HDMI Type-A cable from the display. (HDMI cable is not included)


Specifications

  • Input: Mini DisplayPort male
  • Output: HDMI Type-A female
  • Built with Parade PS8121E chipset.
  • Converter Type: passive
  • Audio support: stereo audio function.
  • Compliant with DisplayPort Specification v1.1a at 1.62/2.7 Gbps data rate.
  • Support Digital Video Output in 18/24/30 (deep color) bits format. (6‐bit, 8‐bit, 10‐bit per color RGB color format)
  • Support PC resolutions up to WUXGA 1920x1200 and HDTV resolutions up to Full HD 1080p 1920x1080
  • Bus-powered. Operating Power Consumption: 445 mW; Standby Power Consumption: 26 mW.
  • Certification: FCC, CE
  • Weight: 1.12 ounce
  • Dimension: 8.66"(L) x 0.81" (W) x 0.50" (H) <br />
  • Note: Mini DisplayPort is only availabe on newer models of Mac. Macs made before 2010 are NOT able to provide audio signals through the Mini DisplayPort.


Compatibility

  • Apple MacBook, MacBook Pro, MacBook Air, iMac, Mac Mini, Mac Pro; Microsoft Sureface Pro/Pro 2/Pro 3, DELL XPS, HP Envy, Lenovo ThinkPad, Google Chromebook Pixel, and most laptops with Mini DisplayPort interface.


Package Contents

  • Ableconn Mini DisplayPort to HDMI Adapter


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   Is it compatible with surface pro 3?
Answer: Yes, it works very well with Surface Pro 2 and 3.
