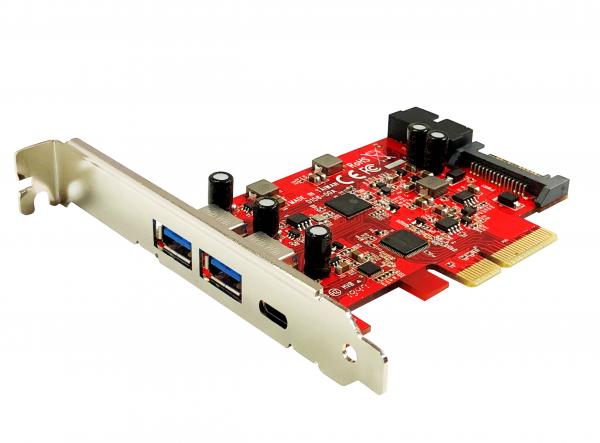

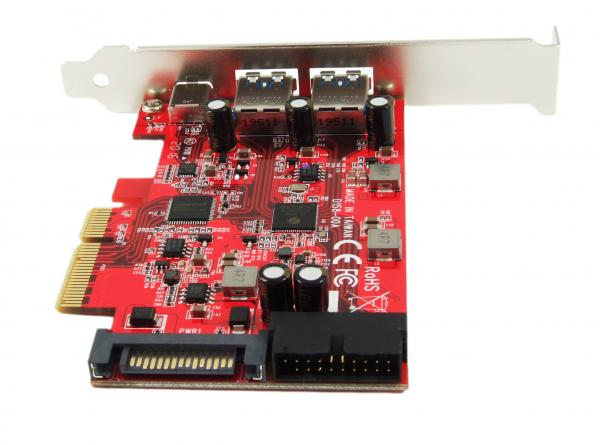

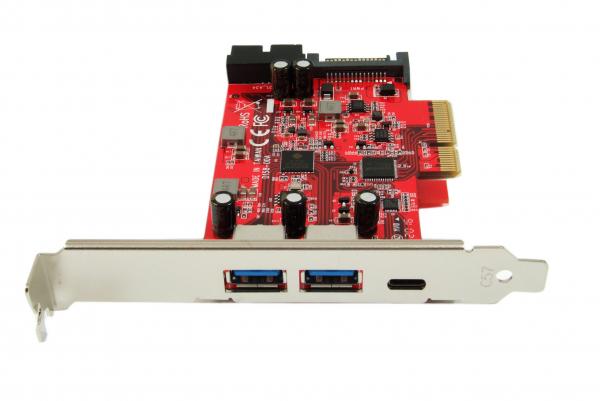

PEX-UB158 USB 3.1 5-Port PCIe 3.0 Card (1x USB-C & 2X USB-A & 1x 2-Port Internal USB Header) - USB 3.1 PCIe Gen3 x4 Lane Host Adapter Card (ASMedia ASM3142 Controller)

PEX-UB158 USB 3.1 5-Port PCIe 3.0 Card (1x USB-C & 2X USB-A & 1x 2-Port Internal USB Header) - USB 3.1 PCIe Gen3 x4 Lane Host Adapter Card (ASMedia ASM3142 Controller)

  • Product Specifications:

    • Dimensions 4 x 2.7 x 0.6 inches / 102 x 70 x 13 mm
    • Weight 2 ounces / 56 g
    • Capacity Up to 10 Gbps
    • Chipset ASMedia ASM3142
    • Supported System No driver installation required on MacOS 10.8 to 10.10, and 10.12 and later; Windows 10/8, Server 2012 and later; Linux 2.6.31 and later
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Add one external USB-C, two external USB Type-A ports, and an internal USB3 ICC header which can provide two USB 3.0 ports to your system.
  • Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
  • Overcurrent Protection. Support up to 3A/5V on USB-C, 2A/5V on USB-A downstream ports, and 2A/5V on each port of the internal header.
  • No driver installation is required onMacOS 10.8 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
  • Built with ASMedia ASM3142. Note: The card does not support DP Alt Mode or USB Power Delivery.
  • Fully RoHS compliant. Made in Taiwan.



Product Description



Features

  • Connector:
    • 2x Type-A + 1x Type-C USB 3.1 female
    • 1 x USB Dual Port Internal Connector (USB3 ICC), a 19-pin IDC header.
    • 1 x 15-pin SATA power connector (optional connection)



  • Controller: ASMedia ASM3142 + Genesys Logic GL3590
  • Software:
    • No driver installation is required on MacOS 10.8 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later, Linux 2.6.31 and later.



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps



  • Power:
    • Support up to 3A/5V on USB-C, 2A/5V on USB-A downstream ports, and 2A/5V on each port of the internal 20-pin IDC header.
    • Overcurrent Protection
    • The 15-pin SATA power connection is optional.



  • When optional 15Pin SATA power installed, the 5x USB ports are powered from system power supply instead of from motherboard PCIe bus. The power supply from PCIe bus to a 4-lane/low profile card is 25W (max) per PCI Express specification.



  • USB3.1 PCIe x4 Lane Host Adapter Card powered by ASM3142 with PCIe Gen3 x2 Lane performance
  • 5 Port USB 3.1 PCIe Card with 1x USB-C 2x USB-A + 1x 2 Port IDC (5Gbps)
  • Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB 3.1 full performance
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.1.
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.
  • Low Profile PCIe Form Factor board
  • Regular size PCIe bracket on board and Low Profile PCIe bracket included
  • Fully RoHS compliant

Note: The card does not support DP Alt Mode or USB Power Delivery (USB PD) specification.



Package Contents

  • Ableconn USB 3.1 5-Port PCIe x4 Card
  • One low profile PCIe bracket



Warranty

  • Limited One-Year Warranty and Lifetime Product Support
