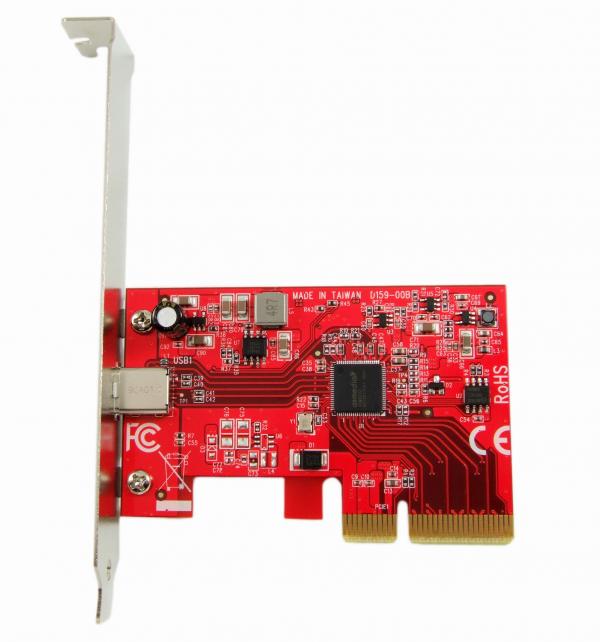

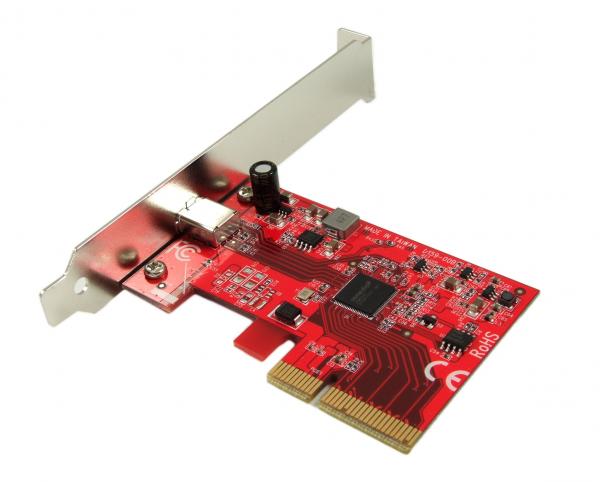

PEX-UB159 USB 3.2 Gen 2x2 (20 Gbps) 1-Port Type-C PCIe 3.0 Card - USB 3.2 Gen2x2 PCI Express Gen3 x4 Lane Host Adapter Card (ASMedia ASM3242 Controller)

PEX-UB159 USB 3.2 Gen 2x2 (20 Gbps) 1-Port Type-C PCIe 3.0 Card - USB 3.2 Gen2x2 PCI Express Gen3 x4 Lane Host Adapter Card (ASMedia ASM3242 Controller)

  • Product Specification:

    • Dimensions 3.1 x 2.1 x 0.5 inches / 80 x 52x 13 mm
    • Weight 1.3 ounces / 38 g
    • Capacity USB 3.2 Gen 2x2 up to 20 Gbps
    • Chipset ASMedia ASM3242
    • Supported System No driver installation is required on Windows 10, Server 2016/2019, MacOS 10.15.3 and later.
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets



  • One USB 3.2 20Gbps Type-C downstream receptacle port. Up to 20Gbps data transfer speed.
  • Low Profile board. Regular size PCIe bracket on board and Low Profile PCIe bracket included. PCIe 3.0 x4 card fits in PCIe x4 or x8 or x16 slot.
  • Support up to 3A/5V on USB-C downstream port and overcurrent Protection.
  • No driver installation is required on Windows 10, Server 2016/2019, MacOS 10.15.3 and later.
  • Built with ASMedia ASM3242. Fully RoHS compliant. Made in Taiwan.

Note: The card does not support DP Alt Mode or USB Power Delivery.




Product Description



Add a Type-C USB 3.2 Gen 2x2 port with up to 20Gbps data rate to your system.


Specification

  • Connector:
    • 1x USB Type-C female (USB 3.2 Gen 2x2 capable)
    • PCI Epress x4 Male



  • Chipset: ASMedia ASM3242
  • Software:
    • No driver installation is required on Windows 10, Server 2016/2019, MacOS 10.15.3 and later.



  • Data transfer rate:
    • USB 3.2 Gen 2x2 up to 20 Gbps



  • Power:
    • Support up to 3A/5V on USB-C port.
    • Overcurrent Protection



  • USB3.2 Gen 2x2 PCIe 3.0 x4 Lane Host Adapter
  • One USB 3.2 20Gbps Type C downstream receptacle port
  • Require an empty PCIe 3.0 x4, x8, or x16 slot in computer to achieve USB3.2 Gen 2x2 full performance
  • Low Profile PCIe Form Factor board
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB 3.2 Specification Rev. 1.0, Intel xHCI Specification 1.1
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.

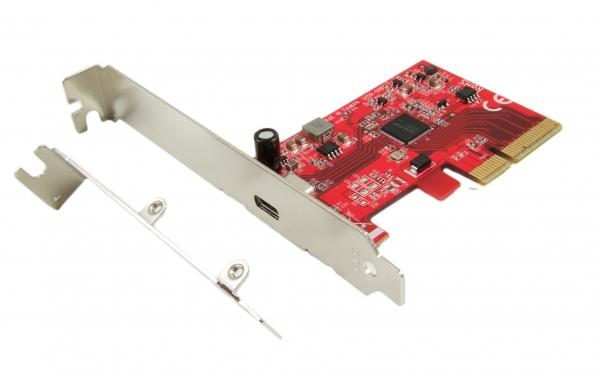

  • Regular size PCIe bracket on board and Low Profile PCIe bracket included
  • Fully RoHS compliant
  • Note: The card does not support DP Alt Mode or USB Power Delivery.


Package Contents

  • Ableconn USB 3.2 Gen 2x2 1-Port PCIe x4 Card
  • One low profile PCIe bracket



Warranty

  • Limited One-Year Warranty and Lifetime Product Support
