IU2-M3153 M.3 NFSFF to U.2 Adapter - Turn PCIe Gen3 M.3 NFSFF (NF1) SSD into 2.5-inch U.2 NVMe Solid State Drive with 68-Pin U.2 (SFF-8639) Host Interface - Support Samsung NF1 SSD

IU2-M3153 M.3 NFSFF to U.2 Adapter - Turn PCIe Gen3 M.3 NFSFF (NF1) SSD into 2.5-inch U.2 NVMe Solid State Drive with 68-Pin U.2 (SFF-8639) Host Interface - Support Samsung NF1 SSD

  • Product Specifications:

    • Dimensions 5.1 x 2.8 x 0.3 inches / 130 x 70 x 7 mm
    • Weight 1.4 ounces / 40 g
    • Compatibility OS independent; No driver installation required
    • Supported System Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support NVMe
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Turn an enterprise class high performance PCIe Gen3 M.3 NFSFF NF1 SSD into a 2.5” NVMe U.2 68-pin SFF-8639 solid state drive. Open frame aluminum housing design providing excellent heat dissipation for NVMe SSD
  • Compatible with SAMSUNG PM983 NGSFF NF1 NVMe SSD
  • Supports PCIe Gen3 x4 110mm by 30.5mm NGSFF NF1 M.3 SSD. Supports dual-sided SSD module 2.0mm component height on the top and bottom side
  • Windows 10/8, Windows Server 2012 R2 and later, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support PCIe-NVMe SSD
  • Fully RoHS compliant. High quality product. Made in Taiwan.



Product Description

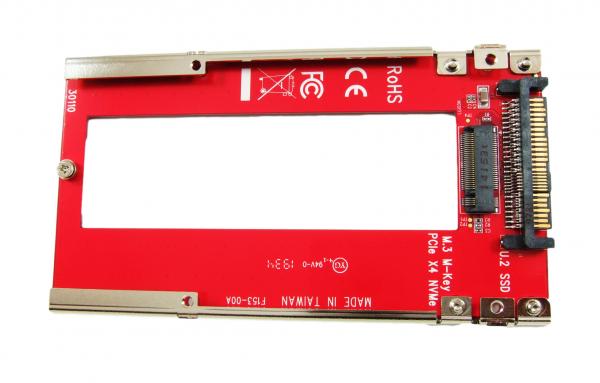

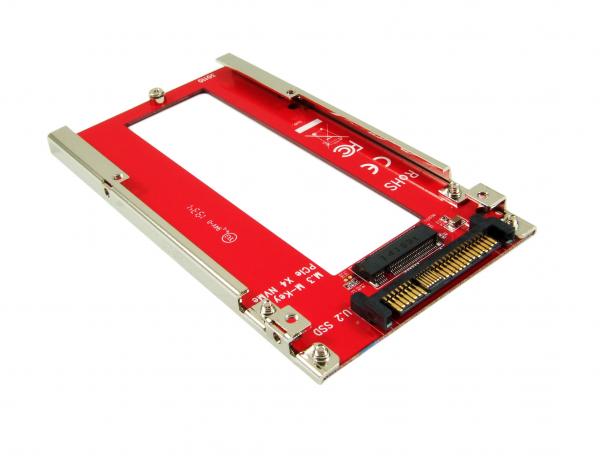

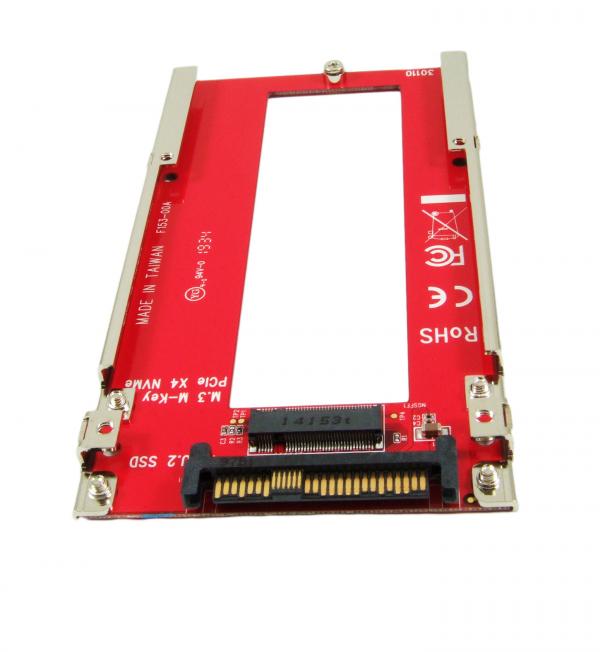

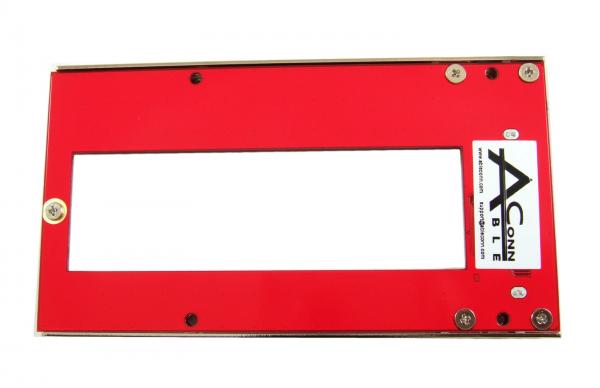

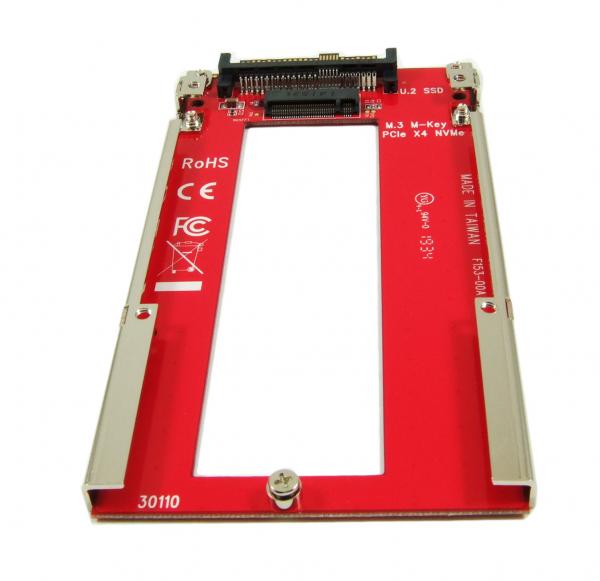

The Ableconn IU2-M3153 turns an enterprise class high performance PCIe Gen3 M.3 NFSFF NF1 SSD into a 2.5” U.2 68-pin SFF-8639 solid state drive. It provides excellent heat dissipation for M.3 SSD with the open aluminum frame design.




Features



  • Connector:
    • 1x M.3 NGSFF type 30110 M Key socket for M.3 NGSFF NF1 NVMe SSD
    • 1x U.2 connector (SFF-8639, 68 Pin) male



  • Software:
    • OS independent; No driver installation required
    • Windows 10/8, Windows Server 2012 R2 and later, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support PCIe-NVMe SSD
    • Mac Pro 2009, 2010 and 2012 models installed with High Sierra macOS 10.13 and later versions support PCIe-NVMe SSD.



  • Convert NGSFF NF1 M.3 SSD to 2.5” NVMe SFF-8639 U.2 SSD
  • Supports PCIe Gen3 x4 110mm by 30.5mm NGSFF NF1 M.3 SSD
  • Compliant with PCI Express 3.0 x4 Lane
  • 68Pin U.2 SFF-8639 interface to PCIe-NVMe Host
  • Supports dual-sided SSD module 2.0mm component height on the top and bottom side
  • Includes 2.5“ drive metal frame with 8 mounting holes and 4 HDD screws
  • Fully RoHS compliant
  • Made in Taiwan

Note: Supports 12V M.3 NGSFF NF1 NVMe SSD. It does not work with 3.3V M.2 NVMe SSD.


Package Contents



  • Ableconn NGSFF NF1 M.3 SSD to U.2 2.5-Inch SSD Adapter
  • Mounting screw set (1x SSD latch screw, 4x drive mount screws)




Warranty

  • Limited One-Year Warranty and Lifetime Product Support
