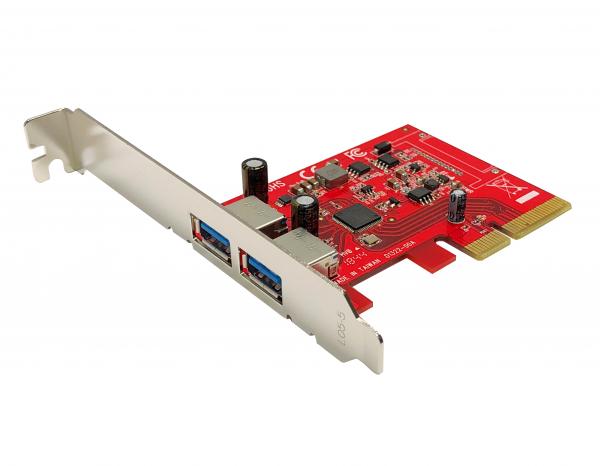

PEX-UB132 USB 3.1 Gen 2 (10 Gbps) 2-Port Type-A Low Profile PCI Express (PCIe) x4 Lane Host Adapter Card (ASMedia ASM3142 Controller)

PEX-UB132 USB 3.1 Gen 2 (10 Gbps) 2-Port Type-A Low Profile PCI Express (PCIe) x4 Lane Host Adapter Card (ASMedia ASM3142 Controller)

  • Product Specification:

    • Dimensions 3.0 x 2.2 x 0.5 inches / 81 x 59 x 13 mm
    • Weight 1.4 ounces / 42 g
    • Capacity PCIe x4 Lane
    • Chipset ASMedia ASM3142
    • Supported System No driver installation required on MacOS 10.8 to 10.10, and 10.12 and later; Windows 10/8, Server 2012 and later; Linux 2.6.31 and later
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets



  • Two USB Type-A connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0. Powered by ASM3142 controller with PCIe Gen3 x2 lanes performance.
  • Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
  • Support up to 2A/5V on each USB-A downstream port.
  • No driver installation is required onMacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
  • Fully RoHS compliant. Made in Taiwan.




Product Description

  Add two SuperSpeedPlus USB 3.1 Type-A ports with up to 10Gbps data rate to your system.


Specification

  • Connector:
    • 2 x USB 3.1 Type-A female
  • Chipset: ASMedia ASM3142
  • Software:
    • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later, Linux 2.6.31 and later. The OS native built-in drivers feature UASP.



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps



  • Power:
    • Support up to 2A/5V on each USB-A downstream port.
  • System Requirement:
    • An empty PCIe x4, x8, or x16 slot
  • USB3.1 PCIe x4 Lane Host Adapter Card powered by ASM3142 with PCIe Gen3 x2 Lane performance
  • Low Profile PCIe Form Factor board
  • Supports PCIe 1.0, 2.0, or PCIe 3.0 motherboard
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.1
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.
  • Regular size PCIe bracket on board and Low Profile PCIe Bracket included
  • Operating temperature range: 0 - 85 °C
  • Storage temperature range: -25 - 85 °C
  • Fully RoHS compliant


Package Contents

  • Ableconn USB 3.1 2-Port PCIe x4 Card
  • One low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
