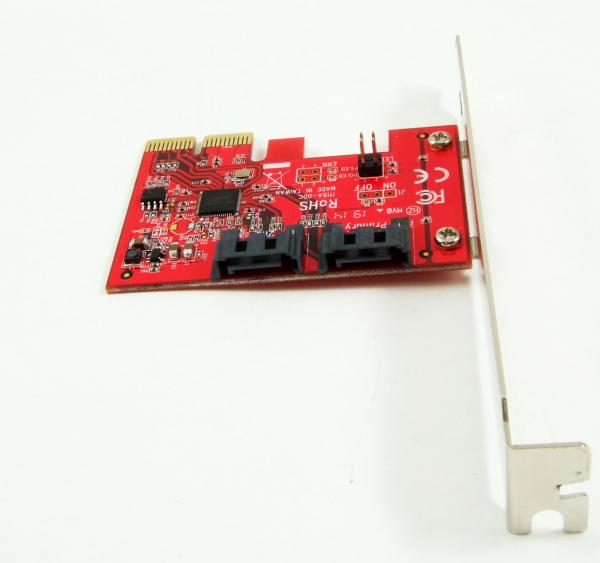

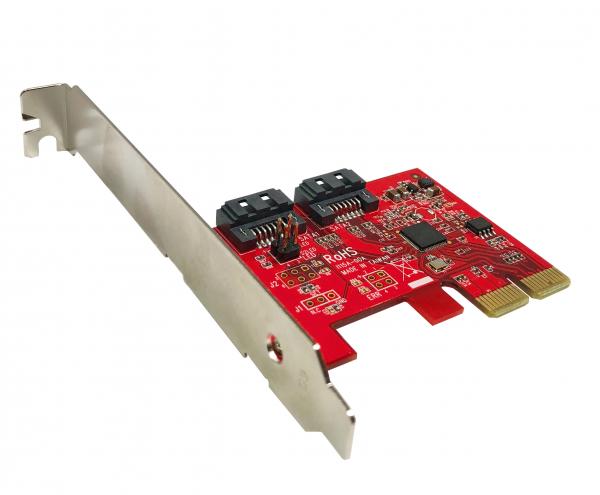

Ableconn PEXSA115A 2-Port SATA 6G PCI Express x2 Host Adapter Card - AHCI 6Gbps SATA III Port-Multiplier PCIe 2.0 Low Profile Controller Card (ASMedia ASM1062)

Ableconn PEXSA115A 2-Port SATA 6G PCI Express x2 Host Adapter Card - AHCI 6Gbps SATA III Port-Multiplier PCIe 2.0 Low Profile Controller Card (ASMedia ASM1062)

  • Product Specifications:

    • Dimensions 2.7 x 2.3 x 0.7 inches / 66 x 55 x 18 mm
    • Weight 1.28 ounces / 35 g
    • Capacity PCIe 2.0 x2 Lanes; Up to 6 Gbps (SATA III)
    • Chipset ASMedia ASM1062
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on most Operating Systems.
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets


  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with ASMedia ASM1062 controller. Legacy ROM on board that supports Legacy BIOS mainboard Booting for Windows and Linux. The product does not support booting for UEFI mainboards.
  • Support 2x Command-based Port Multiplier switching and up to 10 SATA drives via two 5-Port PMs.
  • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.



Product Description



Add two SATA 6G ports with up to 6 Gbps data rate to your computer.


Specification

  • Connector:
    • 2 x SATA (7 pin; DATA) Plug
    • PCI Express x2 Male



  • Chipset: ASMedia ASM1062



  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
    • Legacy ROM on board that supports Legacy BIOS mainboard Booting for Windows and Linux. The product does not support  booting for UEFI mainboards.



  • Data transfer rate:
    • Up to 6 Gbps



  • Number of Ports That Support Port Multiplier: 2
  • Number of Drives Supported Through Port Multiplier: 1 to 5



  • Easy installation 6Gbps SATA III PCIe Gen2 2-Lane Host Adapter
  • Compliant with 10Gbps PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.2
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Command-based Port Multiplier and up to 10 SATA drives via 2x 5-port PMs
  • Supports SATA Hot-plug, and Native Command Queuing (NCQ)

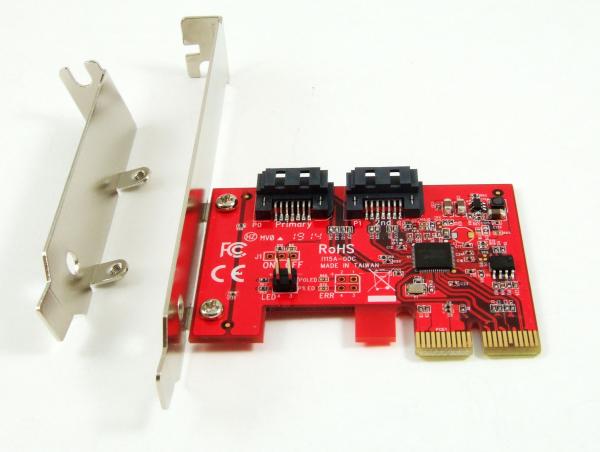

  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Pin headers on board for Device LED connection
  • BIOS on board supports Windows and Linux booting
  • Require an empty PCIe x2 or x4 or x8 or x16 slot in computer
  • Supports operating temperature range: 0 - 85 ºC
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • 2-Port SATA 6G AHCI PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
