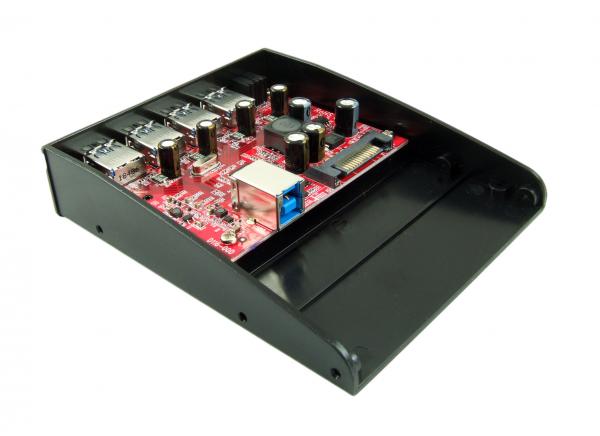

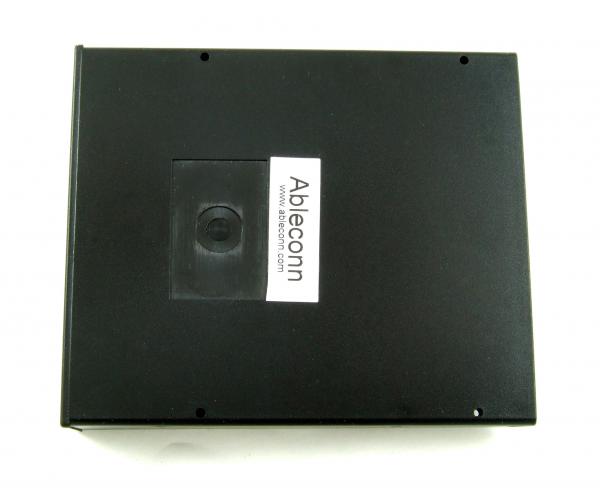

Ableconn IUSB-116F USB 3.0 4-Port Hub in 3.5-inch Front Bay - Up to 1.5A/5V Power per Port

Ableconn IUSB-116F USB 3.0 4-Port Hub in 3.5-inch Front Bay - Up to 1.5A/5V Power per Port

  • Product Specifications:

    • Dimensions 4.9 x 4 x 1.1 inches / 125 x 102 x 27 mm
    • Weight 3.7 ounces / 104 g
    • Capacity USB 3.0 up to 5 Gbps
    • Chipset VIA Labs VL811
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Expand one internal USB 3.0 to four external USB 3.0 Ports with USB bus power up to 5V / 1.5A per port.
  • Support any USB3.0, USB2.0 and USB1.1 devices
  • Support green LED status indicator on each down-stream port
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. High quality product. Made in Taiwan.



Product Description

The Ableconn IUSB-116F let you expand one internal USB 3.0 to four external USB 3.0 Ports with USB bus power up to 5V / 1.5A per port.


Specification

  • Connector:
    • 1 x USB 3.0 Type B female upstream connector for connecting to computer USB host
    • 1 x 15-pin SATA power connector
    • 4 x USB 3.1 Type A downstream ports



  • Chipset: VIA Labs VL811
  • Data transfer rate:
    • USB 3.0 up to 5 Gbps



  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux



  • USB 3.0 large power charger & HUB for front use
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Four USB 3.0 Type A downstream ports with sufficient bus power
  • All USB3.0 ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Support any USB3.0, USB2.0 and USB1.1 devices
  • 15Pin SATA power connector connection to system power supply and support Max 1.5A 5V bus power each USB port
  • 100% OS-transparent hub controller support Windows, Mac and Linux, no driver required
  • Support green LED status indicator on each down-stream port
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn IUSB-116F 4-Port Hub in 3.5-inch Front Bay
  • Mounting screw set (4x drive mount screws)


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
