Ableconn ISAT-178R 2.5" 7mm SATA III Adapter with Aluminum Frame Bracket for Dual mSATA SSD with Hardward RAID - Retain 2X mSATA SSD as 7mm 2.5-inch SATA Drive

Ableconn ISAT-178R 2.5" 7mm SATA III Adapter with Aluminum Frame Bracket for Dual mSATA SSD with Hardward RAID - Retain 2X mSATA SSD as 7mm 2.5-inch SATA Drive

  • Product Specification:

    • Dimensions 3.9 x 2.8 x 0.3 inches / 100 x 70 x 7 mm
    • Weight 1.3 ounces / 38 g
    • Capacity Up to 6 Gbps (SATA III)
    • Chipset J-Micron JMS562
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets



  • Convert 2x mSATA SSD to a standard internal 2.5" 7mm SATA drive. It supports H/W RAID 0, RAID 1, SPAN (Big Drive) and PM (2Drives) Modes. Note: SATA Host is required to be Port Multiplier capable for PM Mode.
  • Supports 6Gbps, 3Gbps mSATA SSD
  • Open frame aluminum housing dessign providing excellent heat dissipation for mSATA SSD
  • No driver installation required. Native support in Windows, Mac and Linux.
  • CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.




Product Description

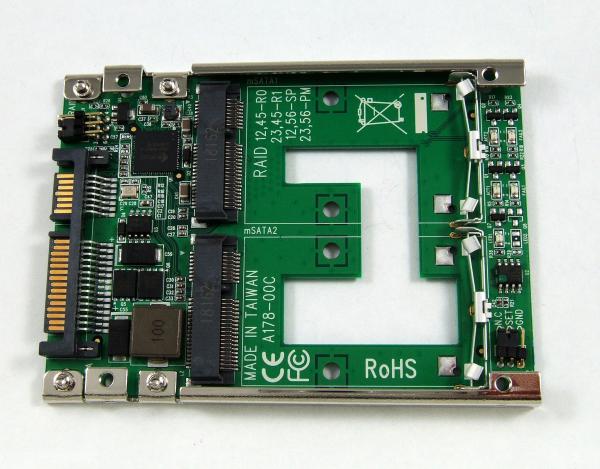

The Ableconn ISAT-178R turns two mSATA SSDs into a 2.5-inch SATA III SSD drive with RAID to increase performance and redundancy. The drive metal frame and mounting holes enable you to install it like a 2.5" internal hard drive.


Specification

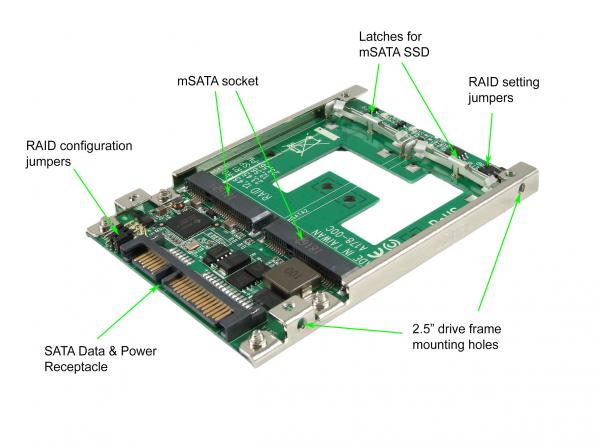

  • Connector:
    • 1 x SATA Data & Power (7+15 pins) Receptale
    • 2 x mSATA latch type slots



  • Chipset: J-Micron JMS562
  • Data transfer rate:
    • Up to 6 Gbps (SATA III)



  • Jumper Selection:
    • 1 x jumper for RAID Mode setting
  • Software:
    • OS independent; No driver installation is required on Windows, Mac, and Linux.
    • Provides Windows and Mac GUI to configure RAID modes and monitor RAID status.



  • 6Gbps SATA III H/W RAID Controller
  • Convert 2x Full Size SATA III (6Gbps) mSATA SSD to a standard 2.5" 7mm SATA drive
  • Supports SATA I, SATA II, SATA III Host port.
  • Support SATA hot plug and booting.
  • The mSATA SSD can be the primary bootable device containing the OS and application.
  • Supports H/W RAID 0, RAID 1, SPAN (Big Drive) and PM (2Drives) Modes.Note:SATA Host is required to be Port Multiplier capable for PM Mode.
  • Latch type mSATA connector on board, no need the screw to retain mSATA SSD
  • Hardware Jumper and Windows & Mac software GUI configure RAID modes
  • Includes 7mm height 2.5-inch drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimensions (LxWxH): 4 x 2.8 x 0.2 in / 100 x 70 x 7 mm
  • Fully RoHS compliant.
  • Made in Taiwan




Package Contents

  • Ableconn ISAT-178R 2.5-inch SATA Adapter for Dual mSATA SSDs with RAID
  • 4x drive mounting screws




Warranty

  • Limited One-Year Warranty and Lifetime Product Support
