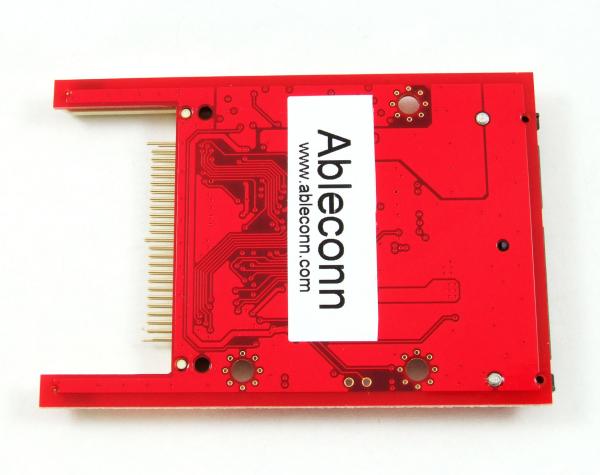

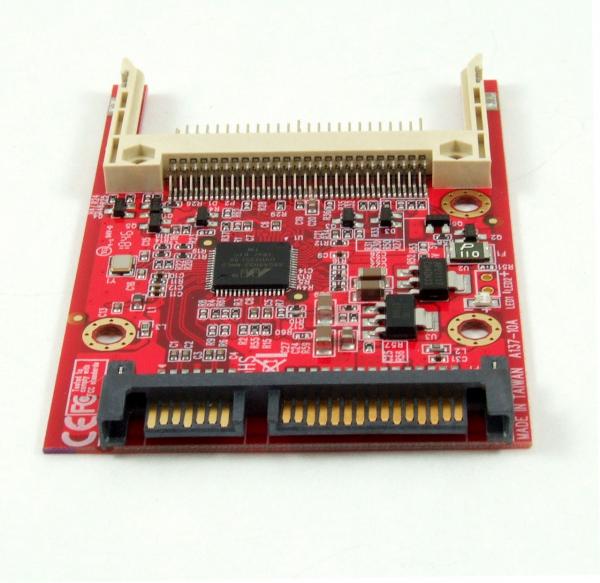

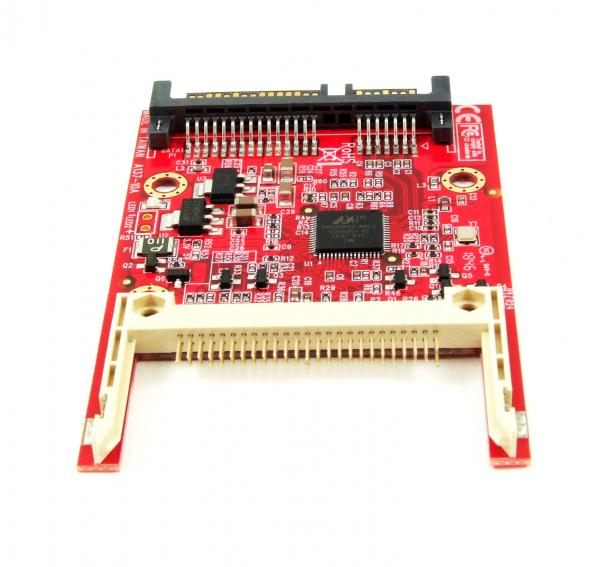

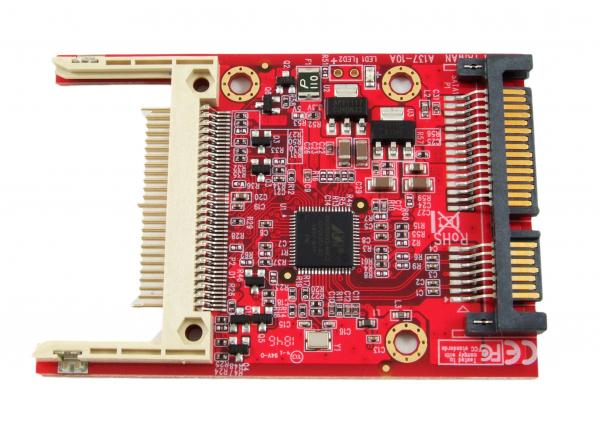

Ableconn ISAT-137M Compact Flash to 2.5-Inch SATA HDD Bridge Board - Turn CF Memory to 2.5

Ableconn ISAT-137M Compact Flash to 2.5-Inch SATA HDD Bridge Board - Turn CF Memory to 2.5

  • Product Specifications:

    • Dimensions 2.9 x 2.1 x 0.2 inches / 75 x 52 x 6 mm
    • Weight 0.48 ounces / 12 g
    • Capacity Up to 3 Gbps (SATA II)
    • Chipset Marvell 88SA8052
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets





  • Convert a CF memory module to a slim line low power 2.5” Form Factor
  • Open frame aluminum housing dessign providing excellent heat dissipation for CF memory card
  • Support any size of CF memory module up to 2TB
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. Made in Taiwan.




Product Description

The Ableconn ISAT-137M let you convert a CF memory module into a slim line low power 2.5” SATA drive.



Specification

  • Connector:
    • 1 x CF receptale socket
    • 1 x SATA Data & Power (7+15 pins) receptale



  • Chipset: Marvell 88SA8052
  • Data transfer rate:
    • Up to 3 Gbps (SATA II)
  • Supported Media:
    • Type I / Type II CF or IBM Microdrive



  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux



  • Convert CF to slim line low power 2.5” Form Factor
  • Compliant with Serial ATA 2.6 specifications and High transfer rate of 1.5 and 3 Gbps
  • 22 pin SATA (Signals and Power) male connector on board
  • The CF card can be the primary bootable device containing the OS and application
  • Support any size of CF memory module up to 2TB
  • Dimension of PCBA with CF card attached : 91mm x 51mm x 6mm
  • CF & PCBA power from SATA 5V input
  • Power Consumption: 0.6 Watt
  • Operating temperature range: 0 - 70 ºC
  • Fully RoHS compliant
  • Made in Taiwan



Package Contents

  • Ableconn ISAT-137M CF to 2.5in SATA Drive Converter


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
