Ableconn PEX-FW107 1394b & 1394a 3-Port PCI Express (PCIe) Low Profile FirwWire Host Adapter Card - TI XIO2213 Chipset

Ableconn PEX-FW107 1394b & 1394a 3-Port PCI Express (PCIe) Low Profile FirwWire Host Adapter Card - TI XIO2213 Chipset

  • Product Specification:

    • Dimensions 3.6 x 2.8 x 0.7 inches / 91 x 70 x 18 mm
    • Weight 1.5 ounces / 42 g
    • Capacity 1394b & 1394a FireWire
    • Chipset TI XIO2213
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets



  • Add two 1394b FireWire 800 ports and one 1394a port to your Mac Pro or Windows system.
  • Built with TI XIO2213 chipset. Fast and reliable FireWire expansion.
  • Low Profile PCIe Form Factor. Include both Low Profile and Regular Size PCIe brackets
  • Compliant with Provisions of IEEE P1394b-2002, IEEE 1394a-2000 and 1394-1995 Standard
  • High quality. Fully RoHS compliant. Made in Taiwan.




Product Description



Add two 1394b FireWire 800 ports and one 1394a port to your Mac Pro or Windows system.


Specification

  • Connector:
    • 2x P1394b (9-pin) and 1x 1394a-2000 (6-pin)
    • PCI Express x1 Male
    • 1x SP4 (4-pin; small drive power) Male



  • Chipset: TI XIO2213
  • Software:
    • No driver installation is required on Windows, Mac, and Linux systems.
  • Data transfer rate:
    • Support 1394 data transfer rate up to 800 Mbps



  • Fully Supports Provisions of IEEE P1394b-2002, IEEE 1394a-2000 and 1394-1995 Standard
  • Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1 and Rev 1.2 Draft
  • Two Bilingual 1394b 9-pin Ports at S800 or S400b speed
  • One 1394a-2000 Fully Compliant 6-Pin Port at S400, S200, S100 speed
  • On Board Molex mini 4Pin Power connector to provide sufficient 1394 1.5A/12V bus power from PC power supply
  • Supports Plug and Play
  • Compliant with PCI Express Specification, revision 1.1
  • 1-lane 2.5Gbps PCI Express host interface
  • Low Profile PCIe Form Factor

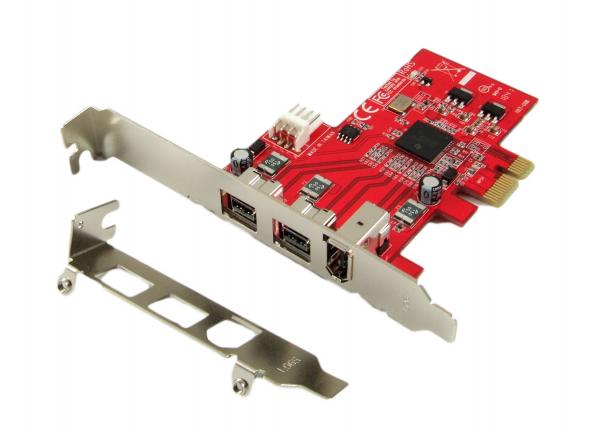

  • Regular size PCIe bracket on board and an additional Low Profile bracket included
  • Fully RoHS compliant.
  • Made in Taiwan

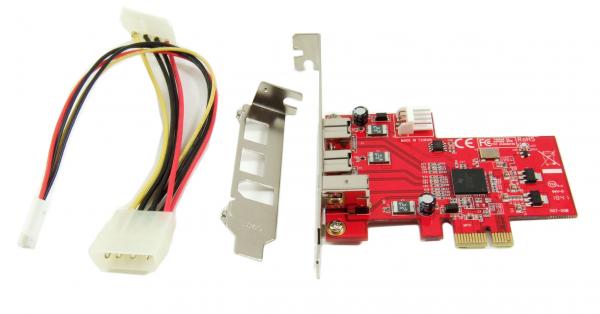

Package Contents

  • Ableconn 1394b & 1394a 3-Port PCIe FireWire Host Adapter
  • 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
  • One (1) low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
