Ableconn PEX-SA151 SATA III RAID 2-Port PCIe x2 Card (ASMedia ASM1062R Controller) - Support RAID 0 / RAID 1 / Span/Non-RAID

Ableconn PEX-SA151 SATA III RAID 2-Port PCIe x2 Card (ASMedia ASM1062R Controller) - Support RAID 0 / RAID 1 / Span/Non-RAID

  • Product Specifications:

    • Dimensions 2.8 x 2.1 x 0.7 inches / 62 x 51 x 18 mm
    • Weight 1.2 ounces / 32 g
    • Capacity PCIe 2.0 x2 Lane; Up to 6 Gbps (SATA III)
    • Chipset ASMedia ASM1062R
    • Compatibility No driver installation is required. The AHCI drivers are natively built-in on most Operating Systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • 2-Port SATA 6Gbps PCIe Gen2 x2 card powered by ASMedia 1062R controller
  • Supports Hardware RAID 0, RAID 1, SPAN, and Non-RAID modes. Support NCQ and TRIM.
  • RAID Configuration at BIOS booting or through Windows GUI tool to monitor RAID status.
  • No driver installation is required on Windows 10/8/7, Server 2008 and later, Linux, macOS 10.9.1 and later Linux. The AHCI drivers are natively built-in on most Operating Systems
  • Fully RoHS compliant. Made in Taiwan.



Product Description

Add two SATA III ports with hardware RAID capability to your computer.


Specification



  • Connector:

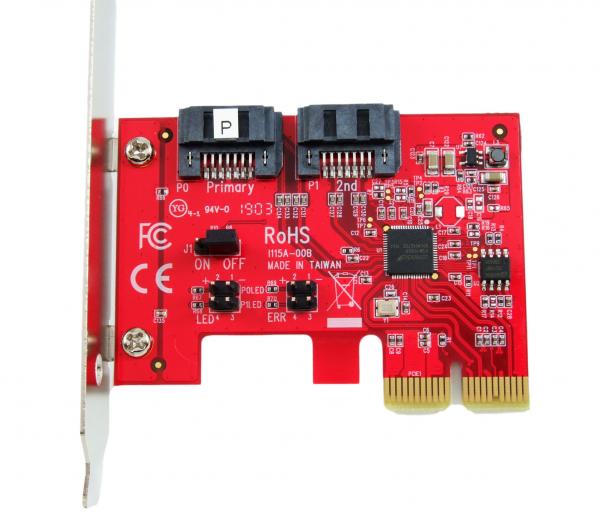

    • 2 x SATA (7 pin; DATA) Plug (one for Primary Drive and one for Mirror Drive)
    • PCI Express x2 Male
  • Chipset: ASMedia ASM1062R



  • Software:
    • No driver installation is required on Windows 10/8/7, Server 2008 and later, Linux, macOS 10.9.1 and later Linux. The AHCI drivers are natively built-in on most Operating Systems
    • Legacy BIOS on board support OS Booting for Windows and Linux



  • Data transfer rate:
    • Up to 6 Gbps



  • Requirements:
    • - An empty PCIe x2 or x4 or x8 or x16 PCIe slot



  • LED indication of ERR LED header:
    • No light: normal
    • Light: rebuilding
    • Flashing: error
  • 6Gbps SATA III PCIe 2.0 x2 Lane Host Adapter
  • Hardware RAID controller to offload host CPU for max performance
  • Supports hardware RAID 0 / RAID 1 / SPAN (Big Disk) and Normal (non-RAID) modes for HDD and SSD
  • Non-RAID mode supports Optical Drive, Blu-Ray Drive and SATA Command-based Port Multiplier
  • Fully compliant with Serial ATA specifications 3.2
  • Supports Native Command Queuing (NCQ)
  • Supports TRIM

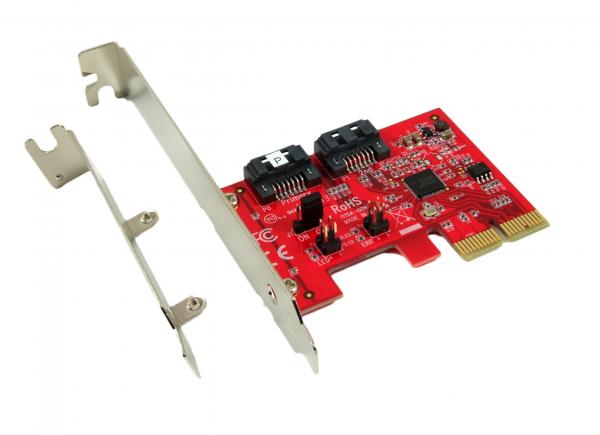

  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included

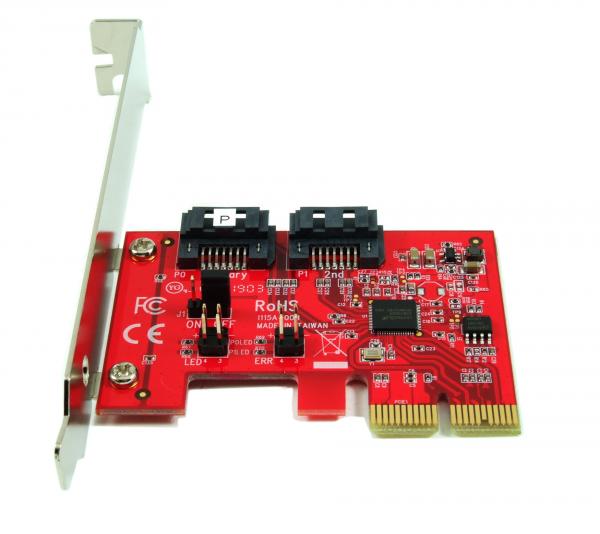

  • Two Pin headers on board for Device LED connection
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn Hardware RAID SATA PCI Express Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide



Warranty

  • Limited One-Year Warranty and Lifetime Product Support
