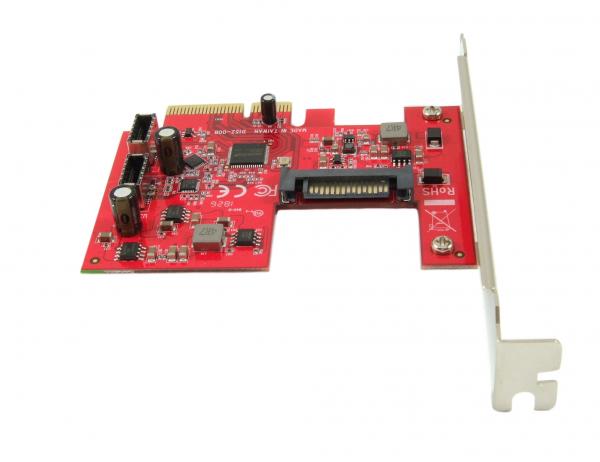

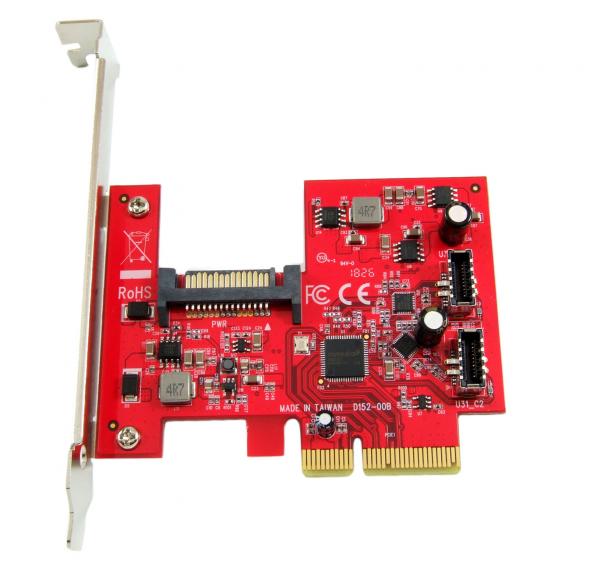

Ableconn PEX-UB152 USB 3.1 Gen 2 (10 Gbps) 2-Port Internal Key-A PCI Express (PCIe) x4 Host Adapter Card (ASMedia ASM2142 Chipset)

Ableconn PEX-UB152 USB 3.1 Gen 2 (10 Gbps) 2-Port Internal Key-A PCI Express (PCIe) x4 Host Adapter Card (ASMedia ASM2142 Chipset)

  • Product Specifications:

    • Dimensions 3.6 x 2.7 x 0.6 inches / 92 x 70 x 15 mm
    • Weight 1.6 ounces / 46 g
    • Capacity Up to 10 Gbps
    • Chipset ASMedia ASM2142
    • Compatibility No driver installation required on MacOS X 10.9 to 10.10, and 10.12 to 10.13, Windows 10, 8.1, 8, and Server 2012
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Windnows:

Windows 10/8/Server 2012 and later:  No driver installation is required

Windows 7/Vista, and Windows Server 2008/2003:

ASMedia ASMUSBHost_V116591WHQL.zip (v1.16.59.1)



Mac:

MacOS 10.8 to 10.10, and 10.12 and later (MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1)







Feature Bullets



  • Two Type-C Internal Key A downstream connectors. Up to 10Gbps data transfer speed, twice as fast as USB 3.0.
  • Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
  • Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on each USB 3.1 Type C port.
  • No driver installation is required onMacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver doesn't support ASMedia USB 3.1), Win10/8, Server 2012 and later; Linux 2.6.31 and later. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003.
  • Built with ASMedia ASM2142. Fully RoHS compliant. Made in Taiwan. Note: The card does not support DP Alt Mode or USB Power Delivery.


Product Description



Add two Internal Type-C  USB 3.1 Gen 2 ports with up to 10Gbps data rate to your system.


Specification

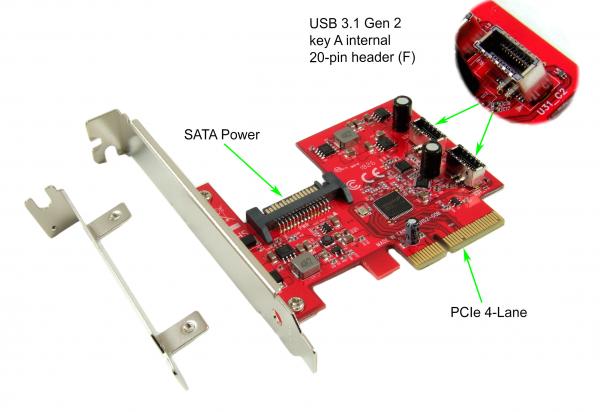

  • Connector:
    • 2x USB 3.1 Type C Internal Key A 20-pin Headers
    • 1 x 15-pin SATA power connector (optional connection)
    • PCI Epress x4 Male



  • Chipset: ASMedia ASM2142
  • Software:
    • No driver installation is required on MacOS 10.9 to 10.10, and 10.12 and later (NOTE: MacOS 10.11 in-box driver does support ASMedia USB 3.1), Win10/8, Server 2012 and later, Linux 2.6.31 and later.
    • The ASMedia driver for 32/64 bit Windows 7/Vista, and Server 2008/2003 is available from our website.



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps



  • Power:
    • Support up to 3A/5V on each USB 3.1 port.
    • The 15-pin SATA power connection is optional. If connected, the USB port bus power will be provided from the 12V of system power supply.



  • Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/3A bus power on USB ports.
  • USB3.1 PCIe x4 Lane Host Adapter Card powered by ASM2142 with PCIe Gen3 x2 Lane performance
  • Low Profile PCIe Form Factor board
  • Supports PCIe 1.0, 2.0, or PCIe 3.0 motherboard
  • Compliant with PCI Express Specification 3.0
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.

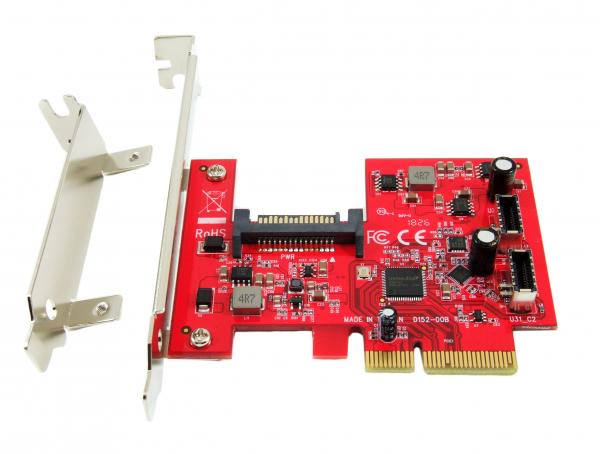

  • Include both Low Profile and Regular Size PCIe brackets
  • Fully RoHS compliant
  • Made in Taiwan

Note: The card does not support DP Alt Mode or USB Power Delivery.


Package Contents

  • Ableconn USB 3.1 2-Port PCIe x4 Card
  • One low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
