Ableconn PEX-CF106 PCI Express 3.0 x4 Host Adapter Card for CFexpress SSD

Ableconn PEX-CF106 PCI Express 3.0 x4 Host Adapter Card for CFexpress SSD

  • Product Specifications:

    • Dimensions 4.7 x 3.1 x 0.7 inches / 120 x 81 x 20 mm
    • Weight 1.5 ounces / 42 g
    • Capacity CFexpress PCIe x2 based SSD working in main board PCIe x4 bus slot
    • Input 1x CFexpress/XQD socket; PCIe x4 card
    • Compatibility Transparent to operating system. No driver installation is required.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets



  • Support CFexpress PCIe x2 and XQD Flash Memory Card. Note: Not support Hot-Swap of Flash Memory Card
  • Cfexpress XQD Push Push connector on board. Memory Card is powered from motherboard PCIe bus slot 3.3V.
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included.
  • Transparent to operating system. No driver installation is required.
  • Fully RoHS compliant. Made in Taiwan.



Product Description

The Ableconn PEX-CF106 allows you to install an extremely high performance exterprise-class PCIe x2 CFexpress or XQD Flash Memory Card through a PCIe x4 card to your PC System.


Features

  • Connector:
    • 1x Cfexpress/XQD Flash Memory Card socket
    • PCI Epress x4 Male



  • Software:
    • Transparent to operating system. No driver installation is required.



  • System Requirement:
    • An empty PCIe x4 slot.



  • PCI Express 3.0 x4 Lane Host adapter
  • Compliant with PCI Express 3.0
  • Supports CFexpress PCIe x2 and XQD Flash Memory Card (XQD driver installation is required when using XQD Flash Memory Card.)
  • Not support Hot-Swap of Flash Memory Card
  • Cfexpress XQD Push Push connector on board
  • Memory card is powered from motherboard PCIe bus slot 3.3V
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

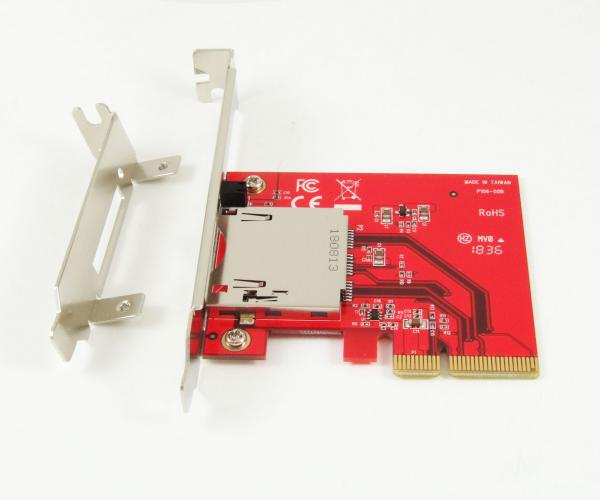

  • 1x Ableconn PCIe x4 Card for CFexpress & XQD Memory Card
  • 1x low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
