Product Description
Feature Bullets
-
PCIe x1 lane card with a mPCIe (Mini PCIe) socket that supports PCIe & USB 2.0 signal interface from main board to mPCIe socket.
-
Support both PCIe based mPCIe Cards and USB2.0 based mPCIe Cards
-
Support both mPCIe Full-Mini Card and Half-Mini Card
-
No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC, and Linux.
-
Fully RoHS compliant. Made in Taiwan.
Product Description
The Ableconn PEX-MP117 allows you to install a Mini PCIe card through a PCIe x1 card to your PC System.
Features
-

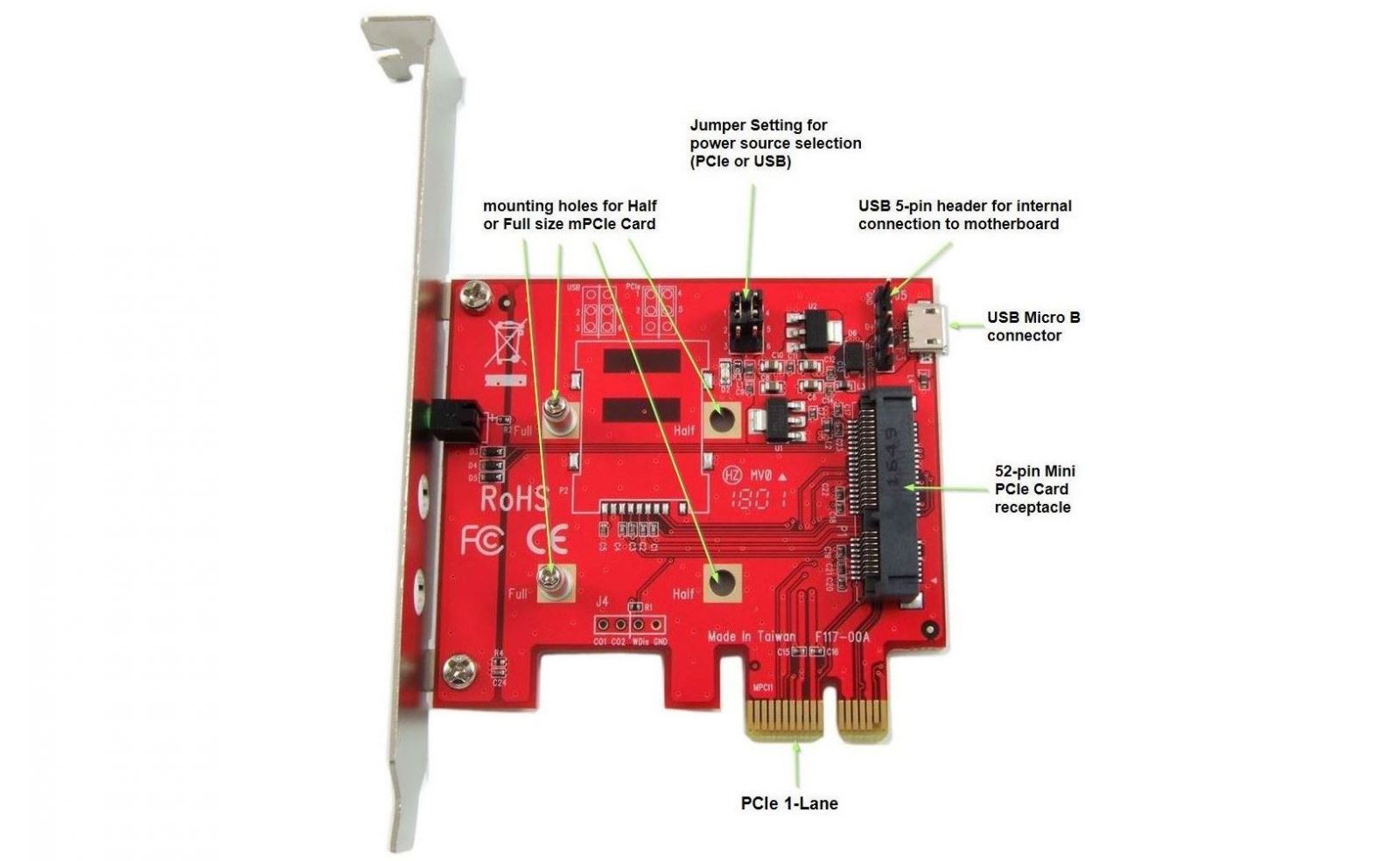

Connector:
-
1x Mini PCIe socket
-
1x USB 2.0 Micro-B female
-
1x USB 5-pin pin header (Pin Header assignment: 5V, D-, D+, NC, GND)
-
Software:
-
No driver installation is required.
-
100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
-
Convert 52Pin Mini PCIe Card to work in main board PCIe x1 bus slot
-
Support both PCIe based mPCIe Cards and USB2.0 based mPCIe Cards
-
On board both Micro USB connector and 5Pin USB Pin Header for USB2.0 based mPCIe Card
-

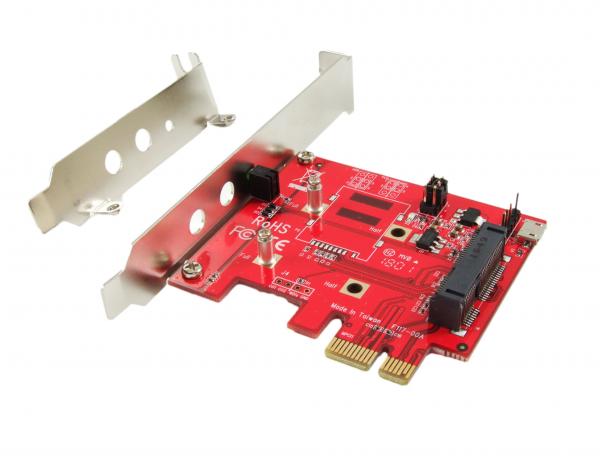

Two removable mPCIe cradles (stand off) that support both mPCIe Full-Mini Card and Half-Mini Card
-
LED indicator on board for wireless (WPAN, WLAN, WWAN) linking
-
mPCIe Power Selection from PCIe bus power or USB2.0 host power
-
Two holes on PCIe bracket for wireless antenna use
-
Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
-
Fully RoHS compliant
-
Made in Taiwan
Package Contents
-

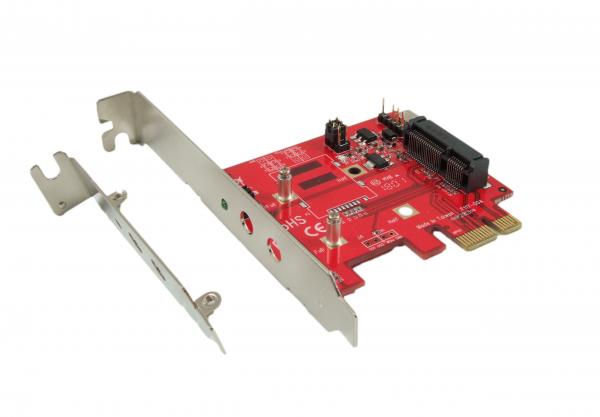

1x Ableconn Mini PCI-E to PCI-E Adapter Card
-
1x low profile PCIe bracket
-
2x mounting screw
Warranty
-
Limited One-Year Warranty and Lifetime Product Support
