Ableconn PEXM2150E PCI Express x1 Adapter Card with M.2 Key E Socket - Support M2 E Key or A-E Key WiFi or Bluetooth Module

Ableconn PEXM2150E PCI Express x1 Adapter Card with M.2 Key E Socket - Support M2 E Key or A-E Key WiFi or Bluetooth Module

  • Product Specifications:

    • Dimensions 2.7 x 2.7 x 0.7 inches / 68 x 68 x 18 mm
    • Weight 1.2 ounces / 36 g
    • Capacity PCIe x1 Lane
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

  • PCIe x1 lane card with M.2 E-Key socket that supports PCIe & USB 2.0 signal interface from main board to M.2 Key E socket.
  • Support M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module. Note: PEXM2150E does not support CNVi (CNVIo/CNVIo2) interface.
  • Multiple plated-holes support M.2 type 2230 / 3030 module
  • No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC, and Linux.
  • Fully RoHS compliant. Made in Taiwan











Product Description


The Ableconn PEXM2150E allows you to Install M.2 Key E or key A-E module such as WiFi, Bluetooth and Dual Band WiFi+ Bluetooth Wireless Module on a PCIe slot of Industrial Computer.



Features

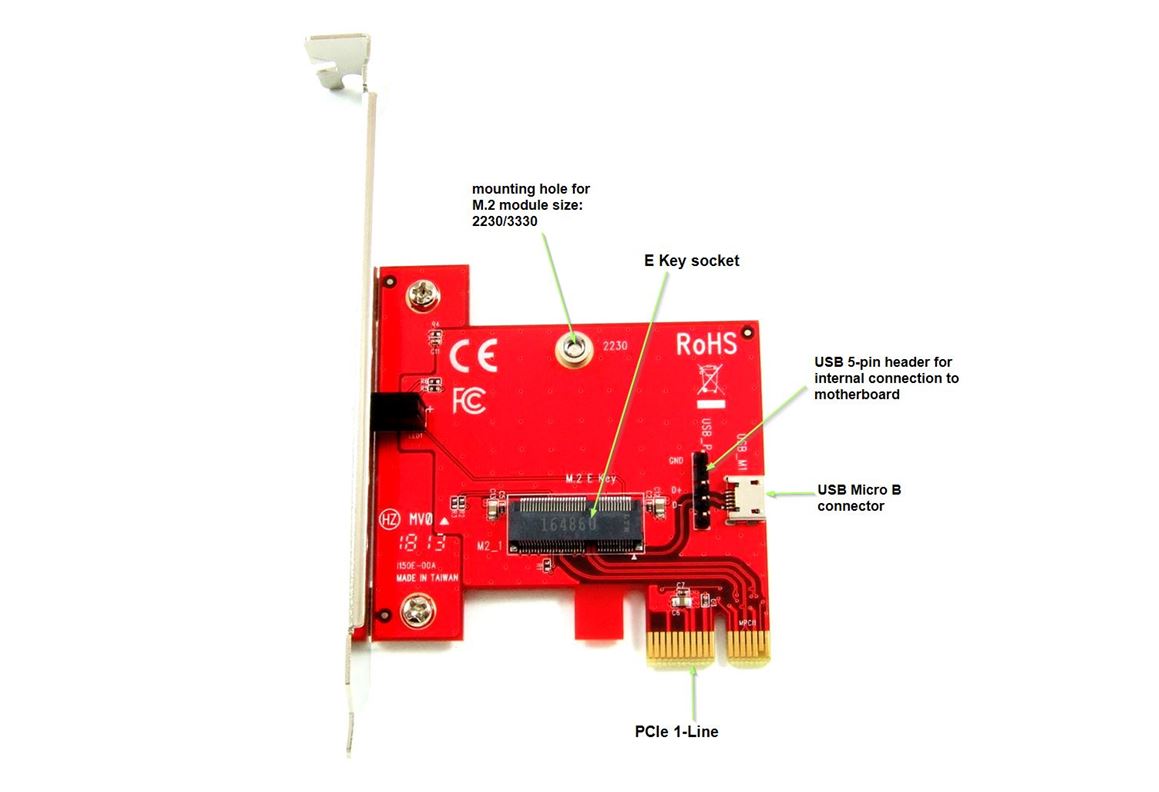

  • Connector:
    • 1x E-key (type 2230-D3-E) M.2 NGFF socket
    • 1x USB 2.0 Micro-B female
    • 1x USB 5-pin pin header (Pin Header assignment: 5V, D-, D+, NC, GND)



  • Software:
    • No driver installation is required.
    • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux



  • System Requirement:
    • An empty PCI Express socket
    • A USB 2.0 port



  • PCIe x1 lane adapter card
  • USB2.0 signal interface from main board USB port to M.2 E Key socket
  • Both USB micro-B connector and USB 5-Pin Pinheader for main board USB port connection
  • Support M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band WiFi / Bluetooth Wireless Module
  • Multiple plated-holes support M.2 type 2230 / 3030 module
  • 2x LEDs on board
  • Max 3x Antenna mounting
  • Low Profile PCIe Form Factor board "
  • Regular size PCIe bracket on board and Low Profile bracket included"
  • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
  • Supports industrial operating temperature range: -40 - 80 ºC
  • Fully RoHS compliant
  • Made in Taiwan

Note: Most M.2 WiFi modules use PCIe interface, Bluetooth modules use USB interface, and Dual Band Wireless Modules use both PCIe and USB interface.

Note: PEXM2150E does not support CNVi (CNVIo/CNVIo2) interface.



Package Contents

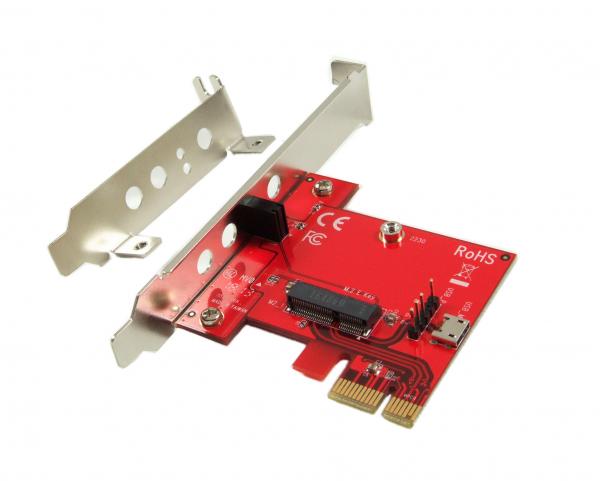

  • Ableconn PCIe adapter card with M.2 Key E socket
  • 1x low profile PCIe bracket
  • 1x mounting screw
  • 1 x 4-pin USB header cable


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   Does PEXM2150E support Intel Wireless-AC 9560?
Answer:

No. PEXM2150E doesn't work with Intel 9560. PEXM2150E is for M.2 modules using system interface type of Wi-Fi(PCIe) or BT(USB). The interface of Intel 9560 is CNVio instead of PCIe+USB.
