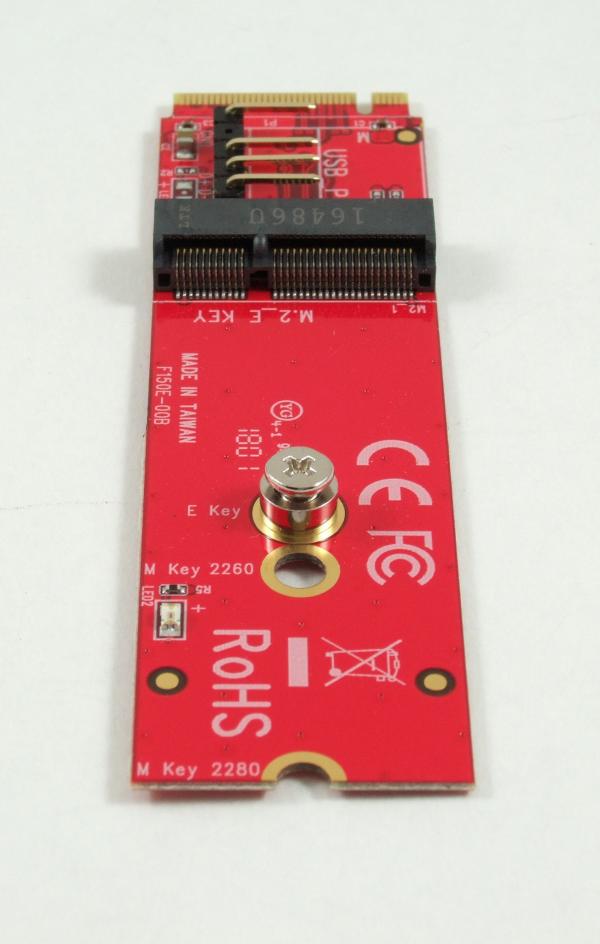

Ableconn M2MN-150E M.2 Converter Board for E Key M.2 Module - Install M2 E key Module to M Key Socket on Motherboard

Ableconn M2MN-150E M.2 Converter Board for E Key M.2 Module - Install M2 E key Module to M Key Socket on Motherboard

  • Product Specifications:

    • Dimensions 3.4 x 0.8 x 0.3 inches / 81 x 23 x 8 mm
    • Weight 0.2 ounces / 4 g
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Convert a M.2 E Key or A-E Key module (such as WiFi, Bluetooth, or Dual Band Wireless Module, etc.) to be used in a compuer with M Key M.2 Socket.
  • Support 1630/2230/3030 M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band Wireless Module
  • PCIe x1 and USB2.0 signal interface. Include a USB 5Pin-to-4Pin Cable for USB 2.0 signal from PC to USB 5pin header.
  • No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux.
  • Fully RoHS compliant. Made in Taiwan.



Product Description


The Ableconn M2MN-150E allows you to Install a M.2 E Key or A-E Key module such as WiFi, Bluetooth, or Dual Band Wireless Module, etc. to be used in a compuer with M Key Socket.


Features

  • Connector:
    • 1x E-key (type 2230-D3-E) M.2 socket on board
    • 1x M.2 (type 2280-D5-M M Key notch) 75-Pin Male



  • Software:
    • No driver installation is required.
    • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux



  • System Requirement:
    • One empty M.2 M key socket



  • Convert a M.2 E Key or A-E Key module (such as WiFi, Bluetooth, or Dual Band Wireless Module, etc.) to be used in a compuer with M Key Socket.
  • PCIe x1 and USB2.0 signal interface
  • Support 1630/2230/3030 M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band Wireless Module
  • Include a USB 5Pin-to-4Pin Cable for USB 2.0 signal from PC to USB 5pin header
  • Transparent to the operating system and no driver required
  • Support industrial operating temperature range: -40 - 80 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn M2MN-150E M.2 E Key Module to M Key Converter Board
  • 1x USB 5Pin-to-4Pin Cable
  • 1x mounting screw


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   Does M2MN-150E support Intel Wireless-AC 9560?
Answer:

No. M2MN-150E doesn't work with Intel 9560. M2MN-150E is for M.2 modules using system interface type of Wi-Fi(PCIe) or BT(USB). The interface of Intel 9560 is CNVio instead of PCIe+USB.
