Ableconn M2-NW107R M.2 Gigabit Ethernet Module ( Right Angle RJ-45 ) - GigaLAN 1000BASE-T PCIe x1 M.2 A-E Key

Ableconn M2-NW107R M.2 Gigabit Ethernet Module ( Right Angle RJ-45 ) - GigaLAN 1000BASE-T PCIe x1 M.2 A-E Key

  • Product Specifications:

    • Dimensions 2.4 x 0.9 x 0.7 inches / 61 x 23 x 19 mm
    • Weight 0.3 ounces / 8 g
    • Capacity Gigabit Ethernet; PCIe x1
    • Chipset Realtek RTL8168E
    • Supported System Drivers available for 32/64 bit Windows 10/8/7/Vista/XP, Server 2012/2008/2003 and MacOS 10.7-10.4
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Compact M.2 PCIe Gigabit Ethernet Card with RJ-45 connector on board.
  • M.2 NGFF type 2260-D5-A-E Dual A-E Key notch 75Pin 60mm Gigabit LAN module.
  • Support M.2 type 2230 and 2260 plated-holes.
  • Drivers available for 32/64 bit Windows 10, 8.1, 8, 2012, Win7, 2008, Vista, XP, 2003 and Mac OS X 10.4, 10.5, 10.6, 10.7.
  • Fully RoHS compliant. Made in Taiwan.



Product Description

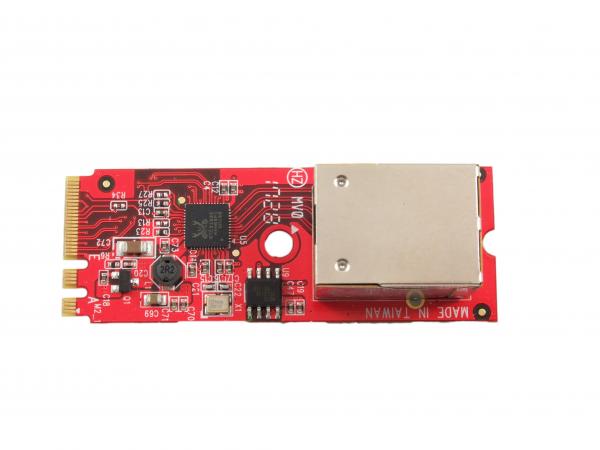

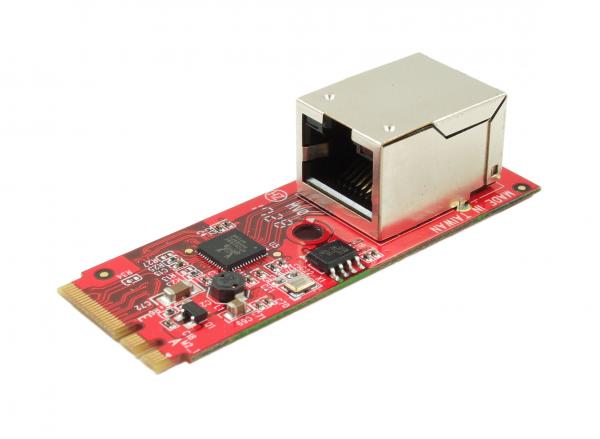

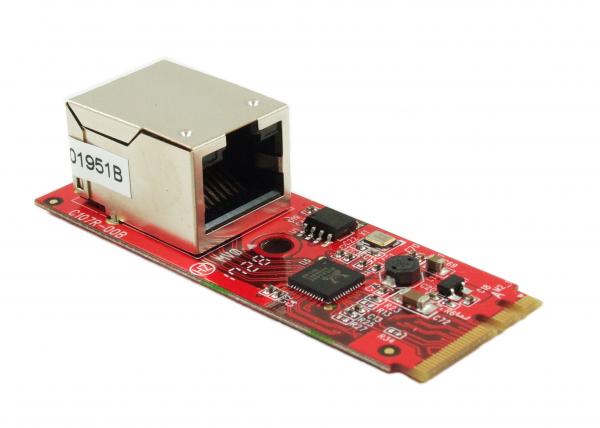

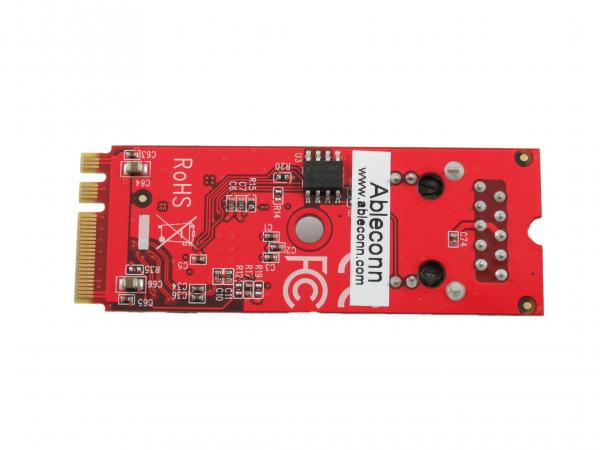

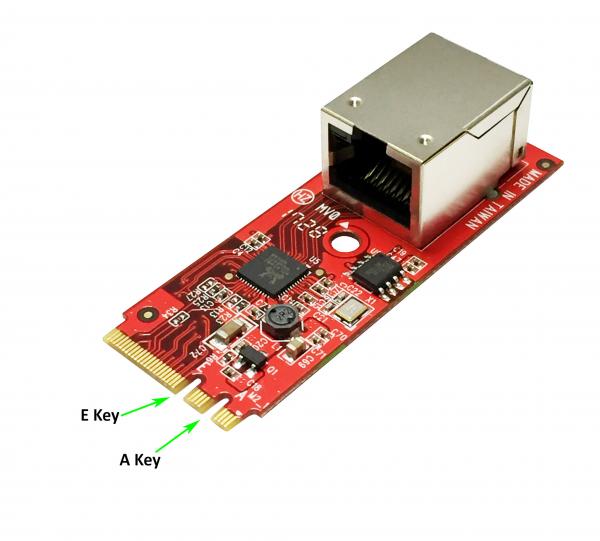

The Ableconn M2-NW107R allows you to add a PCIe x1 High-Speed 1000 /100 /10 Mbps BASE-T RJ-45 Ethernet Gigabit LAN through your IPC M.2 E Key or A Key slot.


Features



  • Connector:
    •  1x type 2260-D5-A-E Dual A-E Key notch M.2 75-pin Male
    •  1x RJ-45 Female



  • Chipset: Realtek RTL8168E
  • Software:
    •  Provides drivers for 32/64 bit Windows 10, 8.1, 8, 2012, Win7, 2008, Vista, XP, 2003 and Mac OS X 10.4, 10.5, 10.6, 10.7



  • Support M.2 type 2230 and 2260 plated-holes
  • Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
  • Compliant with PCI Express Specification, revision 1.0a
  • PCI Express x1-Lane host interface
  • RJ-45 Port offer high speed transmission over CAT 5 UTP cable
  • 2 LEDs indicate for various network activities (1000 and LNK/ACT)
  • Auto-Negotiation with Next page capability
  • Supports pair swap/polarity/skew correction
  • Crossover Detection & Auto-Correction
  • Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support
  • Supports Full Duplex flow control (IEEE 802.3x)
  • Supports IEEE 802.1Q VLAN tagging
  • Jumbo Frame sizes 9K bytes
  • Configurable 48KB deep Buffer support
  • Dimensions: 2.4 x 0.9 x 0.7 in / 61 x 23 x 19 mm
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn M.2 Gigabit Ethernet Module


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   Is M2-NW107R using PERST1? Can you send me the info on how to solder the wires for PERST0 pin on M2-NW107R?
Answer:

Yes, M2-NW107R is using PERST1 (pcie reset #1).
Both PERST0 and PERST1 are system reset pins, however, some platforms did not handle PERST1 and leaving it non-connected, which caused the M2-NW107R not being reset when powering up.
It may cause the card not to initialize or detected correctly if the motherboard does not implement PERST1. The M2-NW107R may not be seen by system with LSPCI command.

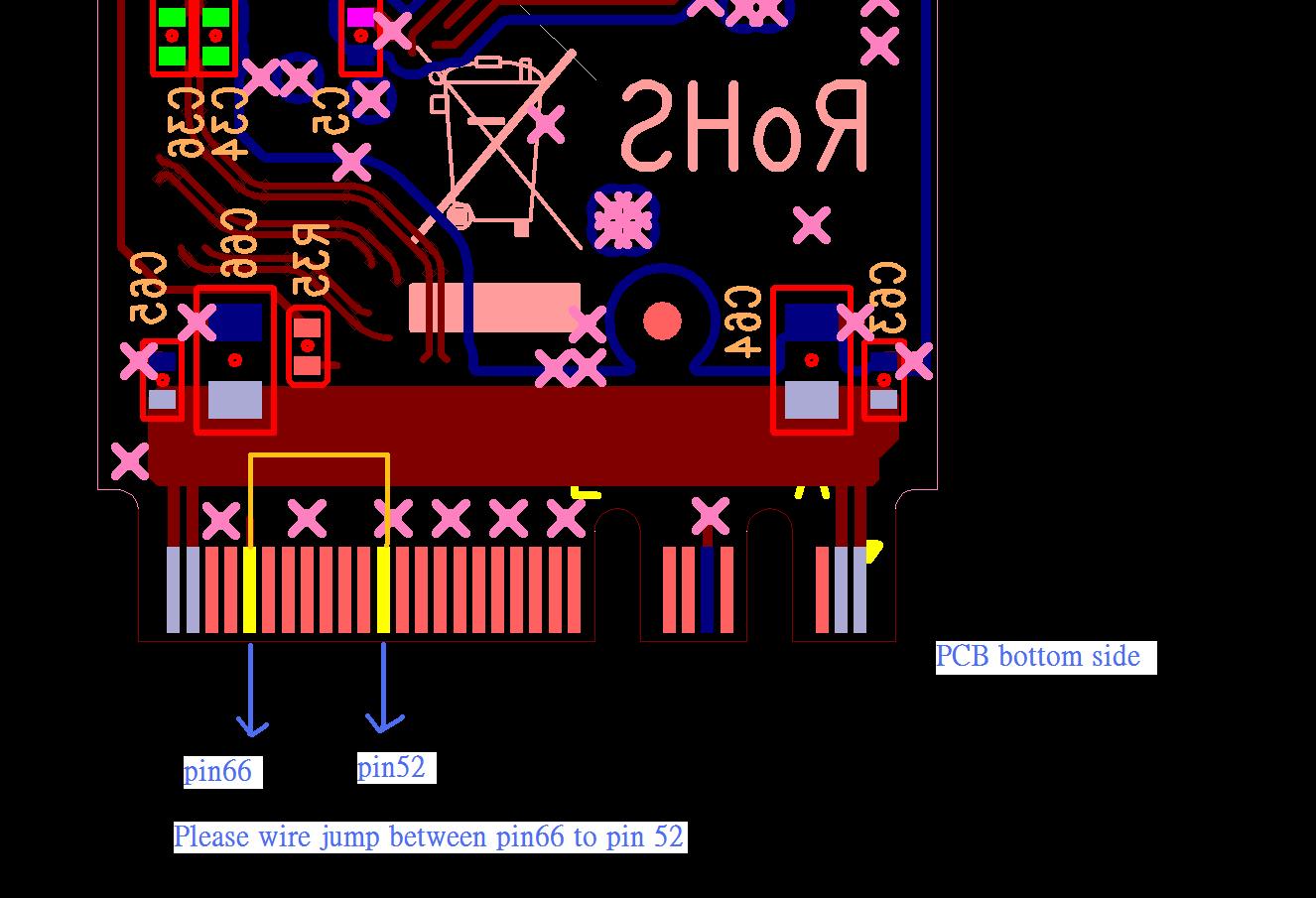

It works with some customers by soldering a jumper wire between pin 66 and 52 of m.2 connector. (rework diagram is below)
