Ableconn M2SD139PM M.2 B-M Key Module with Micro SD Socket - Support Micro SD 3.0 (SDXC) via Fast PCIe

Feature Bullets

Utilize up to 2TB Micro SD 3.0 (SDXC) Memory Card in Embedded Motherboard with M.2 A Key or E key Socket via fast PCIe signals
Supports M.2 type 2230 and 2242 plated-holes
PCBA size: 42mm x 22mm / 1.65" x 0.87"
Windows driver available
Fully RoHS compliant. Made in Taiwan.

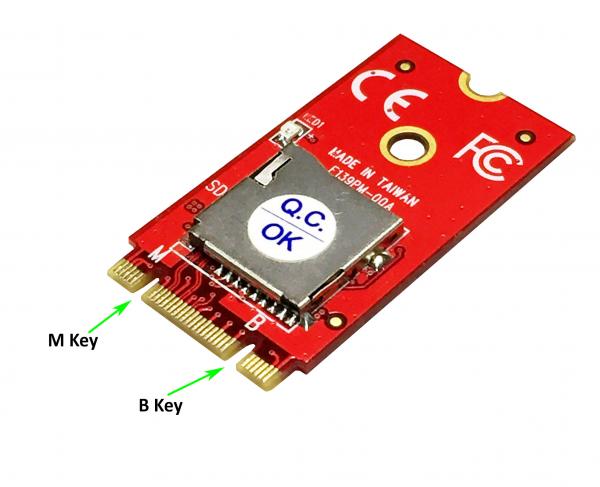

The Ableconn M2SD139PM allows you to Install a Micro SD to system via a M.2 B Key or M key socket using PCIe signals.

Connector:
- 1x Micro SD socket
- 1x Fast PCIe based M.2 (type 2242-D5-B-M Dual B-M Key notch) 75-Pin

Micro SD socket on board support up to 2TB Secure Digital Memory Card
Work with main board M.2 "B Key" and "M Key" Socket
Complies with Secure Digital Card (SD) specification up to ver. 3.0 (SDXC)
Supports SDR-104 / DDR 50.
Supports CPRM function.
1K bytes of ping-pong FIFO buffs the data transmission between transmitter and receiver
Supports M.2 type 2230 and 2242 plated-holes
Supports industrial operating temperature range: -40 - 80 ºC
PCBA size : 42mm x 22mm / 1.65" x 0.87"
Fully RoHS compliant
Made in Taiwan
