Ableconn PEX-SA134 4-Port eSATA III 6Gbps PCI Express Four Lanes Host Adapter Card - AHCI Port-Multiplier PCIe 2.0 x4 Controller Card

Ableconn PEX-SA134 4-Port eSATA III 6Gbps PCI Express Four Lanes Host Adapter Card - AHCI Port-Multiplier PCIe 2.0 x4 Controller Card

  • Product Specifications:

    • Dimensions 4.8 x 4.5 x 0.7 inches / 115 x 122 x 18 mm
    • Weight 2.5 ounces / 70 g
    • Capacity PCIe 2.0 x4 Lane; Up to 6 Gbps (SATA III)
    • Chipset ASMedia ASM1062
    • Supported System No driver installation is required. The AHCI drivers are natively built-in on Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • 6 Gbps eSATA III External PCIe Gen2 x4 Lanes High Performance Host Adapter. Supports PCIe 1.0, 2.0, and 3.0 motherboard.

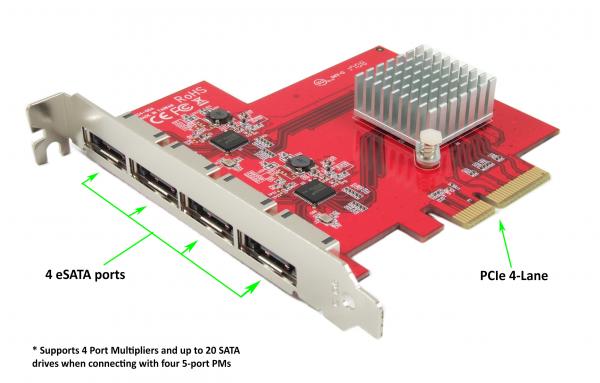

  • Supports four (4) SATA Port Multipliers and up to 20 SATA drives in total when connecting with four 5-port PMs.
  • No driver installation is required on Windows 10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems.
  • High quality. Fully RoHS compliant. Made in Taiwan.



Product Description

Add four external eSATA III ports that support Port Multipliers to your computer.


Specification

  • Connector:
    • 4 x eSATA (7 pin; Data) Female
    • PCI Express x4 Male



  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems



  • Data transfer rate:
    • Up to 6 Gbps
    • Total throughput up to 20 Gbps when installed into PCIe 2.0 or 3.0 x4 lanes slot



  • Number of Ports That Support Port Multiplier: 4
  • Number of Drives Supported Through Port Multiplier: 1 to 5
  • Number of Port Multipliers: 4



  • 6 Gbps eSATA III External PCIe Gen2 x4 lanes host adapter
  • Supports PCIe 1.0, 2.0, and 3.0 motherboard
  • Compliant with PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.2
  • Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports four (4) Port Multipliers with Command-based switching, resulting maximum 20 SATA drives in total when connecting with four 5-port PMs.
  • Supports SATA Hot-plug and Native Command Queuing (NCQ)
  • Require an empty PCIe x4 or x8 or x16 slot in computer
  • BIOS on board supports Windows and Linux OS booting
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn 4-Port eSATA 6G PCI Express Host Adapter Card
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
