Ableconn MPEX-M2WL M.2 WiFi & Bluetooth Module to miniPCIe Adapter - Support PCIe and USB Based M.2 E Key and A-E Key Module for Mini PCI Express

Ableconn MPEX-M2WL M.2 WiFi & Bluetooth Module to miniPCIe Adapter - Support PCIe and USB Based M.2 E Key and A-E Key Module for Mini PCI Express

  • Product Specification:

    • Dimensions 2.1 x 1.2 x 0.3 in / 55 x 30 x 8 mm
    • Weight 0.2 ounces / 4 g
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS
  • Buy at Amazon

Product Description

Feature Bullets

  • Convert a USB based or PCIe based M.2 wireless module to be used in an IPC mPCIe slot
  • Support M.2 E Key and A-E Key WiFi + Bluetooth Wireless Module.
  • Support M.2 wireless module that is USB base, PCIe base, or Dual USB+PCIe mode.
  • No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux.
  • Fully RoHS compliant. Made in Taiwan.


Product Description

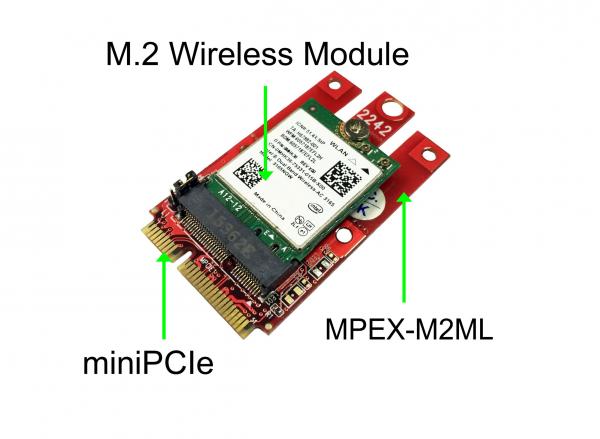

The Ableconn MPEX-M2WL allows you to Install Advanced USB or PCIe based, and WiFi + Bluetooth Dual Band M.2 E Key or A-E Key Wireless Module and become a Full-Mini or Half-Mini Mini PCIe Wireless Module for Industrial Computer.

Features

  • Connector:
    • 1x E-key (type 2230-D3-E) M.2 socket for M.2 PCIe and USB based Wireless Module
  • Software:
    • No driver installation is required.
    • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
  • System Requirement:
    • An empty mPCIe socket.
  • Convert a USB base or PCIe base M.2 wireless module to be used in an IPC mPCIe slot
  • Support both mPCIe Full-Mini and Half-Mini plated-hole
  • Support M.2 wireless module that is USB based, PCIe based, or Dual USB + PCIe mode
  • Support M.2 E Key and A-E Key WiFi + Bluetooth Wireless Module
  • Multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module
  • PCIe & USB2.0 signal interface between miniPCIe and M.2 socket
  • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux
  • Transparent to the operating system and no driver required
  • Supports industrial operating temperature range: -40 - 80 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn MPEX-M2WL PCIe and USB Based M.2 Wireless Module to miniPCIe Adapter


Warranty

  • Limited One-Year Warranty and Lifetime Product Support

Customer FAQ

Q 1 .   What is the J1 jumper for?
Answer:

The J1 jumper is for selecting PCIe Lane#0 or Lane#1. Keep jumper on default L0 position 2-3 (Lane#0), don’t change it to L1, unless special PCIe Lane#1 wireless module installed. Most Wireless modules use PCIe Lane#0.
