Ableconn ISAT-M2MS mSATA or M.2 NGFF SATA SSD to 2.5-Inch SATA Adapter with Aluminum Frame Bracket - Convert mSATA or M.2 SATA SSD to a 2.5" 7mm SATA Drive

Ableconn ISAT-M2MS mSATA or M.2 NGFF SATA SSD to 2.5-Inch SATA Adapter with Aluminum Frame Bracket - Convert mSATA or M.2 SATA SSD to a 2.5" 7mm SATA Drive

  • Product Specifications:

    • Dimensions 3.9 x 2.8 x 0.3 in / 100 x 70 x 7 mm
    • Weight 1.5 ounces / 40 g
    • Capacity Up to 6 GBps (SATA III)
    • Compatibility OS independent; No driver installation required
    • Supported System Windows, Macs, and Linux
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

The adapter can take M.2 SATA SSD in length of 42, 60, and 80 mm.





Feature Bullets

  • Convert either a mSATA SSD or a M.2 NGFF SATA SSD into a 2.5" SATA drive. Note: M.2 SSD will be taken if both M.2 & mSATA SSD are installed.
  • Open frame aluminum housing dessign providing excellent heat dissipation for mSATA or M.2 SATA SSD
  • Compatible with most mSATA and M.2 SATA solid state drives such as the SAMSUNG 840, 850 EVO M.2
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. High quality product. Made in Taiwan.



Product Description

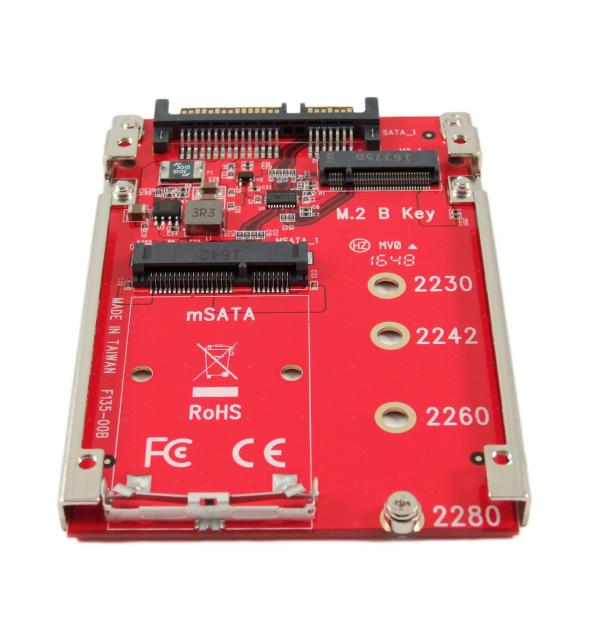

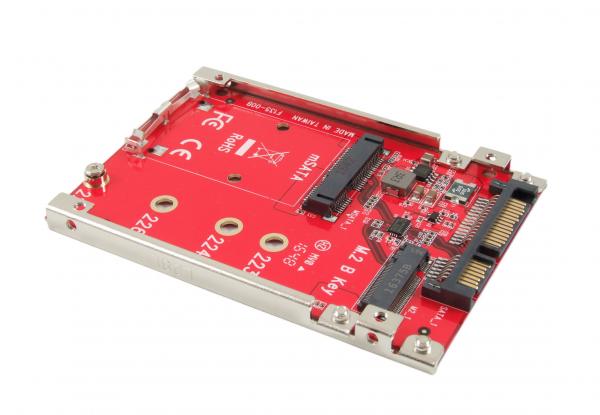

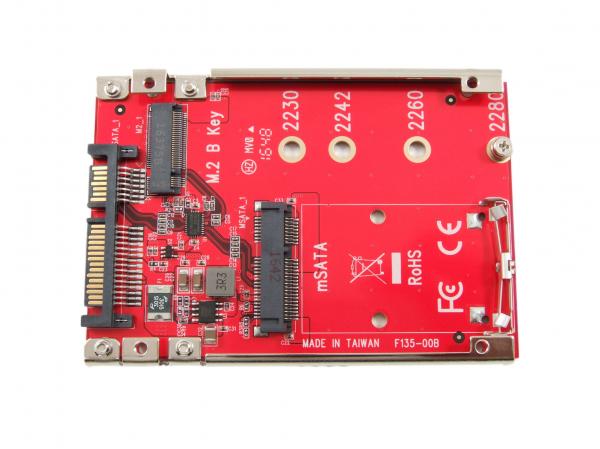

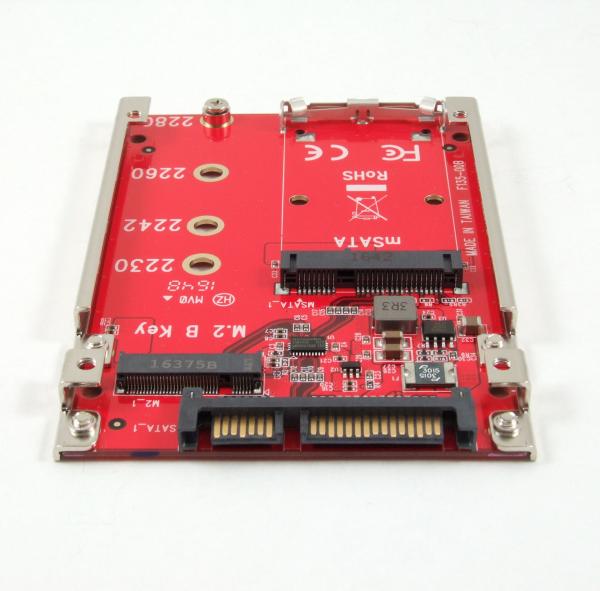

The Ableconn ISAT-M2MS let you convert a mSATA or a M.2 SATA SSD into a standard 2.5” SATA 6G (SATA III) capable drive. It provides excellient heat dissipation for mSAT or M.2 SATA SSD drive with the open aluminum frame design.

Specification

  • Connector:
    • 1 x mSATA (52-pin, Mini SATA) Receptale
    • 1x B-key (type 2280-D5-B) M.2 socket for M.2 NGFF SATA SSD
    • 1 x SATA Data & Power (7+15 pins) Receptale
  • Data transfer rate:
    • Up to 6 GBps (SATA III)
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux



  • Convert mSATA or M.2 NGFF SATA based SSD to standard 2.5” SATA drive Form Factor
  • Supports Full Size mSATA SSD or 6Gbps, 3Gbps SATA based M.2 NGFF 80mm, 60mm, 42mm, 30mm SSD
  • Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 SSD
  • Supports dual-sided M.2 SSD module 1.5mm component height on the top and bottom side
  • 100% Compatible with 2.5” SATA drive mechanical spec
  • 22 pin SATA (Signals and Power) male connector on board
  • mSATA or M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.
  • Includes 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
  • SSD & PCBA power from SATA 5V input
  • Provides Max 3.3V/4A power to SSD
  • Note: M.2 SSD will be active if both M.2 & mSATA SSD are installed.
  • Fully RoHS compliant
  • Made in Taiwan
